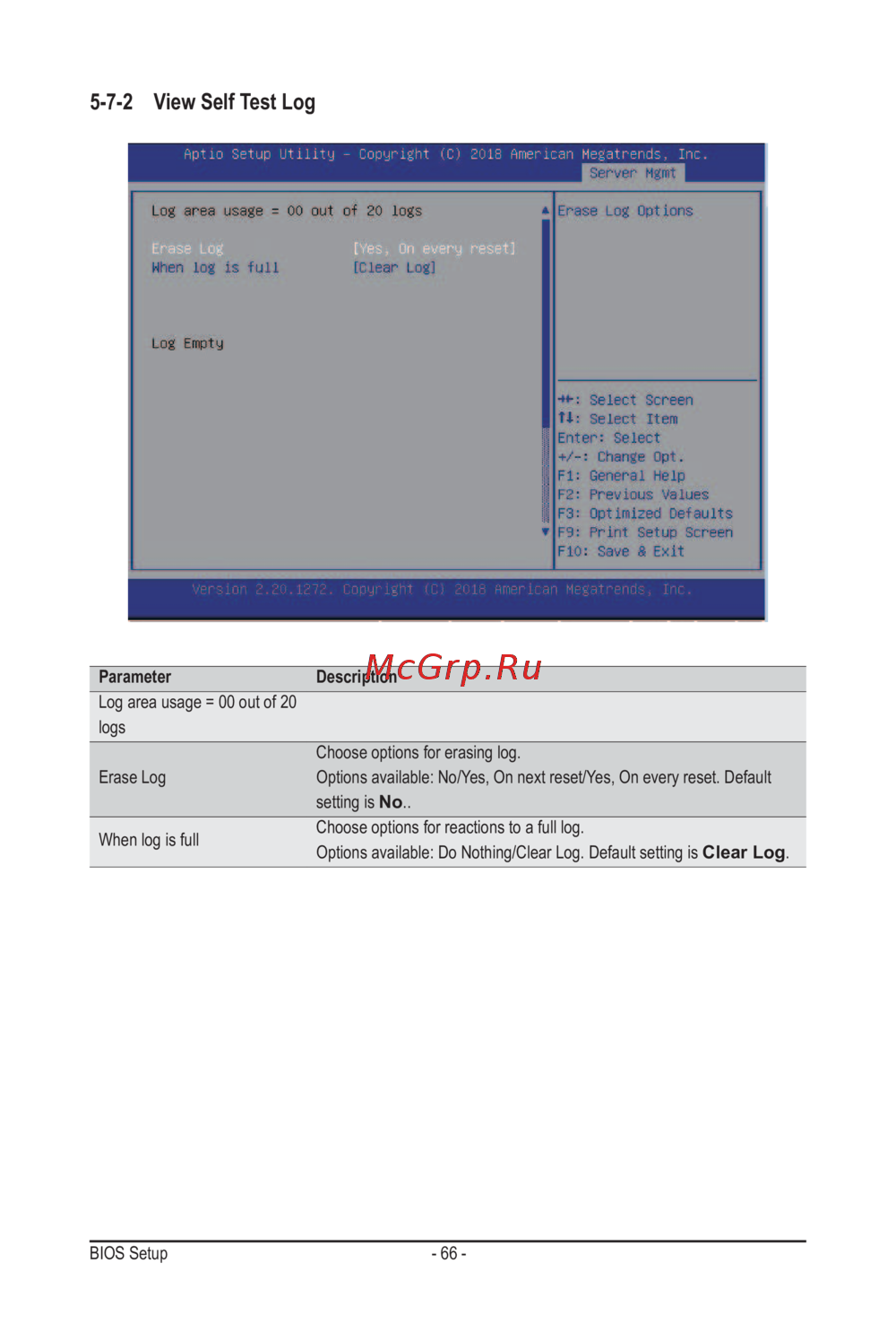

BIOS Setup - 66 -

5-7-2 View Self Test Log

Parameter Description

Log area usage = 00 out of 20

logs

Erase Log

Choose options for erasing log.

Options available: No/Yes, On next reset/Yes, On every reset. Default

setting is No..

When log is full

Choose options for reactions to a full log.

Options available: Do Nothing/Clear Log. Default setting is Clear Log.
