- 67 - BIOS Setup

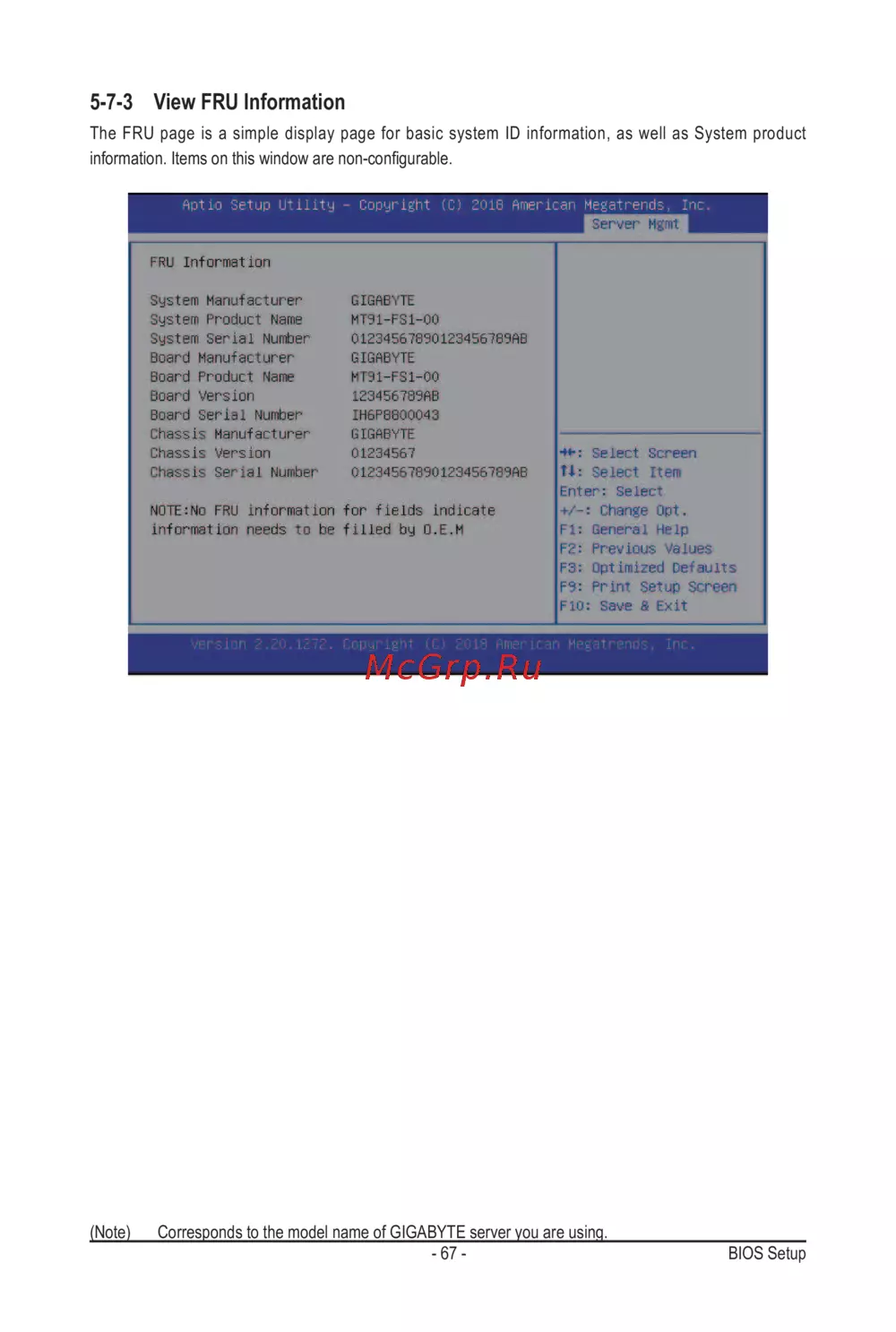

5-7-3 View FRU Information

The FRU page is a simple display page for basic system ID information, as well as System product

information. Items on this window are non-congurable.

(Note) Corresponds to the model name of GIGABYTE server you are using.
