ASRock Z68 Pro3 Gen3 Motherboard

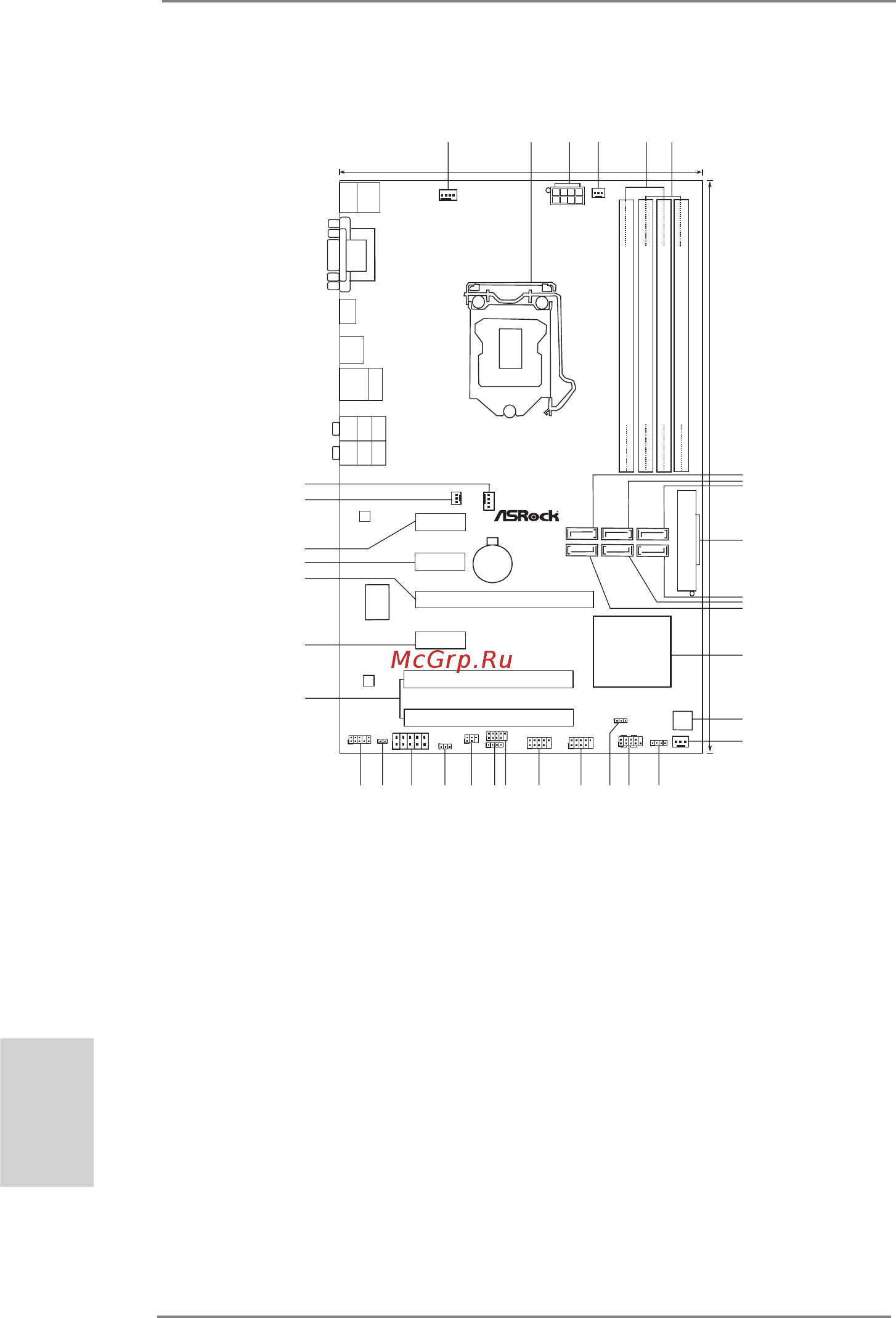

Motherboard Layout
English
1 CPU Fan Connector (CPU_FAN1) 19 Power LED Header (PLED1)
2 1155-Pin CPU Socket 20 USB 2.0 Header (USB6_7, Black)
3 ATX 12V Power Connector (ATX12V1) 21 USB 2.0 Header (USB8_9, Black)
4 Power Fan Connector (PWR_FAN1) 22 USB 2.0 Header (USB10_11, Black)
5 2 x 240-pin DDR3 DIMM Slots 23 Consumer Infrared Module Header
(Dual Channel: DDR3_A1, DDR3_B1, Black) (CIR1, Gray)
6 2 x 240-pin DDR3 DIMM Slots 24 Infrared Module Header (IR1)
(Dual Channel: DDR3_A2, DDR3_B2, Black) 25 Clear CMOS Jumper (CLRCMOS1)
7 SATA2 Connector (SATA2_5, Black) 26 COM Port Header (COM1)
8 SATA2 Connector (SATA2_3, Black) 27 HDMI_SPDIF Header
9 SATA3 Connector (SATA3_1, Gray) (HDMI_SPDIF1, Black)
10 ATX Power Connector (ATXPWR1) 28 Front Panel Audio Header
11 SATA3 Connector (SATA3_0, Gray) (HD_AUDIO1, Black)
12 SATA2 Connector (SATA2_2, Black) 29 PCI Slots (PCI1-2)
13 SATA2 Connector (SATA2_4, Black) 30 PCI Express 2.0 x1 Slot (PCIE4, Black)
14 Intel Z68 Chipset 31 PCI Express 3.0 x16 Slot (PCIE3, Black)
15 64Mb SPI Flash 32 PCI Express 2.0 x1 Slot (PCIE2, Black)
16 Chassis Fan Connector (CHA_FAN2) 33 PCI Express 2.0 x1 Slot (PCIE1, Black)
17 Chassis Speaker Header (SPEAKER 1, Black) 34 CPU Fan Connector (CPU_FAN2)
18 System Panel Header (PANEL1, Black) 35 Chassis Fan Connector (CHA_FAN1)
Intel
Z68
ATXPWR1
DDR3_A1 (64 bit, 240-pin module)
DDR3_A2 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
ATX12V1
PWR_FAN1
CMOS
Battery
DDR3 2133
Z68Pro3Gen3
PCIE3
PCIE1
PCIE2
PCIE4
PCI1
PCI2
SATA3 6Gb/s
30.5cm (12.0 in)
19.1cm (7.5 in)
Super
I/O
64Mb
BIOS
PCI Express 3.0
RoHS
USB 3.0
ErP/EuP Ready
Designed in Taipei
HDMI 1.4a
LAN
PHY
AUDIO
CODEC
1
HDMI_SPDIF1
1
HD_AUDIO1
COM1
1
CLRCMOS1
1
IR1
1
USB10_11
CIR1
1
USB8_9
1
1
USB6_7
1
HDLED RESET
PLED PWRBTN
PANEL1
1
PLED1
1
SPEAKER1
1
CHA_FAN2
CHA_FAN1
CPU_FAN2
CPU_FAN1
SATA2_5 SATA2_3
SATA3_1
SATA2_4 SATA2_2
SATA3_0
USB 2.0
T:USB0
B: USB1
PS2
Keyboard
VGA1
DVI_CON1
HDMI1
USB 3.0
T: U SB 2
B: USB3
Top:
RJ-45
USB 2.0
T:USB4
B: USB5
Top:
CTR BASS
Center:
REAR SPK
Bottom:
Optical
SPDIF
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
X
Fast USB
X
Fast LAN
1
2
3
4
5
6
7
11
12
13
14
8
9
10
16
15
17
18
24
19
20
21
22
232526
27
28
29
30
31
32
33
34
35
