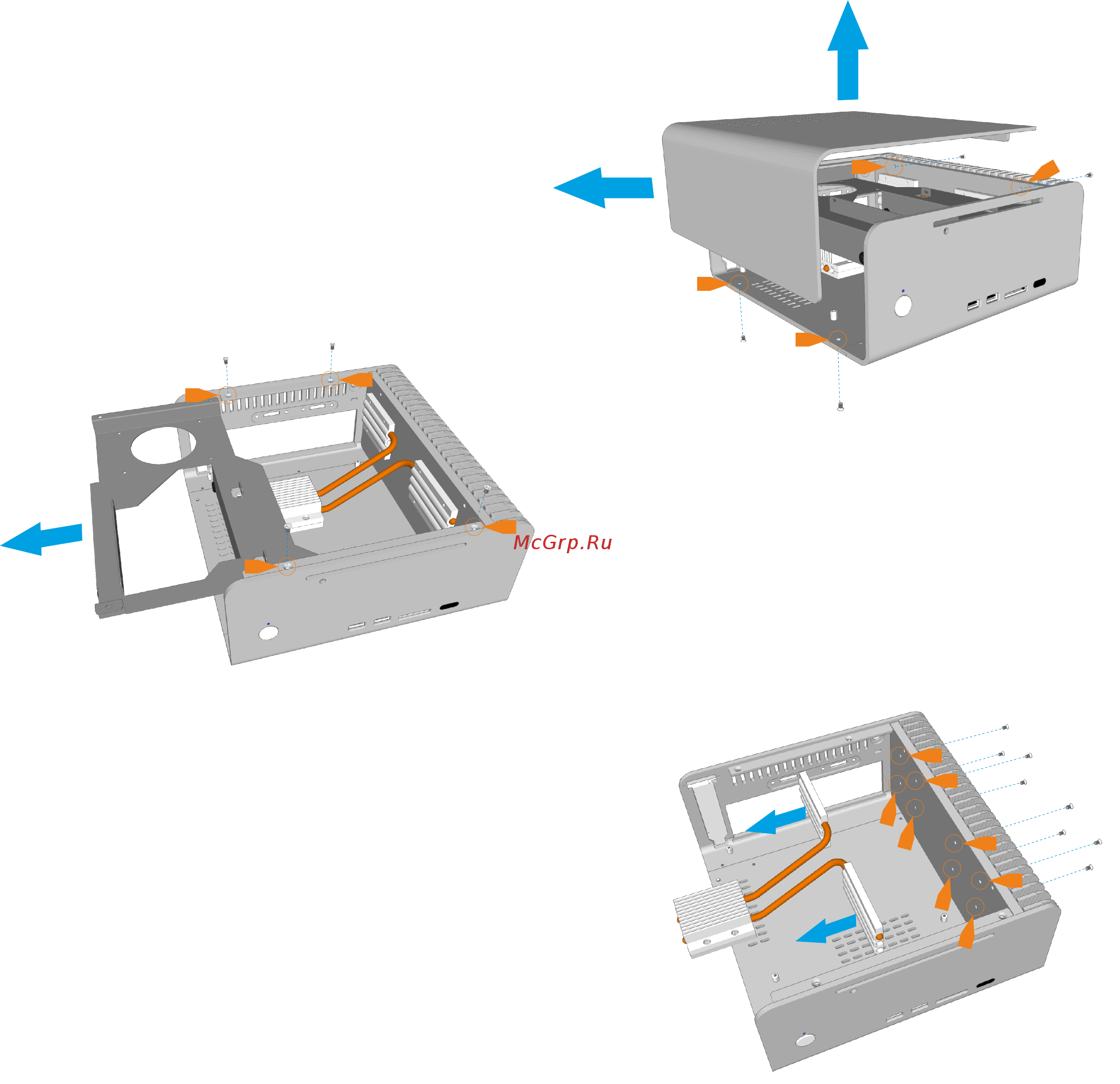

Removing the Top Panel

The top panel is held in place with 4 screws, 2 at

the bottom and 2 at the side. The side screws are

accessed between the gaps of the heatsink fins.

Remove the screws and slide the top panel away

from the chassis

Removing the HDD/ODD Cage

The HDD/ODD cage is held in place by 4 screws

which are all accessible from the top as shown.

Once all 4 screws are removed, slide the cage

out of the chassis.

Removing the CPU Cooler

The heat pipes are connected to the chassis

using 2 connector blocks which are held in place

with a total of 8 screws (4 for each block).

Unscrew all 8 screws which are accessible via

the gaps in between the heatsink fins.

P4 - PREPARING FOR ASSEMBLY
