WAVEFORM DISPLAY
O
ne of the most prominent features of the Torq LE user interface is the
Scrolling Waveform Display, which takes up a decent amount of real estate
above the Mixer and Effect Racks. Unlike the smaller Overview Waveforms found in
each Deck, the Scrolling Waveforms only show a few seconds of the current song
before and after the current play position. The song in Deck A (on the left) is shown
at the top of the Scrolling Waveform display. Deck B (on the right) is shown at the
bottom of the window. While the Now Line moves from left to right within the smaller
Overview Waveform Display as a Deck plays, the Now Line remains fixed in the
Scrolling Waveform window while the waveforms move behind it.
Information Shown on Display
So what purpose do these Scrolling Waveforms serve, other than looking really cool?
Answer: They offer you a way to visualize the alignment and synchronization of the
two Decks as well as providing some other important information:
Waveform
By looking at the audio waveform itself, you can see where the beats are in the
song. These sharp hits (transients) typically look like long, thin spikes in the

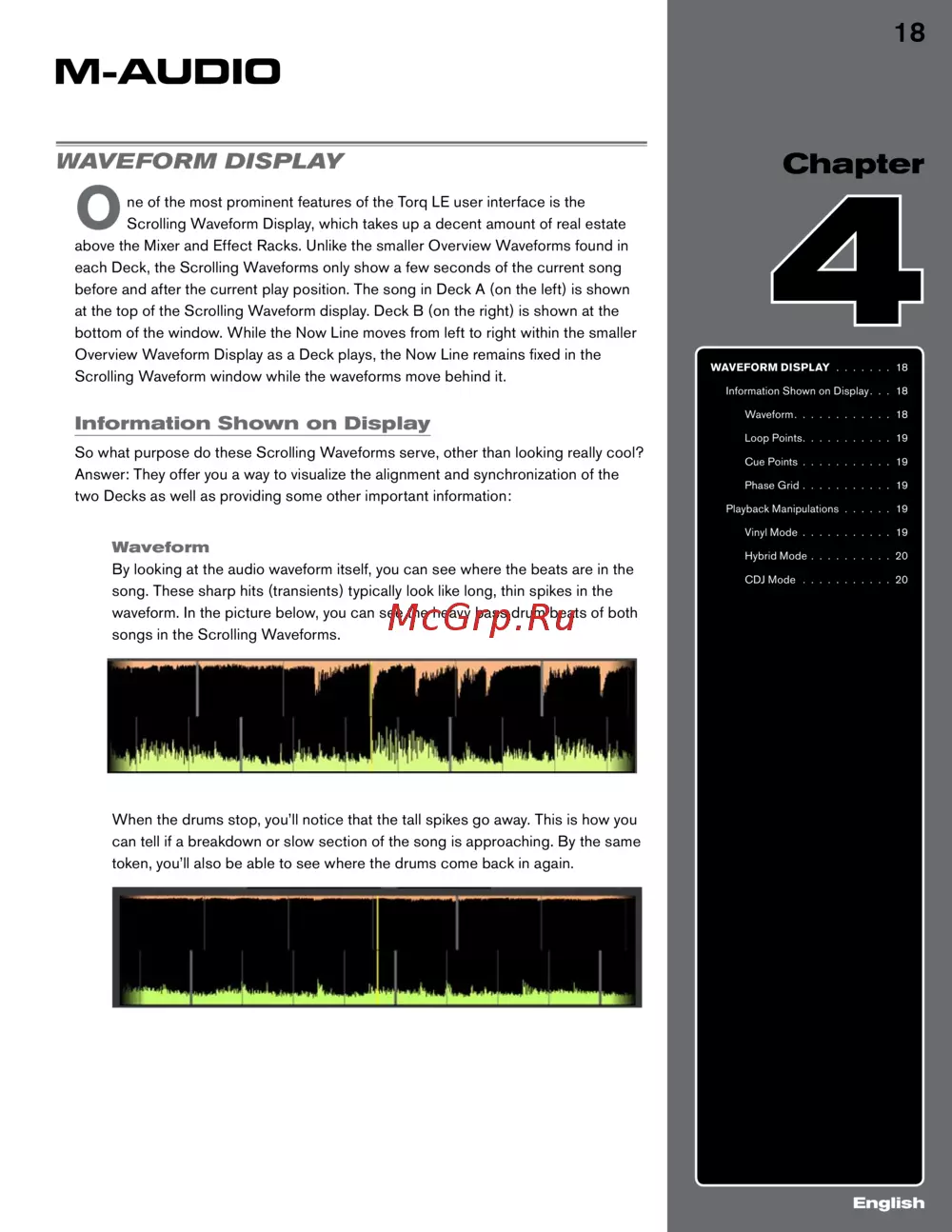

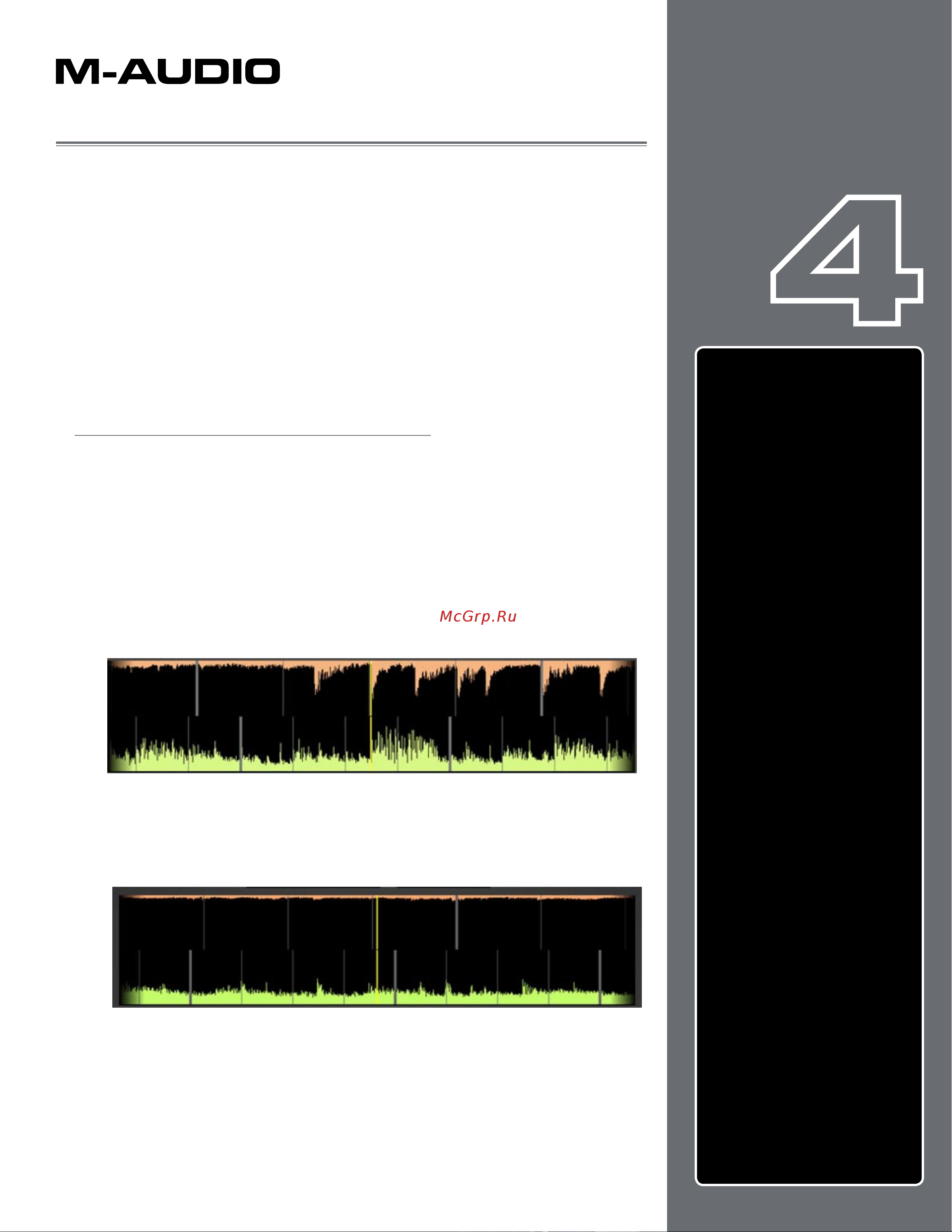

waveform. In the picture below, you can see the heavy bass drum beats of both
songs in the Scrolling Waveforms.
When the drums stop, you’ll notice that the tall spikes go away. This is how you
can tell if a breakdown or slow section of the song is approaching. By the same
token, you’ll also be able to see where the drums come back in again.
