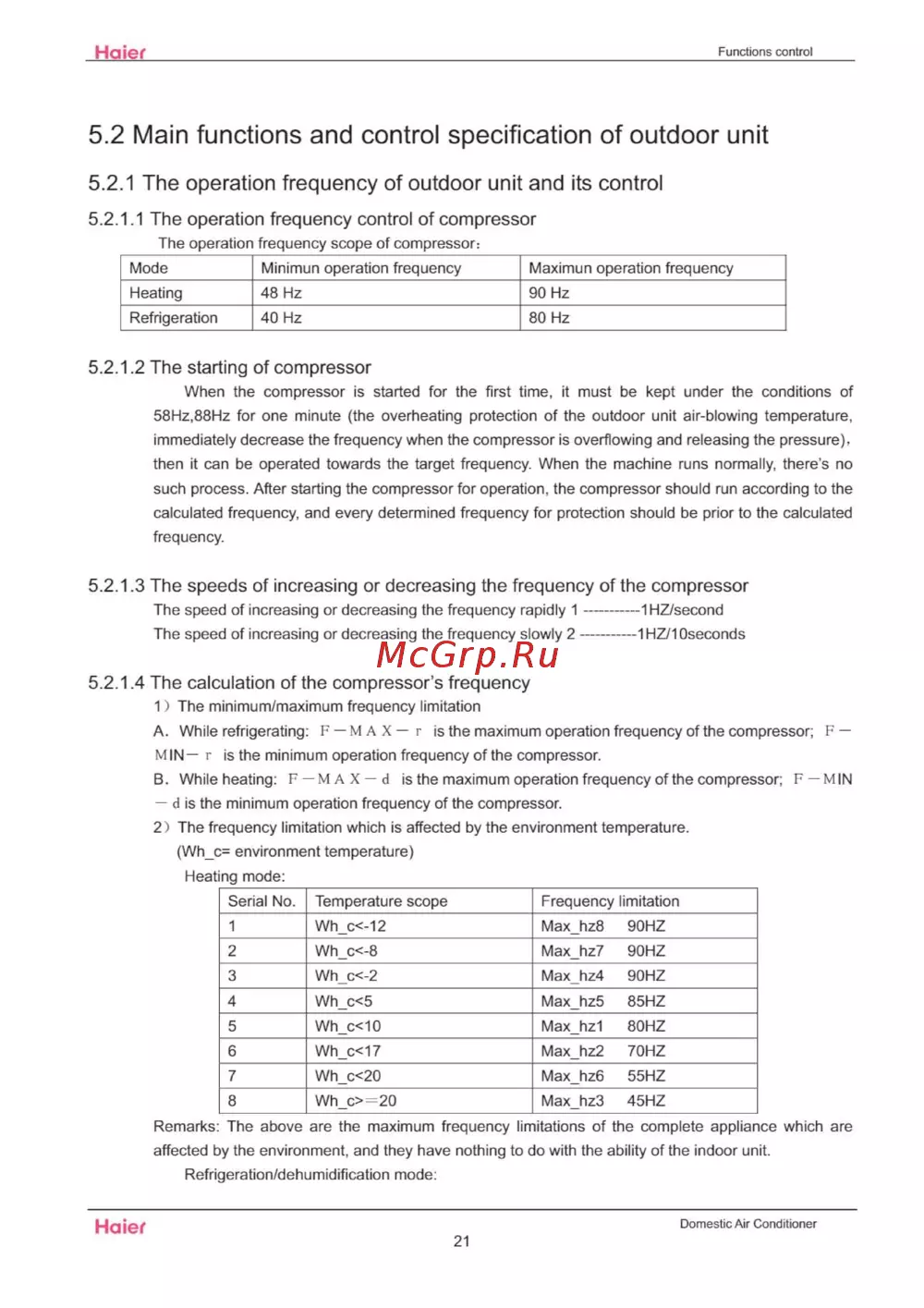

Haier Functions control 5 2 Main functions and control specification of outdoor unit 5 2 1 The operation frequency of outdoor unit and its control 5 2 1 1 The operation frequency control of compressor The operation frequency scope of compressor Mode Minimun operation frequency Maximun operation frequency Heating 48 Hz 90 Hz Refrigeration 40 Hz 80 Hz 5 2 1 2 The starting of compressor When the compressor is started for the first time it must be kept under the conditions of 58Hz 88Hz for one minute the overheating protection of the outdoor unit air blowing temperature immediately decrease the frequency when the compressor is overflowing and releasing the pressure then it can be operated towards the target frequency When the machine runs normally there s no such process After starting the compressor for operation the compressor should run according to the calculated frequency and every determined frequency for protection should be prior to the calculated frequency 5 2 1 3 The speeds of increasing or decreasing the frequency of the compressor The speed of increasing or decreasing the frequency rapidly 1 1 HZ second The speed of increasing or decreasing the frequency slowly 2 1HZ 10seconds 5 2 1 4 The calculation of the compressor s frequency 1 The minimum maximum frequency limitation A While refrigerating F MAX r is the maximum operation frequency of the compressor F MIN r is the minimum operation frequency of the compressor B While heating F MAX d is the maximum operation frequency of the compressor F MIN d is the minimum operation frequency of the compressor 2 The frequency limitation which is affected by the environment temperature Wh_c environment temperature Heating mode Serial No Temperature scope Frequency limitation 1 Wh_c 12 Max_hz8 90HZ 2 Wh_c 8 Max_hz7 90HZ 3 Wh_c 2 Max_hz4 90HZ 4 Wh_c 5 Max_hz5 85HZ 5 Wh_c 10 Maxhzl 80HZ 6 Wh_c 17 Max_hz2 70HZ 7 Wh_c 20 Max_hz6 55HZ 8 Wh_c 20 Max_hz3 45HZ Remarks The above are the maximum frequency limitations of the complete appliance which are affected by the environment and they have nothing to do with the ability of the indoor unit Refrigeration dehumidification mode Haier Domestic Air Conditioner 21
