Haier AS09SH1ERA [26/109] The outdoor fan control when refrigerating or dehumidifying

Содержание

• Service manaul p.1
• Dc inverter free match s series p.1
• Wall mounted type p.1
• Model no as09 12sh1era p.1
• U09 12eh1 era p.1
• Table of contents p.2
• Safety cautions p.4
• Model name explanation p.4
• Introduction p.4
• Warning p.5
• Domestic air conditioner p.5
• Caution in repair p.5
• Introduction p.5
• Warning p.6
• Introduction p.6
• Domestic air conditioner p.6
• Cautions regarding products after repair p.6
• Warning p.7
• Caution p.7
• Introduction p.7
• Inspection after repair p.7
• Domestic air conditioner p.7
• Reference p.8
• Introduction p.8
• Icon type of information description p.8
• Domestic air conditioner p.8
• Caution p.8
• Î caution caution p.8
• Warning warning p.8
• Using icons list p.8
• Using icons p.8
• T note note p.8
• List of fuctions p.9
• Specifications p.10
• Domestic air conditioner p.10
• As09sh1era 1u09eh1 era as12sh1era 1u12eh1era p.10
• Conversion formulae p.11
• U09eh1era 1u12eh1era p.11
• The data are based on the conditions shown in the table below p.11
• Specifications p.11
• Snb130fgym2 snb130fgym2 p.11
• Domestic air conditioner p.11
• Cooling heating piping length p.11
• W 52 52 p.11
• Indoor unit connectors p.12
• Outdoor unit p.13
• Connectors p.13
• Lo о o p.15
• Main functions and control specification of indoor unit p.16
• Funcitions and control p.16
• Dehumidifying mode p.16
• Cooling operation mode p.16
• Automatic operation p.16
• Heating operation mode p.17
• Timing p.18
• Strength operation p.18
• Mute operation p.18
• Dormant operation p.18
• Air refreshing p.18
• Urgent on off input p.19
• Low load protection control p.19
• High load protection control p.19
• Abnormal operation of indoor system p.19
• Malfunction list resume p.20
• Single indoor system operation p.20
• Power cut compensation p.20
• Fixed frequency operation p.20
• Abnormality confirmation approaches p.20
• Time cutting function p.21
• Test program p.21
• Ifp optional function p.22
• Temp display p.23
• Degree heating maintaining p.23
• The calculation of the compressor s frequency p.24
• Main functions and control specification of outdoor unit p.24
• The starting of compressor p.24
• The speeds of increasing or decreasing the frequency of the compressor p.24
• The operation frequency of outdoor unit and its control p.24
• The operation frequency control of compressor p.24
• The outdoor fan control when refrigerating or dehumidifying p.26
• The outdoor fan control when heating p.26
• The outdoor fan control exchange fan p.26
• The control of the outdoor electronic expansion valve eev p.26
• Ttc high temperature preventing protection p.27
• Tc high temperature preventing control of the indoor heating unit p.27
• Protection function p.27
• Four way control p.27
• The protection function of ac current p.28
• The control of preventing the over current of the compressor p.28
• Anti freezing protection of the indoor heat exchanger p.28
• Temperature protection of the outdoor refrigerating coil p.29
• The frequency limitation of modification rate p.29
• Function of main thermistor p.30
• B exhaust temperature sensor c indoor heat exchange sensor p.30
• A outdoor suction temperature sensor p.30
• Value of thermistor 5 intdoor unit p.31
• Room sensor and pipe sensor p.31
• R25 c 10kq 3 b25 c 50 c 3700k 3 p.31
• Haier ____________ p.31
• R25 c 10kq 3 p.34
• Outdoor unit p.34
• B25 c 50 c 3700k 3 p.34
• Ambient sensor suction sensor defrosting sensor p.34
• Function control p.35
• Domestic air conditioner p.35
• Function control p.36
• Domestic air conditioner p.36
• Function control p.37
• Domestic air conditioner p.37
• Function and control p.38
• Domestic air conditioner p.38
• Discharging sensor p.38
• C 50kq 3 p.38
• 80 c 4450к 3 p.38
• Function and control p.39
• Domestic air conditioner p.39
• Function and control p.40
• Domestic air conditioner p.40
• Function and control p.41
• Domestic air conditioner p.41
• System configuration p.42
• Instruction p.42
• Indoor unit p.43
• Remote controller p.43
• Parts and functions p.43
• Outdoor unit p.43
• Operation p.44
• Loading of the battery p.44
• Clock set p.44
• Smart operation cool heat and dry operation p.45
• Operation p.45
• Select tempsetting fan operation swing operation p.46
• Operation p.46
• The cancel of p.47
• Press health button p.47
• Operation p.47
• Notice p.47
• Health operation health airflow operation p.47
• Health airflow function p.47
• The setting of p.47
• The health airflow function p.47
• Power soft operation timer operation p.48
• Operation p.48
• Operation p.49
• Comfortable sleep p.49
• Operation p.50
• Operation p.51
• Fresh operation emergency operation and test operation p.51
• For smart use of the air conditioner p.51
• Cautions p.52
• A warning p.52
• A caution p.52
• Trouble shooting p.53
• Cautions p.53
• Before asking for service check the following first p.53
• Symptom check item details of measure p.54
• Service diagnosis p.54
• Problem symptoms and measures p.54
• Caution for diagnosis p.54
• Error codes and description p.55
• Thermistor or related abnormality p.56
• Indoor ac fan motor malfunction p.57
• Indoor dc fan motor malfunction p.59
• How to check fan motor dc p.59
• Outdoor dc fan motor fault p.61
• Ipm protection p.62
• The communication fault between ipm and outdoor pcb p.64
• Be sure to turn off power switch before connect or disconnect connector or p.65
• Malfunction p.65
• Conditions p.65
• Else parts damage may be caused p.65
• Electronic expansion valve defective p.65
• Detection p.65
• Troubleshooting p.65
• Overheat protection for discharge temperature p.65
• Method of p.65
• Faulty thermistor p.65
• Faulty pcb p.65
• Malfunction p.66
• Faulty pcb p.66
• Faulty eeprom data p.66
• Faulty eeprom p.66
• Else parts damage may be caused p.66
• Eeprom abnormal p.66
• Detection p.66
• Conditions p.66
• Be sure to turn off power switch before connect or disconnect connector or p.66
• Troubleshooting p.66
• Method of p.66
• Communication error between the indoor and outdoor units p.67
• An abnormal voltage rise or fall is detected by specified voltage checking p.69
• Troubleshooting be p.69
• To turn off power switch before connect or disconnect connector or p.69
• Supply voltage not as specified p.69
• Power supply over or under voltage fault p.69
• Microcomputer p.69
• Method of p.69
• Malfunction p.69
• Detection circuit p.69
• Detection p.69
• Conditions p.69
• An voltage signal is feedback from the voltage detection circuit to the p.69
• Loop of the station detect error p.70
• Over current of the compressor p.71
• High work intense protection p.72
• Mismatching between indoor and outdoor units p.73
• Short of refrigerant p.74
• Method of p.75
• Malfunction p.75
• High work intense protection p.75
• Detection p.75
• Conditions p.75
• Preparation p.77
• Installation manual of room air conditioner p.77
• Installation p.77
• Drawing for the installation of indoor and outdoor units p.77
• Domestic air conditioner p.77
• Domestic air conditioner p.78
• When the mounting plate is fixed side bar and lintel о connecting the indoor outdoor electric cable p.78
• When the mounting plate is first fixed p.78
• Accessory parts p.78
• When connecting the cable after installing the indoor unit p.78
• Unloading of indoor unit body p.78
• Selection of pipe p.78
• Removing the wiring cover p.78
• Rear piping p.78
• Other direction piping p.78
• Making a hole on the wall and fitting the piping hole cover p.78
• Left left rear piping p.78
• Installation of the indoor unit p.78
• Installation p.78
• Indoor unit p.78
• Fixing the indoor unit body p.78
• Fitting of the mounting plate and positioning of the wall hole p.78
• Drawing of pipe p.78
• Purging method to use vacuum pump p.79
• Outdoor unit p.79
• Installation of outdoor unit p.79
• Installation p.79
• Domestic air conditioner p.79
• Connection of pipes p.79
• Connection p.79
• Attaching drain elbow optional p.79
• Caution p.80
• Removal procedure p.81
• Removal of front panel p.81
• Indoor unit p.81
• Removal of filter and blade p.83
• Removal of front grill p.84
• Removal of drain pan p.86
• Removal of display assembly p.87
• Removal of vertical blades and swing motor p.88
• Removal of electrical box p.89
• Removal of heat exchanger p.90
• Removal of fan rotor and fan motor p.92
• Removal procedure p.93
• Removal of outdoor panel p.93
• Outdoor unit p.93
• Domestic air conditioner p.93
• Loosen the screws of the panel p.95
• Removal of electrical box p.96
• Removal of fan and fan motor p.97
• Removal of fan motor bracket and partition p.98
• Removal procedure p.99
• Domestic air conditioner p.99
• Removal of compressor and heat exchange p.100
• Fil il m p.101
• В1им11111 p.101
• Piping diagrams p.102
• Heating mode p.102
• Cooling mode p.102
• Appendix p.102
• Outdoor wtrtng diagram p.104
• Outdoor unit 01 p.104
• Control board circuit diagrams p.105
• Control board circuit diagrams p.106
• Module board circuit diagram p.108
• Sincere forever p.109
• Haier group p.109

Похожие устройства

•
  Haier HME 09 TW03

  Инструкция по эксплуатации
•
  Haier HME 09 AW03

  Инструкция по эксплуатации
•
  Haier HSE 20 TW03

  Инструкция по эксплуатации
•
  Haier HSE 20 AW03

  Инструкция по эксплуатации
•
  Haier HSE 17 TW03

  Инструкция по эксплуатации
•
  Haier HSE 17 AW03

  Инструкция по эксплуатации
•
  Haier HSE 16 TW03

  Инструкция по эксплуатации
•
  Haier HSE 16 AW03

  Инструкция по эксплуатации
•
  Haier HSE 12 TW03

  Инструкция по эксплуатации
•
  Haier HSE 12 TD03

  Инструкция по эксплуатации
•
  Haier HSE 12 AH03

  Инструкция по эксплуатации
•
  Haier HSE 9 TW03

  Инструкция по эксплуатации

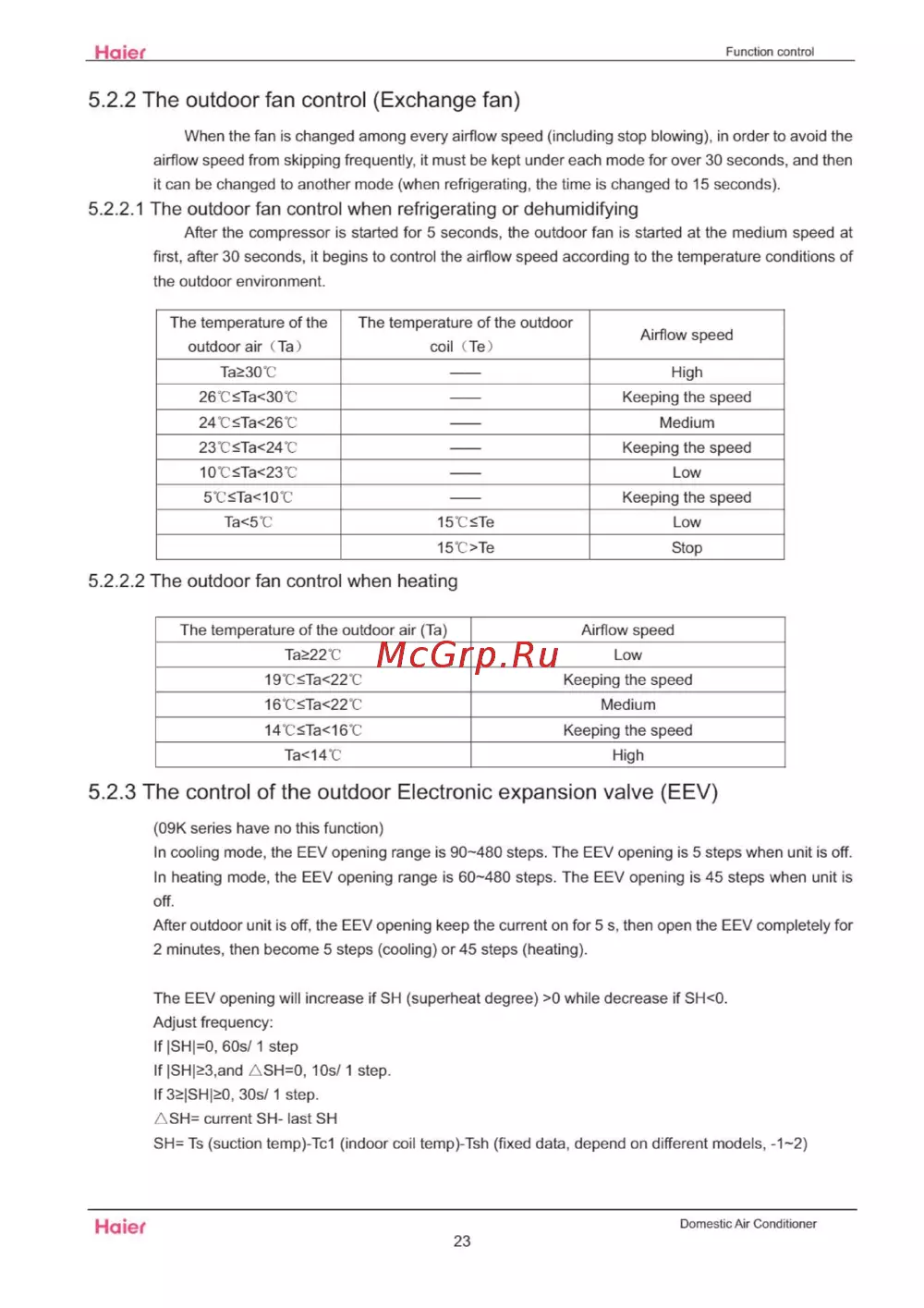

Haier Function control 5 2 2 The outdoor fan control Exchange fan When the fan is changed among every airflow speed including stop blowing in order to avoid the airflow speed from skipping frequently it must be kept under each mode for over 30 seconds and then it can be changed to another mode when refrigerating the time is changed to 15 seconds 5 2 2 1 The outdoor fan control when refrigerating or dehumidifying After the compressor is started for 5 seconds the outdoor fan is started at the medium speed at first after 30 seconds it begins to control the airflow speed according to the temperature conditions of the outdoor environment The temperature of the The temperature of the outdoor Airflow speed outdoor air Ta coil Te Ta 30 C High 26 C Ta 30 C Keeping the speed 24 C Ta 26 C Medium 23 C Ta 24 C Keeping the speed 10 C Ta 23C Low 5 C Ta 10 C Keeping the speed Ta 5 C 15 C Te Low 15 C Te Stop 5 2 2 2 The outdoor fan control when heating The temperature of the outdoor air Ta Airflow speed Ta 22 C Low 19 C Ta 22 C Keeping the speed 16 C Ta 22 C Medium 14 C Ta 16 C Keeping the speed Ta 14 C High 5 2 3 The control of the outdoor Electronic expansion valve EEV 09K series have no this function In cooling mode the EEV opening range is 90 480 steps The EEV opening is 5 steps when unit is off In heating mode the EEV opening range is 60 480 steps The EEV opening is 45 steps when unit is off After outdoor unit is off the EEV opening keep the current on for 5 s then open the EEV completely for 2 minutes then become 5 steps cooling or 45 steps heating The EEV opening will increase if SH superheat degree 0 while decrease if SH 0 Adjust frequency If SH 0 60s 1 step If SH 3 and ASH 0 10s 1 step If 3 SH 0 30s 1 step SH current SH last SH SH Ts suction temp Tc1 indoor coil temp Tsh fixed data depend on different models 1 2 Haier Domestic Air Conditioner 23
