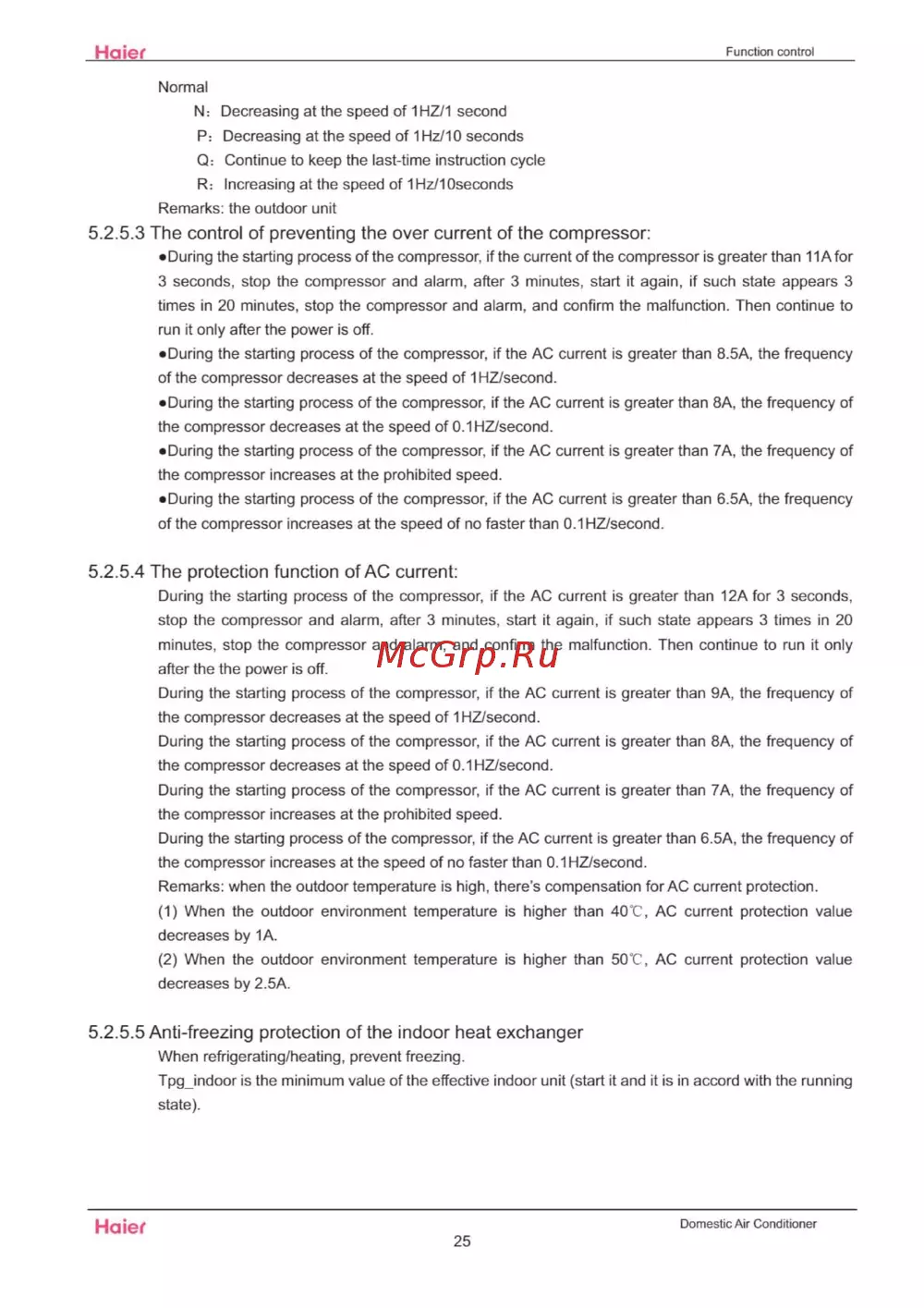

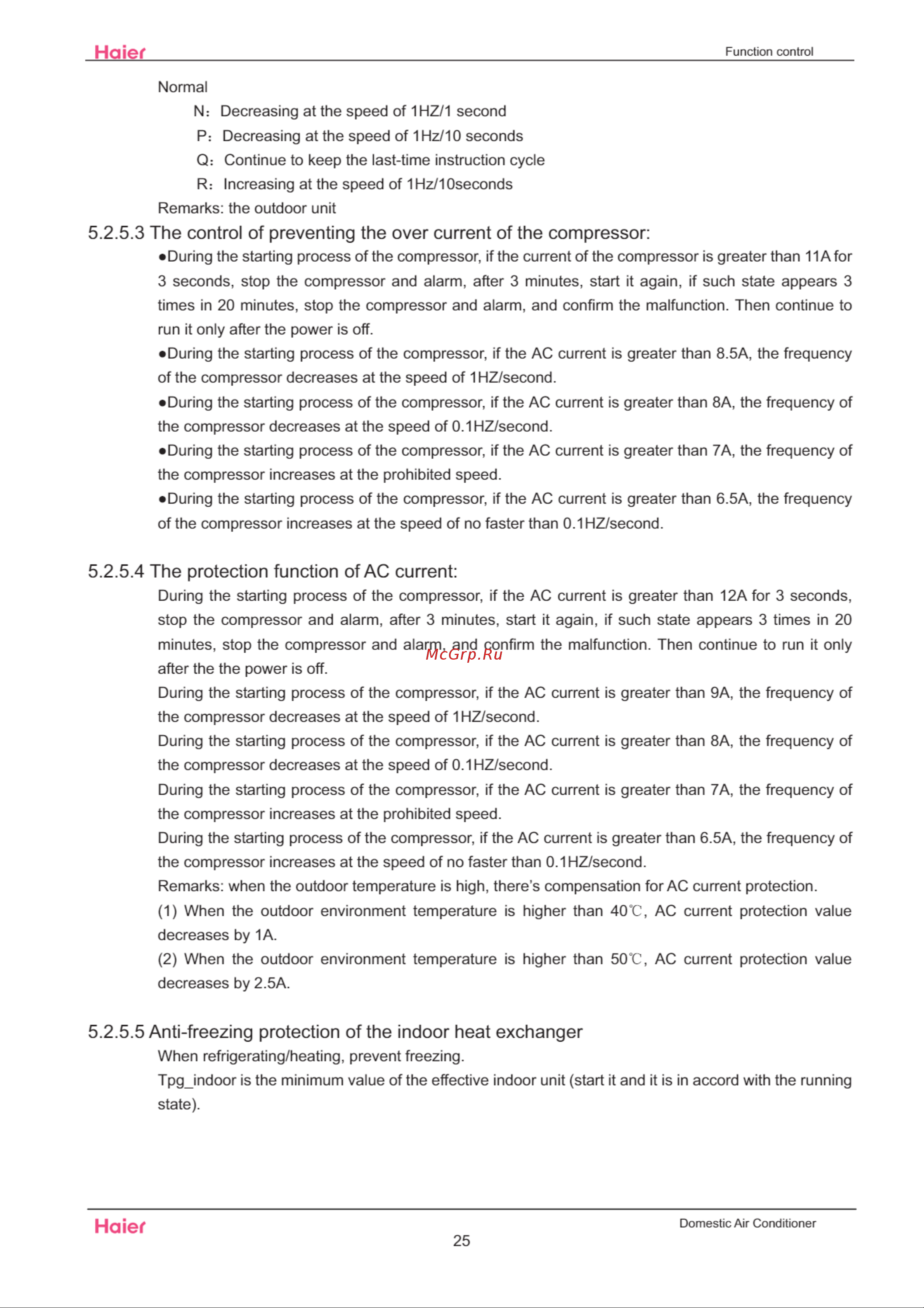

Haier Function control Normal N Decreasing at the speed of 1HZ 1 second P Decreasing at the speed of 1 Hz 10 seconds Q Continue to keep the last time instruction cycle R Increasing at the speed of 1Hz 10seconds Remarks the outdoor unit 5 2 5 3 The control of preventing the over current of the compressor During the starting process of the compressor if the current of the compressor is greater than 11A for 3 seconds stop the compressor and alarm after 3 minutes start it again if such state appears 3 times in 20 minutes stop the compressor and alarm and confirm the malfunction Then continue to run it only after the power is off During the starting process of the compressor if the AC current is greater than 8 5A the frequency of the compressor decreases at the speed of 1HZ second During the starting process of the compressor if the AC current is greater than 8A the frequency of the compressor decreases at the speed of 0 1HZ second During the starting process of the compressor if the AC current is greater than 7A the frequency of the compressor increases at the prohibited speed During the starting process of the compressor if the AC current is greater than 6 5A the frequency of the compressor increases at the speed of no faster than 0 1 HZ second 5 2 5 4 The protection function of AC current During the starting process of the compressor if the AC current is greater than 12A for 3 seconds stop the compressor and alarm after 3 minutes start it again if such state appears 3 times in 20 minutes stop the compressor and alarm and confirm the malfunction Then continue to run it only after the the power is off During the starting process of the compressor if the AC current is greater than 9A the frequency of the compressor decreases at the speed of 1 HZ second During the starting process of the compressor if the AC current is greater than 8A the frequency of the compressor decreases at the speed of 0 1 HZ second During the starting process of the compressor if the AC current is greater than 7A the frequency of the compressor increases at the prohibited speed During the starting process of the compressor if the AC current is greater than 6 5A the frequency of the compressor increases at the speed of no faster than 0 1 HZ second Remarks when the outdoor temperature is high there s compensation for AC current protection 1 When the outdoor environment temperature is higher than 40 C AC current protection value decreases by 1A 2 When the outdoor environment temperature is higher than 50 C AC current protection value decreases by 2 5A 5 2 5 5 Anti freezing protection of the indoor heat exchanger When refrigerating heating prevent freezing Tpgjndoor is the minimum value of the effective indoor unit start it and it is in accord with the running state Haier Domestic Air Conditioner 25
