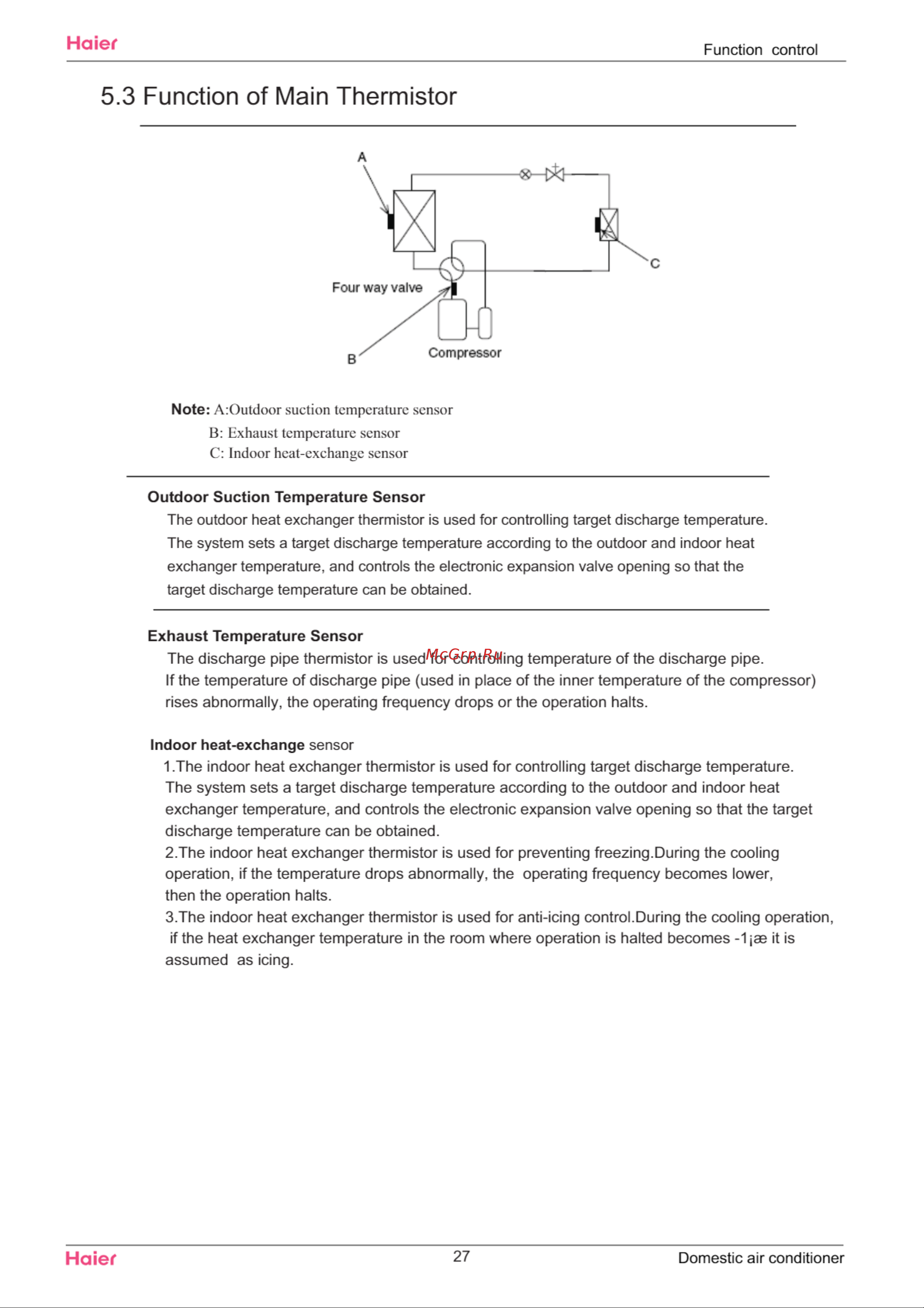

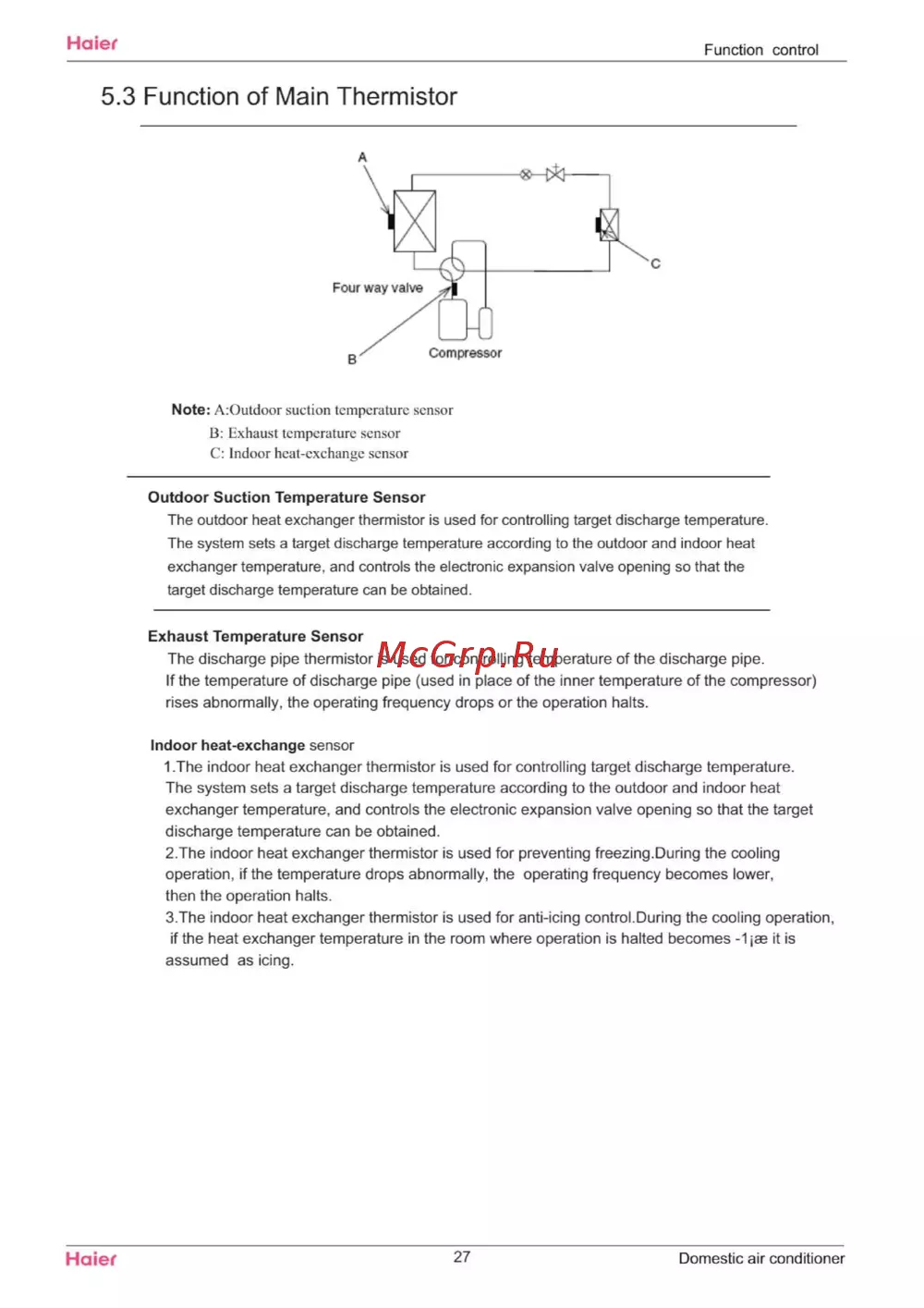

- Function of main thermistor p.30
- B exhaust temperature sensor c indoor heat exchange sensor p.30
- A outdoor suction temperature sensor p.30
