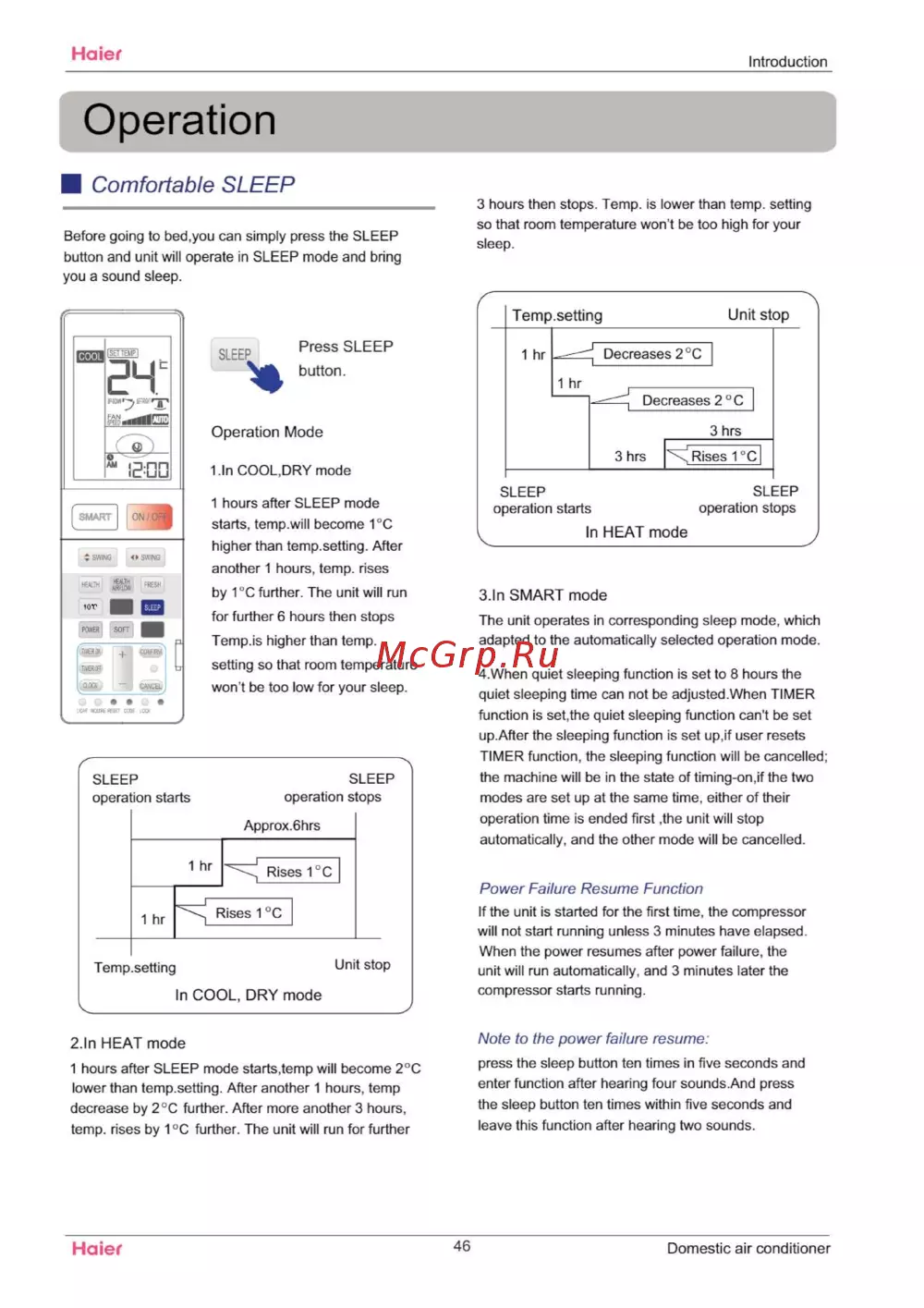

Haier Introduction Operation I Comfortable SLEEP 3 hours then stops Temp is lower than temp setting so that room temperature won t be too high for your sleep Before going to bed you can simply press the SLEEP button and unit will operate in SLEEP mode and bring you a sound sleep Press SLEEP button Operation Mode 1 In COOL DRY mode SLEEP operation starts 1 hours after SLEEP mode starts temp will become 1 C SLEEP operation stops In HEAT mode higher than temp setting After another 1 hours temp rises by 1 C further The unit will run 3 ln SMART mode for further 6 hours then stops The unit operates in corresponding sleep mode which adapted to the automatically selected operation mode Temp is higher than temp setting so that room temperature 4 When quiet sleeping function is set to 8 hours the quiet sleeping time can not be adjusted When TIMER function is set the quiet sleeping function can t be set up After the sleeping function is set up if user resets TIMER function the sleeping function will be cancelled won t be too low for your sleep the machine will be in the state of timing on if the two modes are set up at the same time either of their operation time is ended first the unit will stop automatically and the other mode will be cancelled Power Failure Resume Function If the unit is started for the first time the compressor will not start running unless 3 minutes have elapsed When the power resumes after power failure the unit will run automatically and 3 minutes later the compressor starts running Unit stop Temp setting In COOL DRY mode 2 In HEAT mode Note to the power failure resume 1 hours after SLEEP mode starts temp will become 2 C lower than temp setting After another 1 hours temp decrease by 2 C further After more another 3 hours temp rises by 1 C further The unit will run for further press the sleep button ten times in five seconds and enter function after hearing four sounds And press Haier the sleep button ten times within five seconds and leave this function after hearing two sounds 46 Domestic air conditioner
