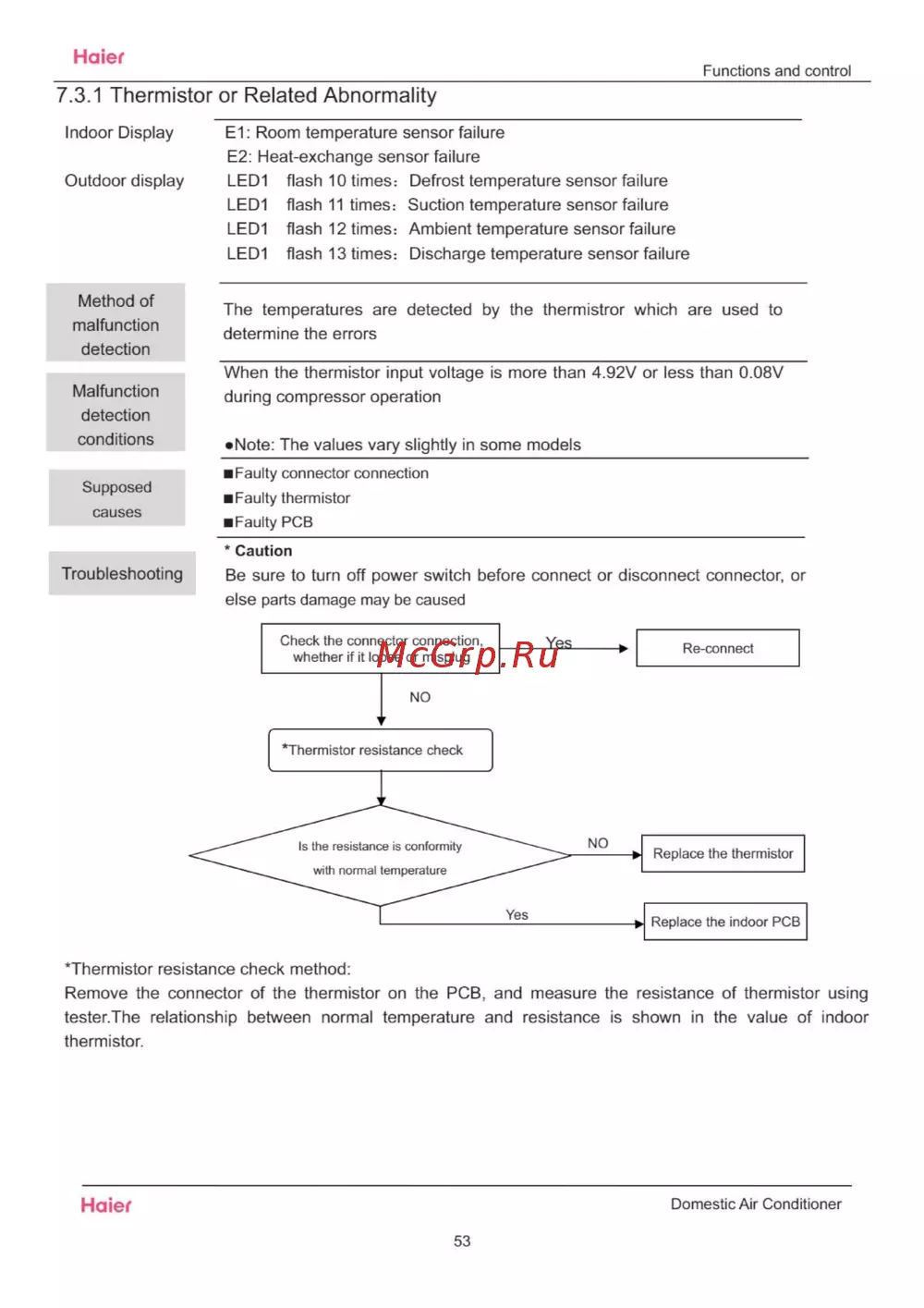

Haier Functions and control 7 3 1 Thermistor or Related Abnormality Indoor Display E1 Room temperature sensor failure E2 Heat exchange sensor failure Outdoor display LED1 flash 10 times Defrost temperature sensor failure LED1 flash 11 times Suction temperature sensor failure LED1 flash 12 times Ambient temperature sensor failure LED1 flash 13 times Discharge temperature sensor failure Method of malfunction The temperatures are detected by the thermistror which are used to determine the errors detection When the thermistor input voltage is more than 4 92V or less than 0 08V Malfunction during compressor operation detection conditions Note The values vary slightly in some models Faulty connector connection Supposed causes Faulty thermistor Faulty PCB Caution Troubleshooting Be sure to turn off power switch before connect or disconnect connector or else parts damage may be caused Thermistor resistance check method Remove the connector of the thermistor on the PCB and measure the resistance of thermistor using tester The relationship between normal temperature and resistance is shown in the value of indoor thermistor Haier Domestic Air Conditioner 53
