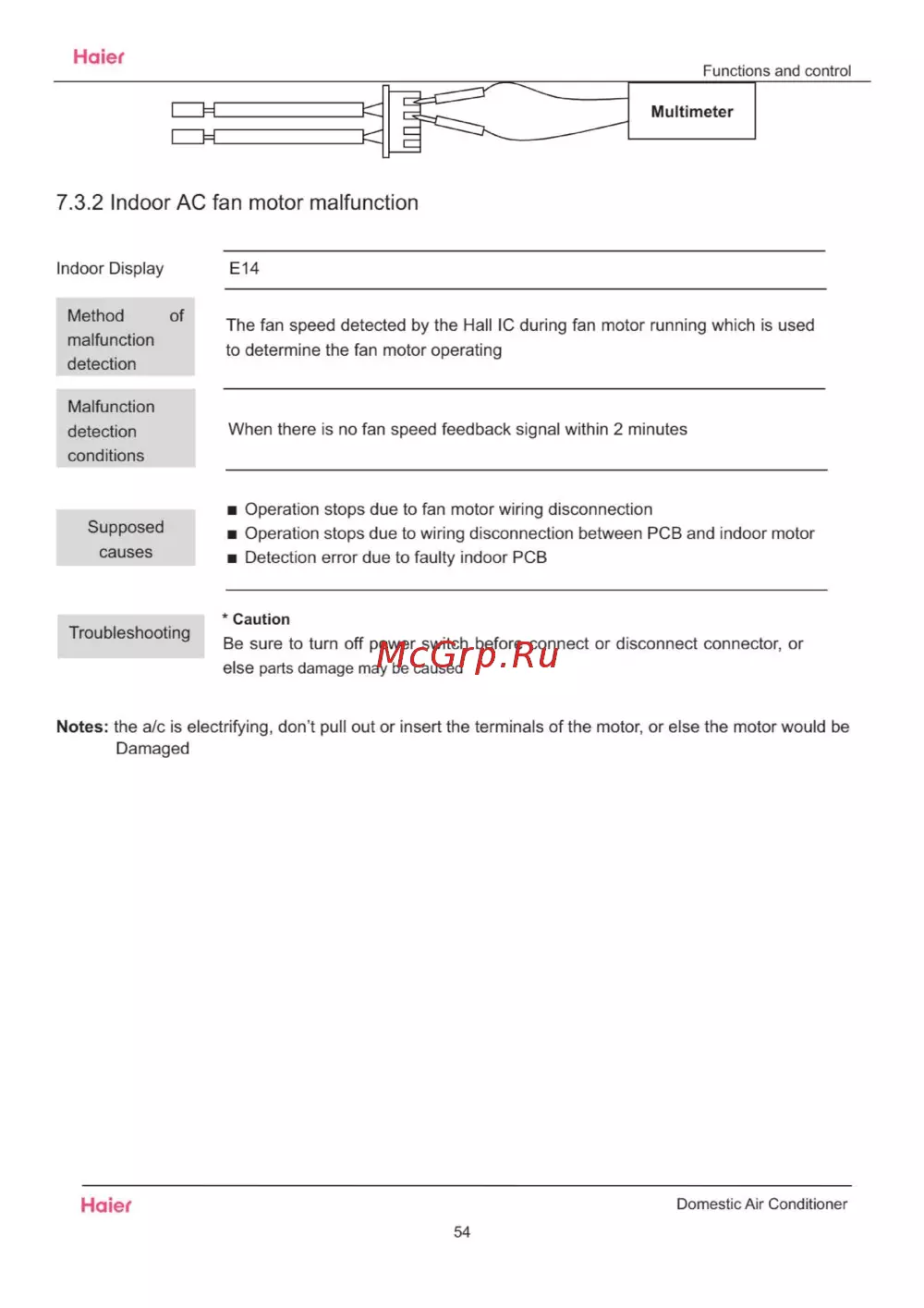

Haiei Functions and control 7 3 2 Indoor AC fan motor malfunction Indoor Display E14 Method of malfunction detection The fan speed detected by the Hall IC during fan motor running which is used to determine the fan motor operating Malfunction detection When there is no fan speed feedback signal within 2 minutes conditions Operation stops due to fan motor wiring disconnection Supposed causes Troubleshooting Operation stops due to wiring disconnection between PCB and indoor motor Detection error due to faulty indoor PCB Caution Be sure to turn off power switch before connect or disconnect connector or else parts damage may be caused Notes the a c is electrifying don t pull out or insert the terminals of the motor or else the motor would be Damaged Haier Domestic Air Conditioner 54
