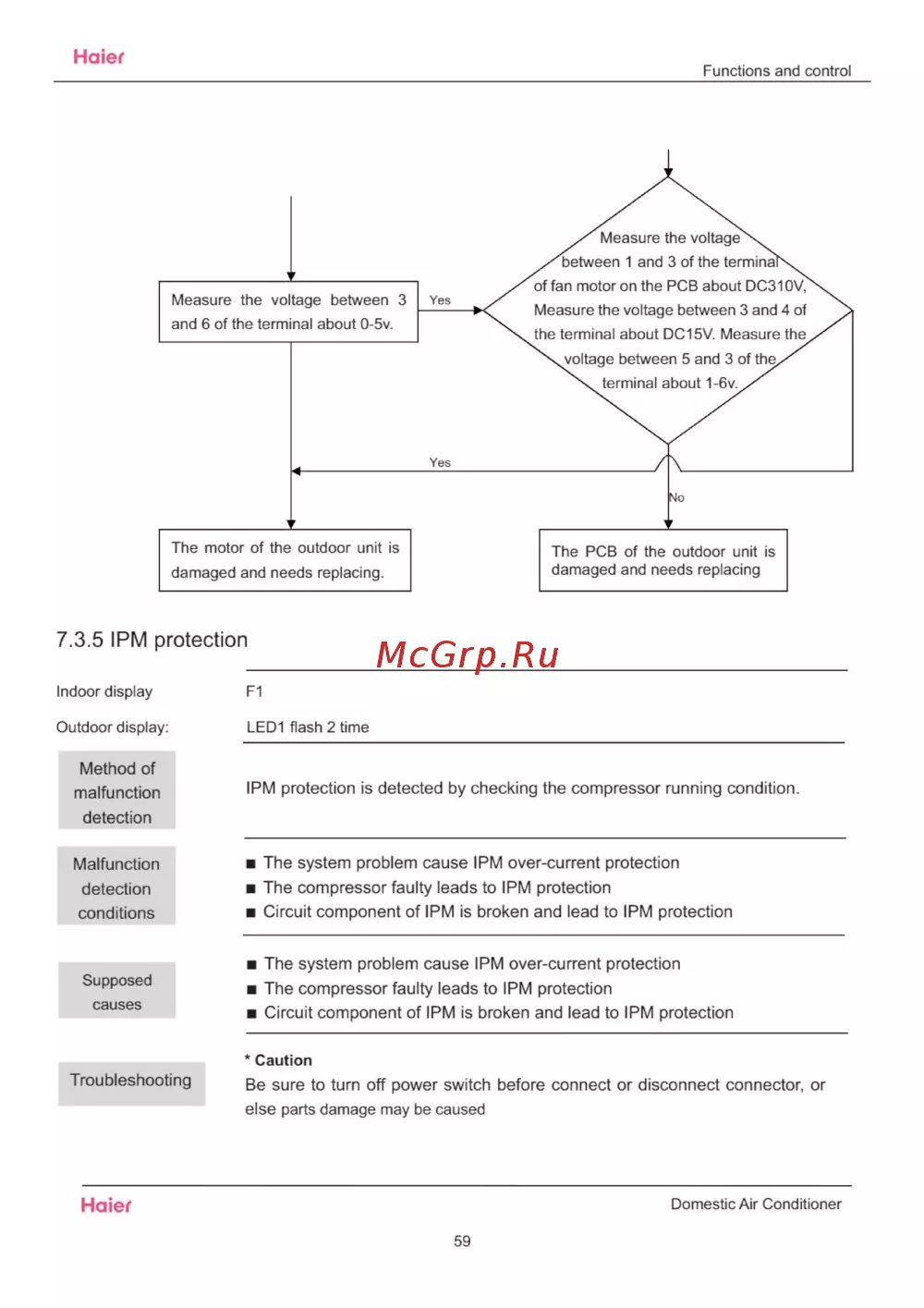

Haiec Functions and control 7 3 5 IPM protection Indoor display F1 Outdoor display LED1 flash 2 time Method of malfunction IPM protection is detected by checking the compressor running condition detection Malfunction The system problem cause IPM over current protection detection The compressor faulty leads to IPM protection conditions Circuit component of IPM is broken and lead to IPM protection The system problem cause IPM over current protection Supposed causes The compressor faulty leads to IPM protection Circuit component of IPM is broken and lead to IPM protection Caution Troubleshooting Be sure to turn off power switch before connect or disconnect connector or else parts damage may be caused Haief Domestic Air Conditioner 59
