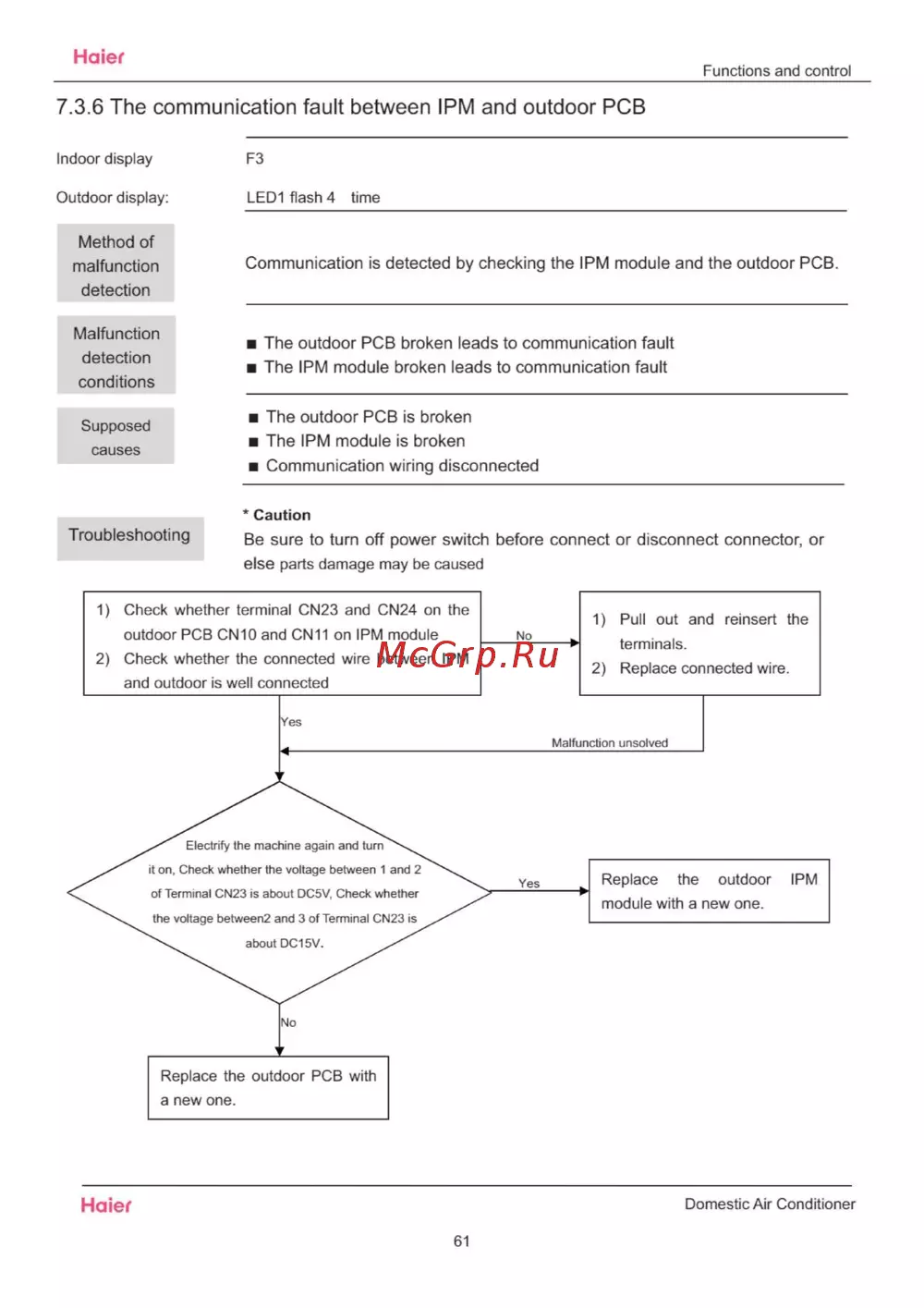

Haiei Functions and control 7 3 6 The communication fault between IPM and outdoor PCB Indoor display F3 Outdoor display LED1 flash 4 time Method of malfunction Communication is detected by checking the IPM module and the outdoor PCB detection Malfunction detection conditions Supposed causes The outdoor PCB broken leads to communication fault The IPM module broken leads to communication fault The outdoor PCB is broken The IPM module is broken Communication wiring disconnected Caution Troubleshooting Be sure to turn off power switch before connect or disconnect connector or else parts damage may be caused Haier Domestic Air Conditioner 61
