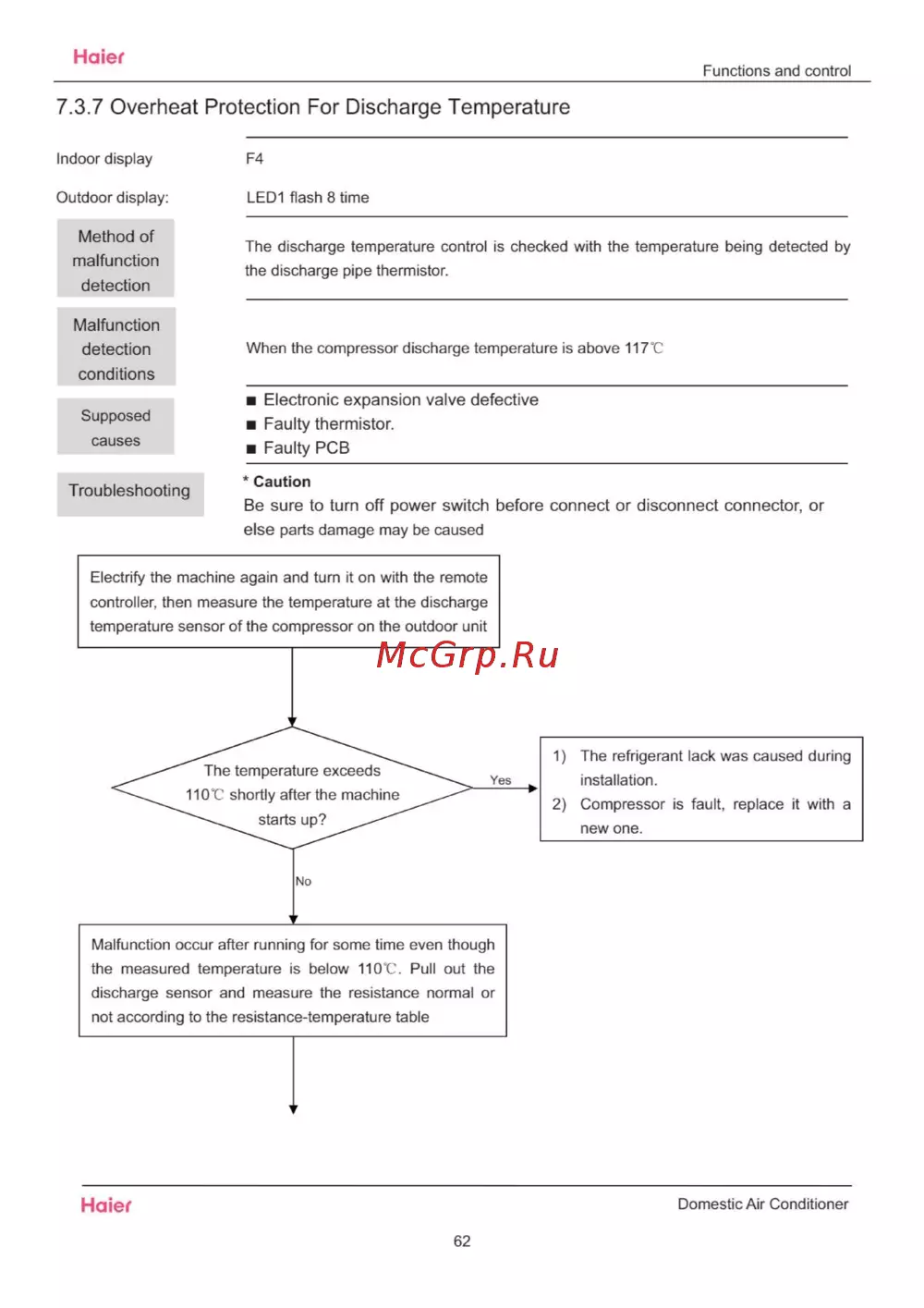

Haier Functions and control 7 3 7 Overheat Protection For Discharge Temperature Indoor display F4 Outdoor display LED1 flash 8 time Method of malfunction The discharge temperature control is checked with the temperature being detected by the discharge pipe thermistor detection Malfunction detection When the compressor discharge temperature is above 117 C conditions Electronic expansion valve defective Supposed causes Troubleshooting Faulty thermistor Faulty PCB Caution Be sure to turn off power switch before connect or disconnect connector or else parts damage may be caused Haier Domestic Air Conditioner 62
