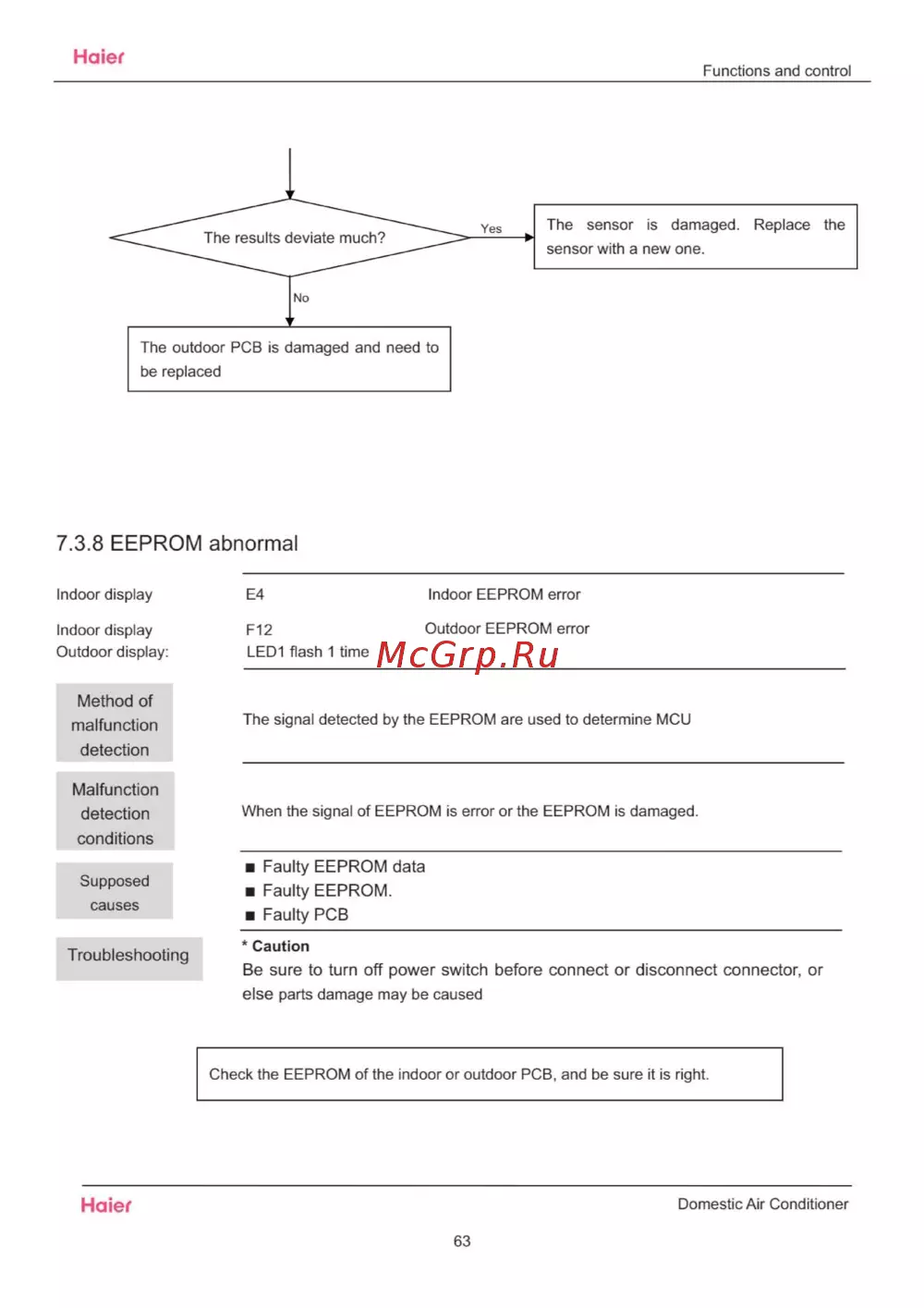

Haiei Functions and control 7 3 8 EEPROM abnormal Indoor display E4 Indoor EEPROM error Indoor display F12 Outdoor EEPROM error Outdoor display LED1 flash 1 time Method of malfunction The signal detected by the EEPROM are used to determine MCU detection Malfunction detection When the signal of EEPROM is error or the EEPROM is damaged conditions Faulty EEPROM data Supposed causes Troubleshooting Faulty EEPROM Faulty PCB Caution Be sure to turn off power switch before connect or disconnect connector or else parts damage may be caused Check the EEPROM of the indoor or outdoor PCB and be sure it is right Haier Domestic Air Conditioner 63
