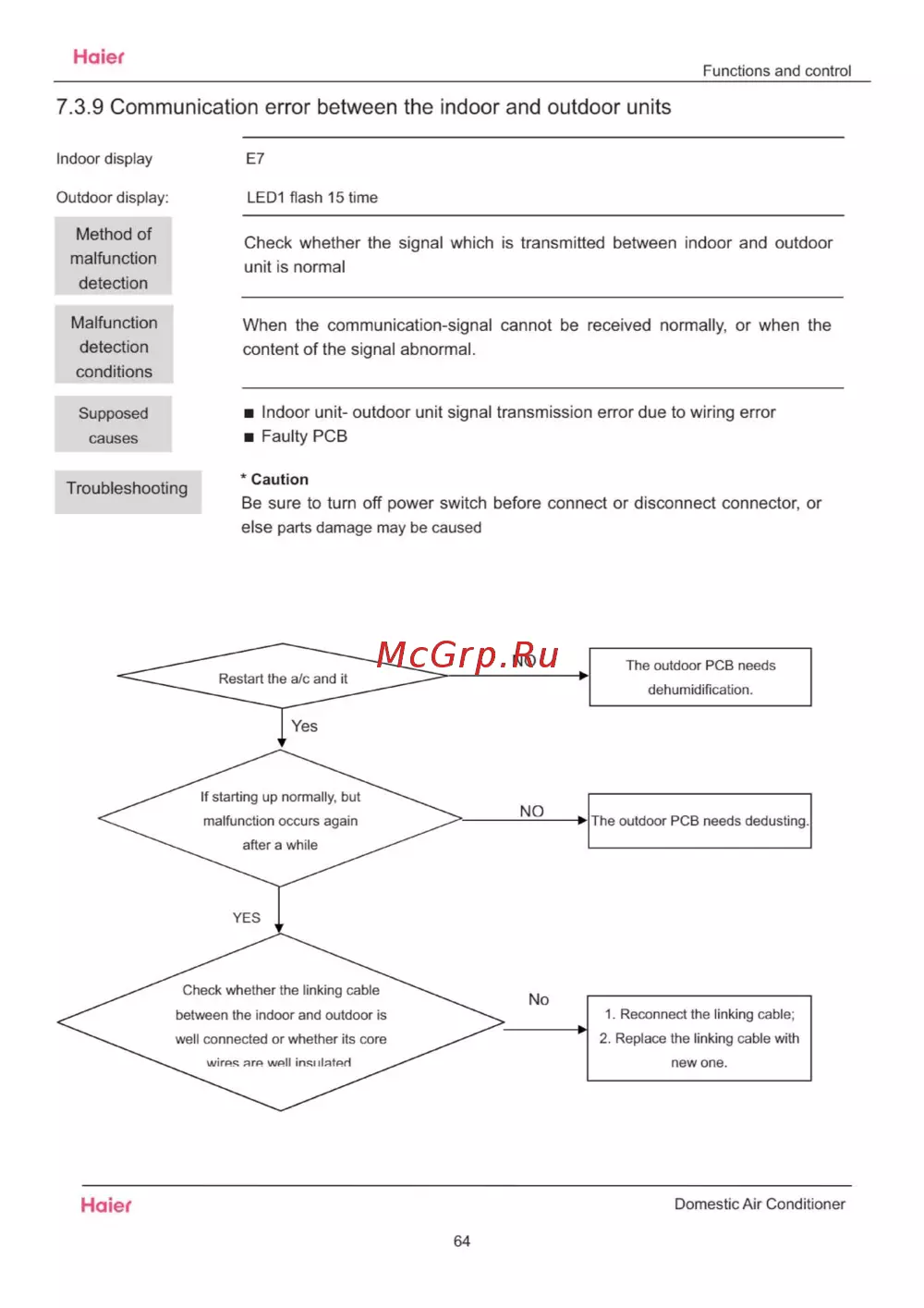

Haiei Functions and control 7 3 9 Communication error between the indoor and outdoor units Indoor display E7 Outdoor display LED1 flash 15 time Method of malfunction Check whether the signal which is transmitted between indoor and outdoor unit is normal detection Malfunction detection When the communication signal cannot be received normally or when the content of the signal abnormal conditions Supposed causes Troubleshooting Indoor unit outdoor unit signal transmission error due to wiring error Faulty PCB Caution Be sure to turn off power switch before connect or disconnect connector or else parts damage may be caused Haier Domestic Air Conditioner 64
