Haier AS09SH1ERA — устранение неисправностей кондиционеров: ошибка F19 и советы [69/109]
![Haier AS12SH1ERA [69/109] An abnormal voltage rise or fall is detected by specified voltage checking](/views2/1812078/page69/bg45.png)
Содержание
- Service manaul p.1
- Dc inverter free match s series p.1
- Wall mounted type p.1
- Model no as09 12sh1era p.1
- U09 12eh1 era p.1
- Table of contents p.2
- Safety cautions p.4
- Model name explanation p.4
- Introduction p.4
- Warning p.5
- Caution in repair p.5
- Introduction p.5
- Domestic air conditioner p.5
- Warning p.6
- Introduction p.6
- Domestic air conditioner p.6
- Cautions regarding products after repair p.6
- Warning p.7
- Caution p.7
- Introduction p.7
- Inspection after repair p.7
- Domestic air conditioner p.7
- Introduction p.8
- Icon type of information description p.8
- Domestic air conditioner p.8
- Caution p.8
- Î caution caution p.8
- Warning warning p.8
- Using icons list p.8
- Using icons p.8
- T note note p.8
- Reference p.8
- List of fuctions p.9
- Specifications p.10
- Domestic air conditioner p.10
- As09sh1era 1u09eh1 era as12sh1era 1u12eh1era p.10
- Conversion formulae p.11
- The data are based on the conditions shown in the table below p.11
- Specifications p.11
- Snb130fgym2 snb130fgym2 p.11
- Domestic air conditioner p.11
- Cooling heating piping length p.11
- W 52 52 p.11
- U09eh1era 1u12eh1era p.11
- Indoor unit connectors p.12
- Outdoor unit p.13
- Connectors p.13
- Lo о o p.15
- Main functions and control specification of indoor unit p.16
- Funcitions and control p.16
- Dehumidifying mode p.16
- Cooling operation mode p.16
- Automatic operation p.16
- Heating operation mode p.17
- Strength operation p.18
- Mute operation p.18
- Dormant operation p.18
- Air refreshing p.18
- Timing p.18
- Urgent on off input p.19
- Low load protection control p.19
- High load protection control p.19
- Abnormal operation of indoor system p.19
- Malfunction list resume p.20
- Single indoor system operation p.20
- Power cut compensation p.20
- Fixed frequency operation p.20
- Abnormality confirmation approaches p.20
- Time cutting function p.21
- Test program p.21
- Ifp optional function p.22
- Temp display p.23
- Degree heating maintaining p.23
- Main functions and control specification of outdoor unit p.24
- The starting of compressor p.24
- The speeds of increasing or decreasing the frequency of the compressor p.24
- The operation frequency of outdoor unit and its control p.24
- The operation frequency control of compressor p.24
- The calculation of the compressor s frequency p.24
- The outdoor fan control when refrigerating or dehumidifying p.26
- The outdoor fan control when heating p.26
- The outdoor fan control exchange fan p.26
- The control of the outdoor electronic expansion valve eev p.26
- Ttc high temperature preventing protection p.27
- Tc high temperature preventing control of the indoor heating unit p.27
- Protection function p.27
- Four way control p.27
- The protection function of ac current p.28
- The control of preventing the over current of the compressor p.28
- Anti freezing protection of the indoor heat exchanger p.28
- The frequency limitation of modification rate p.29
- Temperature protection of the outdoor refrigerating coil p.29
- Function of main thermistor p.30
- B exhaust temperature sensor c indoor heat exchange sensor p.30
- A outdoor suction temperature sensor p.30
- Value of thermistor 5 intdoor unit p.31
- Room sensor and pipe sensor p.31
- R25 c 10kq 3 b25 c 50 c 3700k 3 p.31
- Haier ____________ p.31
- R25 c 10kq 3 p.34
- Outdoor unit p.34
- B25 c 50 c 3700k 3 p.34
- Ambient sensor suction sensor defrosting sensor p.34
- Function control p.35
- Domestic air conditioner p.35
- Domestic air conditioner p.36
- Function control p.36
- Function control p.37
- Domestic air conditioner p.37
- Function and control p.38
- Domestic air conditioner p.38
- Discharging sensor p.38
- C 50kq 3 p.38
- 80 c 4450к 3 p.38
- Function and control p.39
- Domestic air conditioner p.39
- Function and control p.40
- Domestic air conditioner p.40
- Function and control p.41
- Domestic air conditioner p.41
- System configuration p.42
- Instruction p.42
- Remote controller p.43
- Parts and functions p.43
- Outdoor unit p.43
- Indoor unit p.43
- Operation p.44
- Loading of the battery p.44
- Clock set p.44
- Smart operation cool heat and dry operation p.45
- Operation p.45
- Select tempsetting fan operation swing operation p.46
- Operation p.46
- Press health button p.47
- Operation p.47
- Notice p.47
- Health operation health airflow operation p.47
- Health airflow function p.47
- The setting of p.47
- The health airflow function p.47
- The cancel of p.47
- Power soft operation timer operation p.48
- Operation p.48
- Operation p.49
- Comfortable sleep p.49
- Operation p.50
- Operation p.51
- Fresh operation emergency operation and test operation p.51
- For smart use of the air conditioner p.51
- Cautions p.52
- A warning p.52
- A caution p.52
- Cautions p.53
- Before asking for service check the following first p.53
- Trouble shooting p.53
- Symptom check item details of measure p.54
- Service diagnosis p.54
- Problem symptoms and measures p.54
- Caution for diagnosis p.54
- Error codes and description p.55
- Thermistor or related abnormality p.56
- Indoor ac fan motor malfunction p.57
- Indoor dc fan motor malfunction p.59
- How to check fan motor dc p.59
- Outdoor dc fan motor fault p.61
- Ipm protection p.62
- The communication fault between ipm and outdoor pcb p.64
- Be sure to turn off power switch before connect or disconnect connector or p.65
- Malfunction p.65
- Conditions p.65
- Else parts damage may be caused p.65
- Detection p.65
- Troubleshooting p.65
- Overheat protection for discharge temperature p.65
- Method of p.65
- Faulty thermistor p.65
- Faulty pcb p.65
- Electronic expansion valve defective p.65
- Faulty pcb p.66
- Faulty eeprom data p.66
- Faulty eeprom p.66
- Else parts damage may be caused p.66
- Eeprom abnormal p.66
- Detection p.66
- Conditions p.66
- Be sure to turn off power switch before connect or disconnect connector or p.66
- Troubleshooting p.66
- Method of p.66
- Malfunction p.66
- Communication error between the indoor and outdoor units p.67
- An abnormal voltage rise or fall is detected by specified voltage checking p.69
- Troubleshooting be p.69
- To turn off power switch before connect or disconnect connector or p.69
- Supply voltage not as specified p.69
- Power supply over or under voltage fault p.69
- Microcomputer p.69
- Method of p.69
- Malfunction p.69
- Detection circuit p.69
- Detection p.69
- Conditions p.69
- An voltage signal is feedback from the voltage detection circuit to the p.69
- Loop of the station detect error p.70
- Over current of the compressor p.71
- High work intense protection p.72
- Mismatching between indoor and outdoor units p.73
- Short of refrigerant p.74
- Method of p.75
- Malfunction p.75
- High work intense protection p.75
- Detection p.75
- Conditions p.75
- Preparation p.77
- Installation manual of room air conditioner p.77
- Installation p.77
- Drawing for the installation of indoor and outdoor units p.77
- Domestic air conditioner p.77
- When the mounting plate is first fixed p.78
- Accessory parts p.78
- When connecting the cable after installing the indoor unit p.78
- Unloading of indoor unit body p.78
- Selection of pipe p.78
- Removing the wiring cover p.78
- Rear piping p.78
- Other direction piping p.78
- Making a hole on the wall and fitting the piping hole cover p.78
- Left left rear piping p.78
- Installation of the indoor unit p.78
- Installation p.78
- Indoor unit p.78
- Fixing the indoor unit body p.78
- Fitting of the mounting plate and positioning of the wall hole p.78
- Drawing of pipe p.78
- When the mounting plate is fixed side bar and lintel о connecting the indoor outdoor electric cable p.78
- Domestic air conditioner p.78
- Purging method to use vacuum pump p.79
- Outdoor unit p.79
- Installation of outdoor unit p.79
- Installation p.79
- Domestic air conditioner p.79
- Connection of pipes p.79
- Connection p.79
- Attaching drain elbow optional p.79
- Caution p.80
- Removal procedure p.81
- Removal of front panel p.81
- Indoor unit p.81
- Removal of filter and blade p.83
- Removal of front grill p.84
- Removal of drain pan p.86
- Removal of display assembly p.87
- Removal of vertical blades and swing motor p.88
- Removal of electrical box p.89
- Removal of heat exchanger p.90
- Removal of fan rotor and fan motor p.92
- Removal procedure p.93
- Removal of outdoor panel p.93
- Outdoor unit p.93
- Domestic air conditioner p.93
- Loosen the screws of the panel p.95
- Removal of electrical box p.96
- Removal of fan and fan motor p.97
- Removal of fan motor bracket and partition p.98
- Removal procedure p.99
- Domestic air conditioner p.99
- Removal of compressor and heat exchange p.100
- В1им11111 p.101
- Fil il m p.101
- Piping diagrams p.102
- Heating mode p.102
- Cooling mode p.102
- Appendix p.102
- Outdoor wtrtng diagram p.104
- Outdoor unit 01 p.104
- Control board circuit diagrams p.105
- Control board circuit diagrams p.106
- Module board circuit diagram p.108
- Sincere forever p.109
- Haier group p.109
Похожие устройства
-
Haier HME 09 TW03Инструкция по эксплуатации -
Haier HME 09 AW03Инструкция по эксплуатации
-
Haier HSE 20 TW03Инструкция по эксплуатации
-
Haier HSE 20 AW03Инструкция по эксплуатации
-
Haier HSE 17 TW03Инструкция по эксплуатации
-
Haier HSE 17 AW03Инструкция по эксплуатации
-
Haier HSE 16 TW03Инструкция по эксплуатации
-
Haier HSE 16 AW03Инструкция по эксплуатации
-
Haier HSE 12 TW03Инструкция по эксплуатации
-
Haier HSE 12 TD03Инструкция по эксплуатации
-
Haier HSE 12 AH03Инструкция по эксплуатации
-
Haier HSE 9 TW03Инструкция по эксплуатации

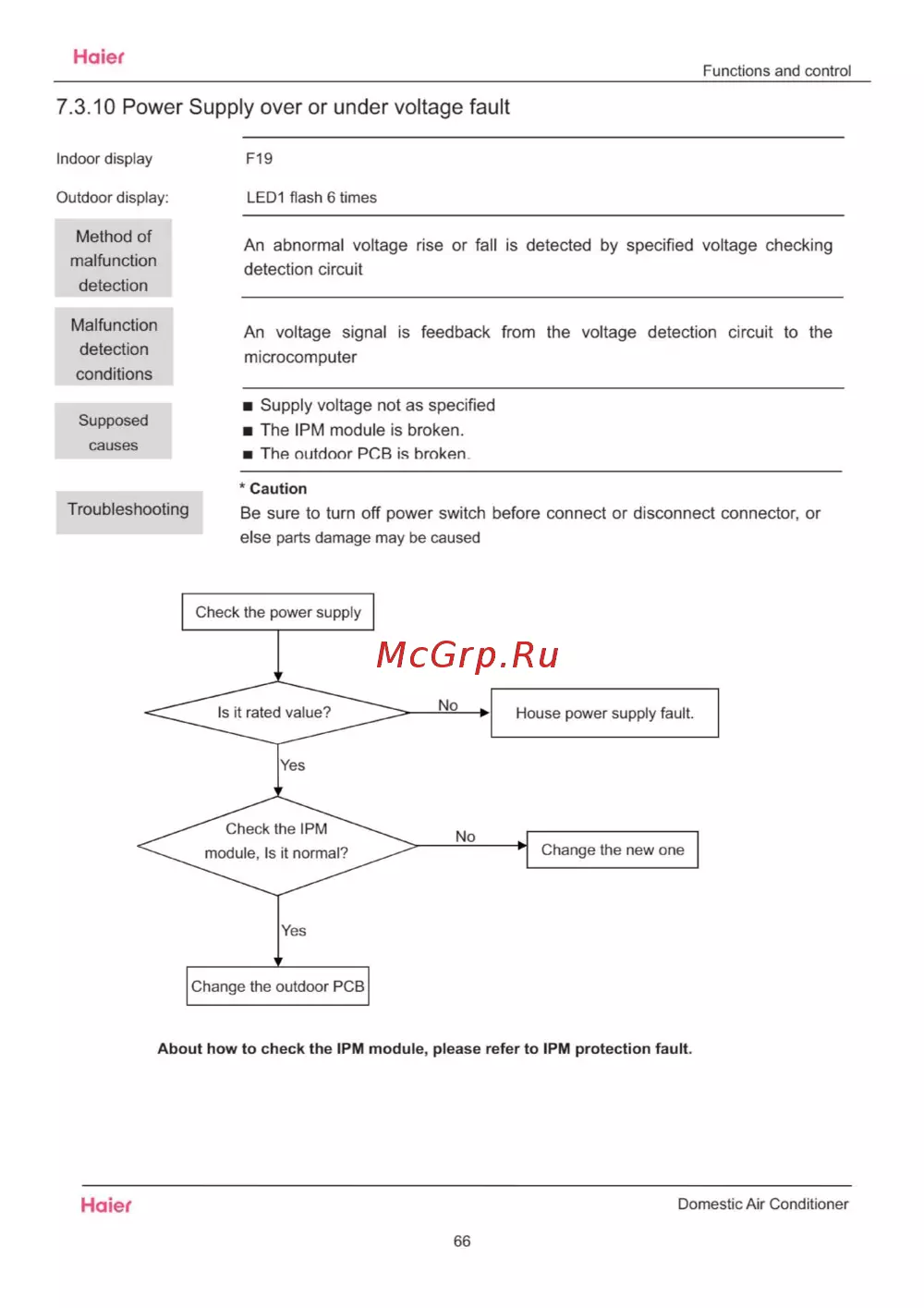

Haier Functions and control 7 3 10 Power Supply over or under voltage fault Indoor display F19 Outdoor display LED1 flash 6 times Method of An abnormal voltage rise or fall is detected by specified voltage checking malfunction detection circuit detection Malfunction An voltage signal is feedback from the voltage detection circuit to the detection microcomputer conditions Supply voltage not as specified Supposed pM moc u e s broken causes The outdoor PCB is broken Caution Troubleshooting Be sure to turn off power switch before connect or disconnect connector or else parts damage may be caused About how to check the IPM module please refer to IPM protection fault Haier Domestic Air Conditioner 66
