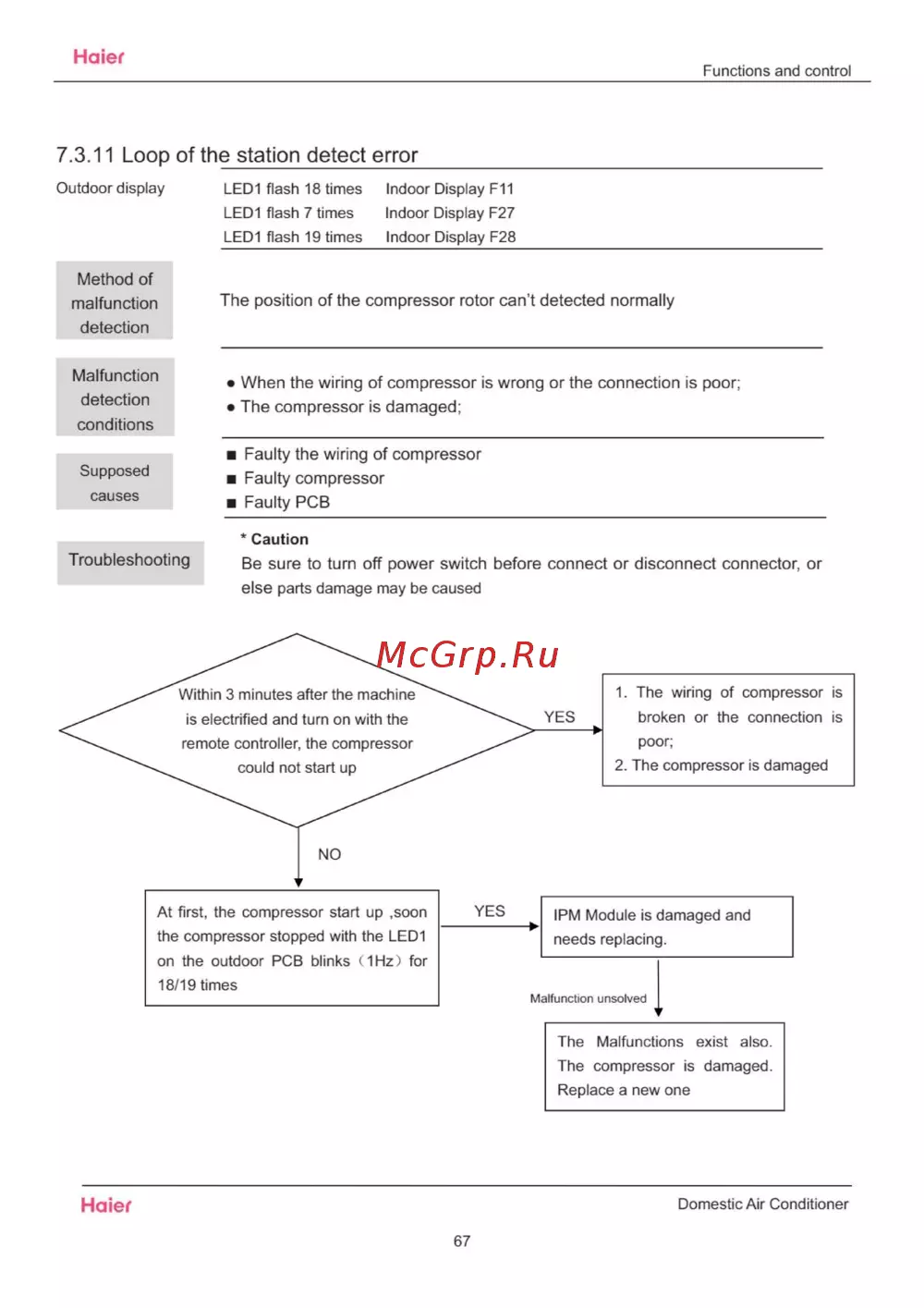

Haiei Functions and control 7 3 11 Loop of the station detect error Outdoor display LED1 flash 18 times Indoor Display F11 LED1 flash 7 times Indoor Display F27 LED1 flash 19 times Indoor Display F28 Method of malfunction The position of the compressor rotor can t detected normally detection Malfunction detection When the wiring of compressor is wrong or the connection is poor The compressor is damaged conditions Faulty the wiring of compressor Supposed causes Faulty compressor Faulty PCB Caution Troubleshooting Be sure to turn off power switch before connect or disconnect connector or else parts damage may be caused Haier Domestic Air Conditioner 67
