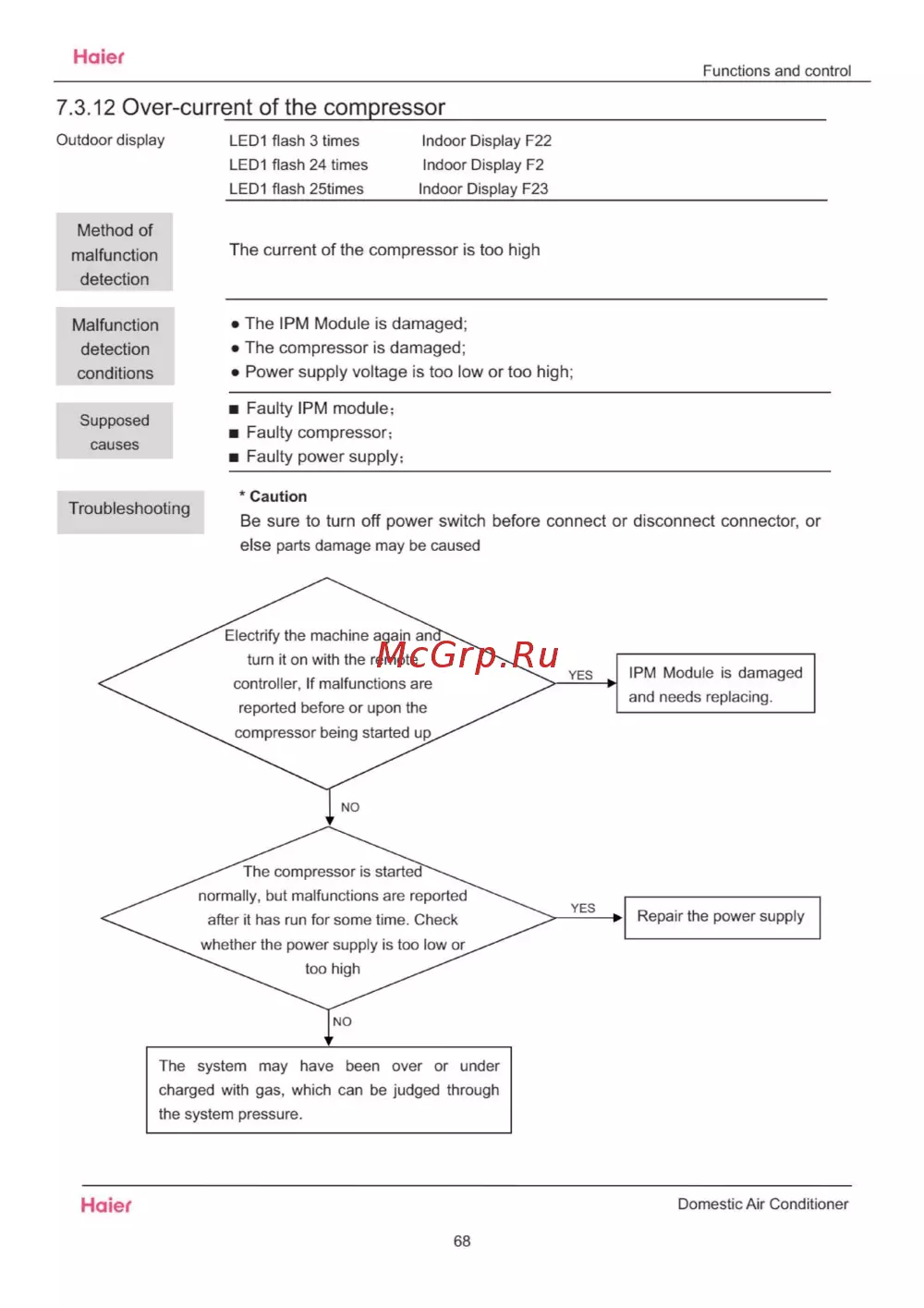

Haiei Functions and control 7 3 12 Over current of the compressor Outdoor display LED1 flash 3 times Indoor Display F22 LED1 flash 24 times Indoor Display F2 LED1 flash 25times Indoor Display F23 Method of malfunction The current of the compressor is too high detection Malfunction The IPM Module is damaged detection The compressor is damaged conditions Power supply voltage is too low or too high Supposed causes Troubleshooting Faulty IPM module Faulty compressor Faulty power supply Caution Be sure to turn off power switch before connect or disconnect connector or else parts damage may be caused Haier Domestic Air Conditioner 68
