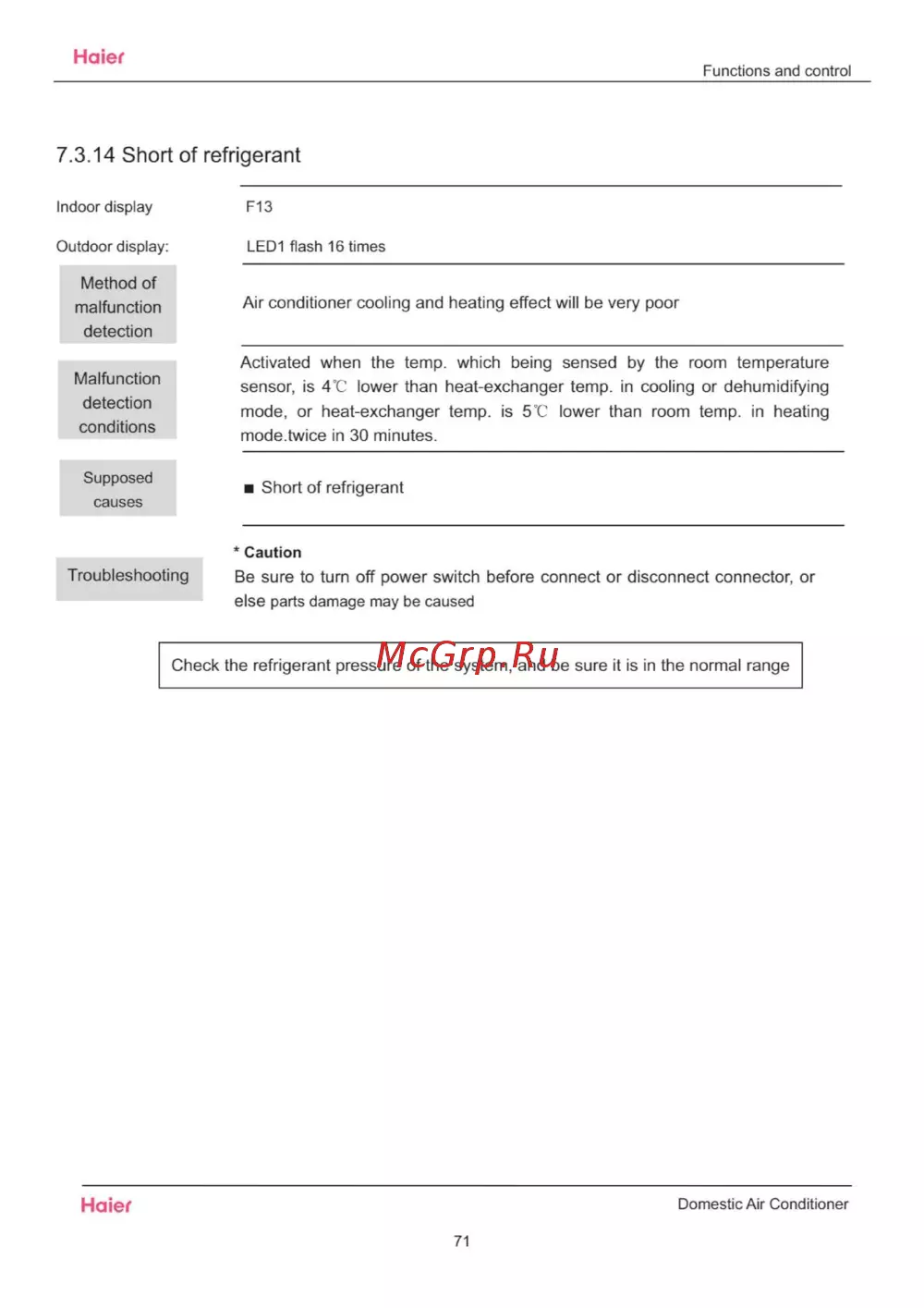

Haiei Functions and control 7 3 14 Short of refrigerant Indoor display F13 Outdoor display LED1 flash 16 times Method of malfunction Air conditioner cooling and heating effect will be very poor detection Activated when the temp which being sensed by the room temperature Malfunction detection conditions Supposed sensor is 4 C lower than heat exchanger temp in cooling or dehumidifying mode or heat exchanger temp is 5 C lower than room temp in heating mode twice in 30 minutes Short of refrigerant causes Caution Troubleshooting Be sure to turn off power switch before connect or disconnect connector or else parts damage may be caused Check the refrigerant pressure of the system and be sure it is in the normal range Haier Domestic Air Conditioner 71
