Haier AS09SH1ERA — руководство по установке настенного кондиционера воздуха [77/109]

Содержание

• Service manaul p.1
• Dc inverter free match s series p.1
• Wall mounted type p.1
• Model no as09 12sh1era p.1
• U09 12eh1 era p.1
• Table of contents p.2
• Safety cautions p.4
• Model name explanation p.4
• Introduction p.4
• Warning p.5
• Introduction p.5
• Domestic air conditioner p.5
• Caution in repair p.5
• Introduction p.6
• Domestic air conditioner p.6
• Cautions regarding products after repair p.6
• Warning p.6
• Warning p.7
• Caution p.7
• Introduction p.7
• Inspection after repair p.7
• Domestic air conditioner p.7
• Î caution caution p.8
• Warning warning p.8
• Using icons list p.8
• Using icons p.8
• T note note p.8
• Reference p.8
• Introduction p.8
• Icon type of information description p.8
• Domestic air conditioner p.8
• Caution p.8
• List of fuctions p.9
• Specifications p.10
• Domestic air conditioner p.10
• As09sh1era 1u09eh1 era as12sh1era 1u12eh1era p.10
• Conversion formulae p.11
• W 52 52 p.11
• U09eh1era 1u12eh1era p.11
• The data are based on the conditions shown in the table below p.11
• Specifications p.11
• Snb130fgym2 snb130fgym2 p.11
• Domestic air conditioner p.11
• Cooling heating piping length p.11
• Indoor unit connectors p.12
• Outdoor unit p.13
• Connectors p.13
• Lo о o p.15
• Main functions and control specification of indoor unit p.16
• Funcitions and control p.16
• Dehumidifying mode p.16
• Cooling operation mode p.16
• Automatic operation p.16
• Heating operation mode p.17
• Timing p.18
• Strength operation p.18
• Mute operation p.18
• Dormant operation p.18
• Air refreshing p.18
• Urgent on off input p.19
• Low load protection control p.19
• High load protection control p.19
• Abnormal operation of indoor system p.19
• Malfunction list resume p.20
• Abnormality confirmation approaches p.20
• Single indoor system operation p.20
• Power cut compensation p.20
• Fixed frequency operation p.20
• Time cutting function p.21
• Test program p.21
• Ifp optional function p.22
• Temp display p.23
• Degree heating maintaining p.23
• The starting of compressor p.24
• The speeds of increasing or decreasing the frequency of the compressor p.24
• The operation frequency of outdoor unit and its control p.24
• The operation frequency control of compressor p.24
• The calculation of the compressor s frequency p.24
• Main functions and control specification of outdoor unit p.24
• The control of the outdoor electronic expansion valve eev p.26
• The outdoor fan control when refrigerating or dehumidifying p.26
• The outdoor fan control when heating p.26
• The outdoor fan control exchange fan p.26
• Ttc high temperature preventing protection p.27
• Tc high temperature preventing control of the indoor heating unit p.27
• Protection function p.27
• Four way control p.27
• The protection function of ac current p.28
• The control of preventing the over current of the compressor p.28
• Anti freezing protection of the indoor heat exchanger p.28
• The frequency limitation of modification rate p.29
• Temperature protection of the outdoor refrigerating coil p.29
• Function of main thermistor p.30
• B exhaust temperature sensor c indoor heat exchange sensor p.30
• A outdoor suction temperature sensor p.30
• Haier ____________ p.31
• Value of thermistor 5 intdoor unit p.31
• Room sensor and pipe sensor p.31
• R25 c 10kq 3 b25 c 50 c 3700k 3 p.31
• R25 c 10kq 3 p.34
• Outdoor unit p.34
• B25 c 50 c 3700k 3 p.34
• Ambient sensor suction sensor defrosting sensor p.34
• Function control p.35
• Domestic air conditioner p.35
• Function control p.36
• Domestic air conditioner p.36
• Function control p.37
• Domestic air conditioner p.37
• Discharging sensor p.38
• C 50kq 3 p.38
• 80 c 4450к 3 p.38
• Function and control p.38
• Domestic air conditioner p.38
• Function and control p.39
• Domestic air conditioner p.39
• Function and control p.40
• Domestic air conditioner p.40
• Function and control p.41
• Domestic air conditioner p.41
• System configuration p.42
• Instruction p.42
• Remote controller p.43
• Parts and functions p.43
• Outdoor unit p.43
• Indoor unit p.43
• Loading of the battery p.44
• Clock set p.44
• Operation p.44
• Smart operation cool heat and dry operation p.45
• Operation p.45
• Select tempsetting fan operation swing operation p.46
• Operation p.46
• The setting of p.47
• The health airflow function p.47
• The cancel of p.47
• Press health button p.47
• Operation p.47
• Notice p.47
• Health operation health airflow operation p.47
• Health airflow function p.47
• Power soft operation timer operation p.48
• Operation p.48
• Comfortable sleep p.49
• Operation p.49
• Operation p.50
• Operation p.51
• Fresh operation emergency operation and test operation p.51
• For smart use of the air conditioner p.51
• Cautions p.52
• A warning p.52
• A caution p.52
• Trouble shooting p.53
• Cautions p.53
• Before asking for service check the following first p.53
• Symptom check item details of measure p.54
• Service diagnosis p.54
• Problem symptoms and measures p.54
• Caution for diagnosis p.54
• Error codes and description p.55
• Thermistor or related abnormality p.56
• Indoor ac fan motor malfunction p.57
• Indoor dc fan motor malfunction p.59
• How to check fan motor dc p.59
• Outdoor dc fan motor fault p.61
• Ipm protection p.62
• The communication fault between ipm and outdoor pcb p.64
• Malfunction p.65
• Be sure to turn off power switch before connect or disconnect connector or p.65
• Else parts damage may be caused p.65
• Conditions p.65
• Method of p.65
• Faulty thermistor p.65
• Faulty pcb p.65
• Electronic expansion valve defective p.65
• Detection p.65
• Troubleshooting p.65
• Overheat protection for discharge temperature p.65
• Troubleshooting p.66
• Method of p.66
• Malfunction p.66
• Faulty pcb p.66
• Faulty eeprom data p.66
• Faulty eeprom p.66
• Else parts damage may be caused p.66
• Eeprom abnormal p.66
• Detection p.66
• Conditions p.66
• Be sure to turn off power switch before connect or disconnect connector or p.66
• Communication error between the indoor and outdoor units p.67
• An abnormal voltage rise or fall is detected by specified voltage checking p.69
• An voltage signal is feedback from the voltage detection circuit to the p.69
• Troubleshooting be p.69
• To turn off power switch before connect or disconnect connector or p.69
• Supply voltage not as specified p.69
• Power supply over or under voltage fault p.69
• Microcomputer p.69
• Method of p.69
• Malfunction p.69
• Detection circuit p.69
• Detection p.69
• Conditions p.69
• Loop of the station detect error p.70
• Over current of the compressor p.71
• High work intense protection p.72
• Mismatching between indoor and outdoor units p.73
• Short of refrigerant p.74
• Conditions p.75
• Method of p.75
• Malfunction p.75
• High work intense protection p.75
• Detection p.75
• Preparation p.77
• Installation manual of room air conditioner p.77
• Installation p.77
• Drawing for the installation of indoor and outdoor units p.77
• Domestic air conditioner p.77
• Installation p.78
• Indoor unit p.78
• Fixing the indoor unit body p.78
• Fitting of the mounting plate and positioning of the wall hole p.78
• Drawing of pipe p.78
• When the mounting plate is fixed side bar and lintel о connecting the indoor outdoor electric cable p.78
• Domestic air conditioner p.78
• When the mounting plate is first fixed p.78
• Accessory parts p.78
• When connecting the cable after installing the indoor unit p.78
• Unloading of indoor unit body p.78
• Selection of pipe p.78
• Removing the wiring cover p.78
• Rear piping p.78
• Other direction piping p.78
• Making a hole on the wall and fitting the piping hole cover p.78
• Left left rear piping p.78
• Installation of the indoor unit p.78
• Installation p.79
• Domestic air conditioner p.79
• Connection of pipes p.79
• Connection p.79
• Attaching drain elbow optional p.79
• Purging method to use vacuum pump p.79
• Outdoor unit p.79
• Installation of outdoor unit p.79
• Caution p.80
• Removal procedure p.81
• Removal of front panel p.81
• Indoor unit p.81
• Removal of filter and blade p.83
• Removal of front grill p.84
• Removal of drain pan p.86
• Removal of display assembly p.87
• Removal of vertical blades and swing motor p.88
• Removal of electrical box p.89
• Removal of heat exchanger p.90
• Removal of fan rotor and fan motor p.92
• Domestic air conditioner p.93
• Removal procedure p.93
• Removal of outdoor panel p.93
• Outdoor unit p.93
• Loosen the screws of the panel p.95
• Removal of electrical box p.96
• Removal of fan and fan motor p.97
• Removal of fan motor bracket and partition p.98
• Removal procedure p.99
• Domestic air conditioner p.99
• Removal of compressor and heat exchange p.100
• В1им11111 p.101
• Fil il m p.101
• Piping diagrams p.102
• Heating mode p.102
• Cooling mode p.102
• Appendix p.102
• Outdoor wtrtng diagram p.104
• Outdoor unit 01 p.104
• Control board circuit diagrams p.105
• Control board circuit diagrams p.106
• Module board circuit diagram p.108
• Sincere forever p.109
• Haier group p.109

Похожие устройства

•
  Haier HME 09 TW03

  Инструкция по эксплуатации
•
  Haier HME 09 AW03

  Инструкция по эксплуатации
•
  Haier HSE 20 TW03

  Инструкция по эксплуатации
•
  Haier HSE 20 AW03

  Инструкция по эксплуатации
•
  Haier HSE 17 TW03

  Инструкция по эксплуатации
•
  Haier HSE 17 AW03

  Инструкция по эксплуатации
•
  Haier HSE 16 TW03

  Инструкция по эксплуатации
•
  Haier HSE 16 AW03

  Инструкция по эксплуатации
•
  Haier HSE 12 TW03

  Инструкция по эксплуатации
•
  Haier HSE 12 TD03

  Инструкция по эксплуатации
•
  Haier HSE 12 AH03

  Инструкция по эксплуатации
•
  Haier HSE 9 TW03

  Инструкция по эксплуатации

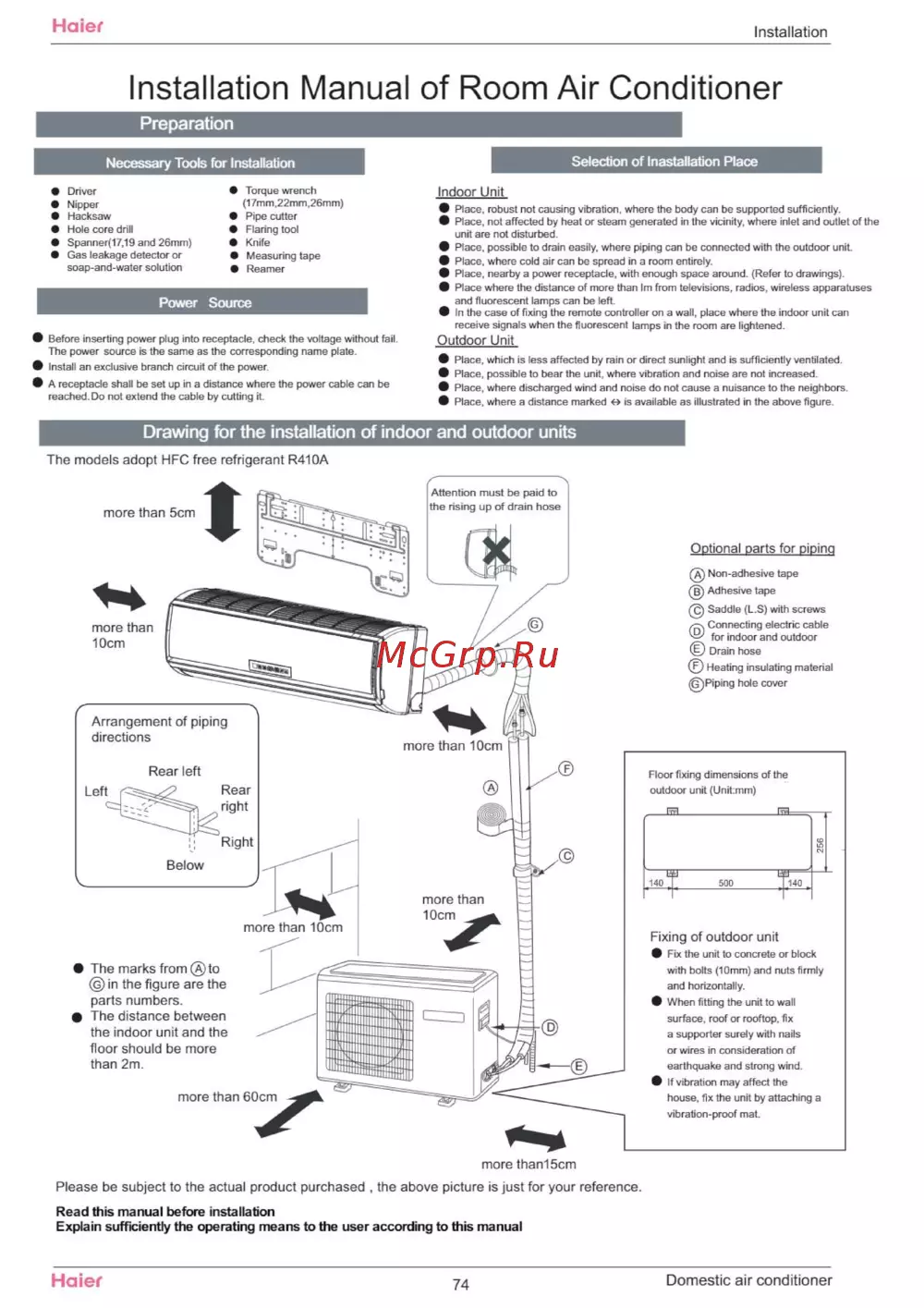

Haier Installation Installation Manual of Room Air Conditioner Preparation Selection of Inastallation Place Necessary Tools for Installation Driver Nipper Hacksaw Hole core drill Spanner 17 19 and 26mm Gas leakage detector or soap and water solution Torque wrench 17mm 22mm 26mm Pipe cutter Flaring tool Knife Measuring tape Reamer Indoor Unit Place robust not causing vibration where the body can be supported sufficiently Place not affected by heat or steam generated in the vicinity where inlet and outlet of the unit are not disturbed Place possible to drain easily where piping can be connected with the outdoor unit Place where cold air can be spread in a room entirely Place nearby a power receptacle with enough space around Refer to drawings Place where the distance of more than Im from televisions radios wireless apparatuses and fluorescent lamps can be left In the case of fixing the remote controller on a wall place where the indoor unit can receive signals when the fluorescent lamps in the room are lightened 0 W Power Source Before inserting power plug into receptacle check the voltage without fail The power source is the same as the corresponding name plate Install an exclusive branch circuit of the power A receptacle shall be set up in a distance where the power cable can be reached Do not extend the cable by cutting it Outdoor Unit 0 Place which is less affected by rain or direct sunlight and is sufficiently ventilated Place possible to bear the unit where vibration and noise are not increased Place where discharged wind and noise do not cause a nuisance to the neighbors Place where a distance marked o is available as illustrated in the above figure Drawing for the installation of indoor and outdoor units The models adopt HFC free refrigerant R410A Attention must be paid to the rising up of drain hose more than 5cm Optional parts for piping Non adhesive tape Adhesive tape Saddle L S with screws Connecting electric cable for indoor and outdoor E Drain hose F Heating insulating material Piping hole cover more than 10cm Arrangement of piping directions more than 10cm Rear left Floor fixing dimensions of the outdoor unit Unit mm Rear right Left Right Below more than 10cm more than 10cm Fixing of outdoor unit W Fix the unit to concrete or block The marks from A to in the figure are the parts numbers The distance between the indoor unit and the floor should be more than 2m with bolts 10mm and nuts firmly and horizontally When fitting the unit to wall surface roof or rooftop fix a supporter surely with nails or wires in consideration of earthquake and strong wind If vibration may affect the house fix the unit by attaching a vibration proof mat more than 60cm more than15cm Please be subject to the actual product purchased the above picture is just for your reference Read this manual before installation Explain sufficiently the operating means to the user according to this manual Haier 74 Domestic air conditioner

Узнайте, как правильно установить настенный кондиционер. Подробные инструкции по выбору места, необходимым инструментам и подключению к электросети.
