Haier AS09SH1ERA — инструкция по установке и обслуживанию системы кондиционирования [80/109]

Содержание

• Service manaul p.1
• Dc inverter free match s series p.1
• Wall mounted type p.1
• Model no as09 12sh1era p.1
• U09 12eh1 era p.1
• Table of contents p.2
• Safety cautions p.4
• Model name explanation p.4
• Introduction p.4
• Warning p.5
• Caution in repair p.5
• Introduction p.5
• Domestic air conditioner p.5
• Warning p.6
• Introduction p.6
• Domestic air conditioner p.6
• Cautions regarding products after repair p.6
• Warning p.7
• Caution p.7
• Introduction p.7
• Inspection after repair p.7
• Domestic air conditioner p.7
• Introduction p.8
• Icon type of information description p.8
• Domestic air conditioner p.8
• Caution p.8
• Î caution caution p.8
• Warning warning p.8
• Using icons list p.8
• Using icons p.8
• T note note p.8
• Reference p.8
• List of fuctions p.9
• Specifications p.10
• Domestic air conditioner p.10
• As09sh1era 1u09eh1 era as12sh1era 1u12eh1era p.10
• Conversion formulae p.11
• The data are based on the conditions shown in the table below p.11
• Specifications p.11
• Snb130fgym2 snb130fgym2 p.11
• Domestic air conditioner p.11
• Cooling heating piping length p.11
• W 52 52 p.11
• U09eh1era 1u12eh1era p.11
• Indoor unit connectors p.12
• Outdoor unit p.13
• Connectors p.13
• Lo о o p.15
• Main functions and control specification of indoor unit p.16
• Funcitions and control p.16
• Dehumidifying mode p.16
• Cooling operation mode p.16
• Automatic operation p.16
• Heating operation mode p.17
• Strength operation p.18
• Mute operation p.18
• Dormant operation p.18
• Air refreshing p.18
• Timing p.18
• Urgent on off input p.19
• Low load protection control p.19
• High load protection control p.19
• Abnormal operation of indoor system p.19
• Malfunction list resume p.20
• Single indoor system operation p.20
• Power cut compensation p.20
• Fixed frequency operation p.20
• Abnormality confirmation approaches p.20
• Time cutting function p.21
• Test program p.21
• Ifp optional function p.22
• Temp display p.23
• Degree heating maintaining p.23
• Main functions and control specification of outdoor unit p.24
• The starting of compressor p.24
• The speeds of increasing or decreasing the frequency of the compressor p.24
• The operation frequency of outdoor unit and its control p.24
• The operation frequency control of compressor p.24
• The calculation of the compressor s frequency p.24
• The outdoor fan control when refrigerating or dehumidifying p.26
• The outdoor fan control when heating p.26
• The outdoor fan control exchange fan p.26
• The control of the outdoor electronic expansion valve eev p.26
• Ttc high temperature preventing protection p.27
• Tc high temperature preventing control of the indoor heating unit p.27
• Protection function p.27
• Four way control p.27
• The protection function of ac current p.28
• The control of preventing the over current of the compressor p.28
• Anti freezing protection of the indoor heat exchanger p.28
• The frequency limitation of modification rate p.29
• Temperature protection of the outdoor refrigerating coil p.29
• Function of main thermistor p.30
• B exhaust temperature sensor c indoor heat exchange sensor p.30
• A outdoor suction temperature sensor p.30
• Value of thermistor 5 intdoor unit p.31
• Room sensor and pipe sensor p.31
• R25 c 10kq 3 b25 c 50 c 3700k 3 p.31
• Haier ____________ p.31
• R25 c 10kq 3 p.34
• Outdoor unit p.34
• B25 c 50 c 3700k 3 p.34
• Ambient sensor suction sensor defrosting sensor p.34
• Function control p.35
• Domestic air conditioner p.35
• Domestic air conditioner p.36
• Function control p.36
• Function control p.37
• Domestic air conditioner p.37
• Function and control p.38
• Domestic air conditioner p.38
• Discharging sensor p.38
• C 50kq 3 p.38
• 80 c 4450к 3 p.38
• Function and control p.39
• Domestic air conditioner p.39
• Function and control p.40
• Domestic air conditioner p.40
• Function and control p.41
• Domestic air conditioner p.41
• System configuration p.42
• Instruction p.42
• Remote controller p.43
• Parts and functions p.43
• Outdoor unit p.43
• Indoor unit p.43
• Operation p.44
• Loading of the battery p.44
• Clock set p.44
• Smart operation cool heat and dry operation p.45
• Operation p.45
• Select tempsetting fan operation swing operation p.46
• Operation p.46
• Press health button p.47
• Operation p.47
• Notice p.47
• Health operation health airflow operation p.47
• Health airflow function p.47
• The setting of p.47
• The health airflow function p.47
• The cancel of p.47
• Power soft operation timer operation p.48
• Operation p.48
• Operation p.49
• Comfortable sleep p.49
• Operation p.50
• Operation p.51
• Fresh operation emergency operation and test operation p.51
• For smart use of the air conditioner p.51
• Cautions p.52
• A warning p.52
• A caution p.52
• Cautions p.53
• Before asking for service check the following first p.53
• Trouble shooting p.53
• Symptom check item details of measure p.54
• Service diagnosis p.54
• Problem symptoms and measures p.54
• Caution for diagnosis p.54
• Error codes and description p.55
• Thermistor or related abnormality p.56
• Indoor ac fan motor malfunction p.57
• Indoor dc fan motor malfunction p.59
• How to check fan motor dc p.59
• Outdoor dc fan motor fault p.61
• Ipm protection p.62
• The communication fault between ipm and outdoor pcb p.64
• Be sure to turn off power switch before connect or disconnect connector or p.65
• Malfunction p.65
• Conditions p.65
• Else parts damage may be caused p.65
• Detection p.65
• Troubleshooting p.65
• Overheat protection for discharge temperature p.65
• Method of p.65
• Faulty thermistor p.65
• Faulty pcb p.65
• Electronic expansion valve defective p.65
• Faulty pcb p.66
• Faulty eeprom data p.66
• Faulty eeprom p.66
• Else parts damage may be caused p.66
• Eeprom abnormal p.66
• Detection p.66
• Conditions p.66
• Be sure to turn off power switch before connect or disconnect connector or p.66
• Troubleshooting p.66
• Method of p.66
• Malfunction p.66
• Communication error between the indoor and outdoor units p.67
• An abnormal voltage rise or fall is detected by specified voltage checking p.69
• Troubleshooting be p.69
• To turn off power switch before connect or disconnect connector or p.69
• Supply voltage not as specified p.69
• Power supply over or under voltage fault p.69
• Microcomputer p.69
• Method of p.69
• Malfunction p.69
• Detection circuit p.69
• Detection p.69
• Conditions p.69
• An voltage signal is feedback from the voltage detection circuit to the p.69
• Loop of the station detect error p.70
• Over current of the compressor p.71
• High work intense protection p.72
• Mismatching between indoor and outdoor units p.73
• Short of refrigerant p.74
• Method of p.75
• Malfunction p.75
• High work intense protection p.75
• Detection p.75
• Conditions p.75
• Preparation p.77
• Installation manual of room air conditioner p.77
• Installation p.77
• Drawing for the installation of indoor and outdoor units p.77
• Domestic air conditioner p.77
• When the mounting plate is first fixed p.78
• Accessory parts p.78
• When connecting the cable after installing the indoor unit p.78
• Unloading of indoor unit body p.78
• Selection of pipe p.78
• Removing the wiring cover p.78
• Rear piping p.78
• Other direction piping p.78
• Making a hole on the wall and fitting the piping hole cover p.78
• Left left rear piping p.78
• Installation of the indoor unit p.78
• Installation p.78
• Indoor unit p.78
• Fixing the indoor unit body p.78
• Fitting of the mounting plate and positioning of the wall hole p.78
• Drawing of pipe p.78
• When the mounting plate is fixed side bar and lintel о connecting the indoor outdoor electric cable p.78
• Domestic air conditioner p.78
• Purging method to use vacuum pump p.79
• Outdoor unit p.79
• Installation of outdoor unit p.79
• Installation p.79
• Domestic air conditioner p.79
• Connection of pipes p.79
• Connection p.79
• Attaching drain elbow optional p.79
• Caution p.80
• Removal procedure p.81
• Removal of front panel p.81
• Indoor unit p.81
• Removal of filter and blade p.83
• Removal of front grill p.84
• Removal of drain pan p.86
• Removal of display assembly p.87
• Removal of vertical blades and swing motor p.88
• Removal of electrical box p.89
• Removal of heat exchanger p.90
• Removal of fan rotor and fan motor p.92
• Removal procedure p.93
• Removal of outdoor panel p.93
• Outdoor unit p.93
• Domestic air conditioner p.93
• Loosen the screws of the panel p.95
• Removal of electrical box p.96
• Removal of fan and fan motor p.97
• Removal of fan motor bracket and partition p.98
• Removal procedure p.99
• Domestic air conditioner p.99
• Removal of compressor and heat exchange p.100
• В1им11111 p.101
• Fil il m p.101
• Piping diagrams p.102
• Heating mode p.102
• Cooling mode p.102
• Appendix p.102
• Outdoor wtrtng diagram p.104
• Outdoor unit 01 p.104
• Control board circuit diagrams p.105
• Control board circuit diagrams p.106
• Module board circuit diagram p.108
• Sincere forever p.109
• Haier group p.109

Похожие устройства

•
  Haier HME 09 TW03

  Инструкция по эксплуатации
•
  Haier HME 09 AW03

  Инструкция по эксплуатации
•
  Haier HSE 20 TW03

  Инструкция по эксплуатации
•
  Haier HSE 20 AW03

  Инструкция по эксплуатации
•
  Haier HSE 17 TW03

  Инструкция по эксплуатации
•
  Haier HSE 17 AW03

  Инструкция по эксплуатации
•
  Haier HSE 16 TW03

  Инструкция по эксплуатации
•
  Haier HSE 16 AW03

  Инструкция по эксплуатации
•
  Haier HSE 12 TW03

  Инструкция по эксплуатации
•
  Haier HSE 12 TD03

  Инструкция по эксплуатации
•
  Haier HSE 12 AH03

  Инструкция по эксплуатации
•
  Haier HSE 9 TW03

  Инструкция по эксплуатации

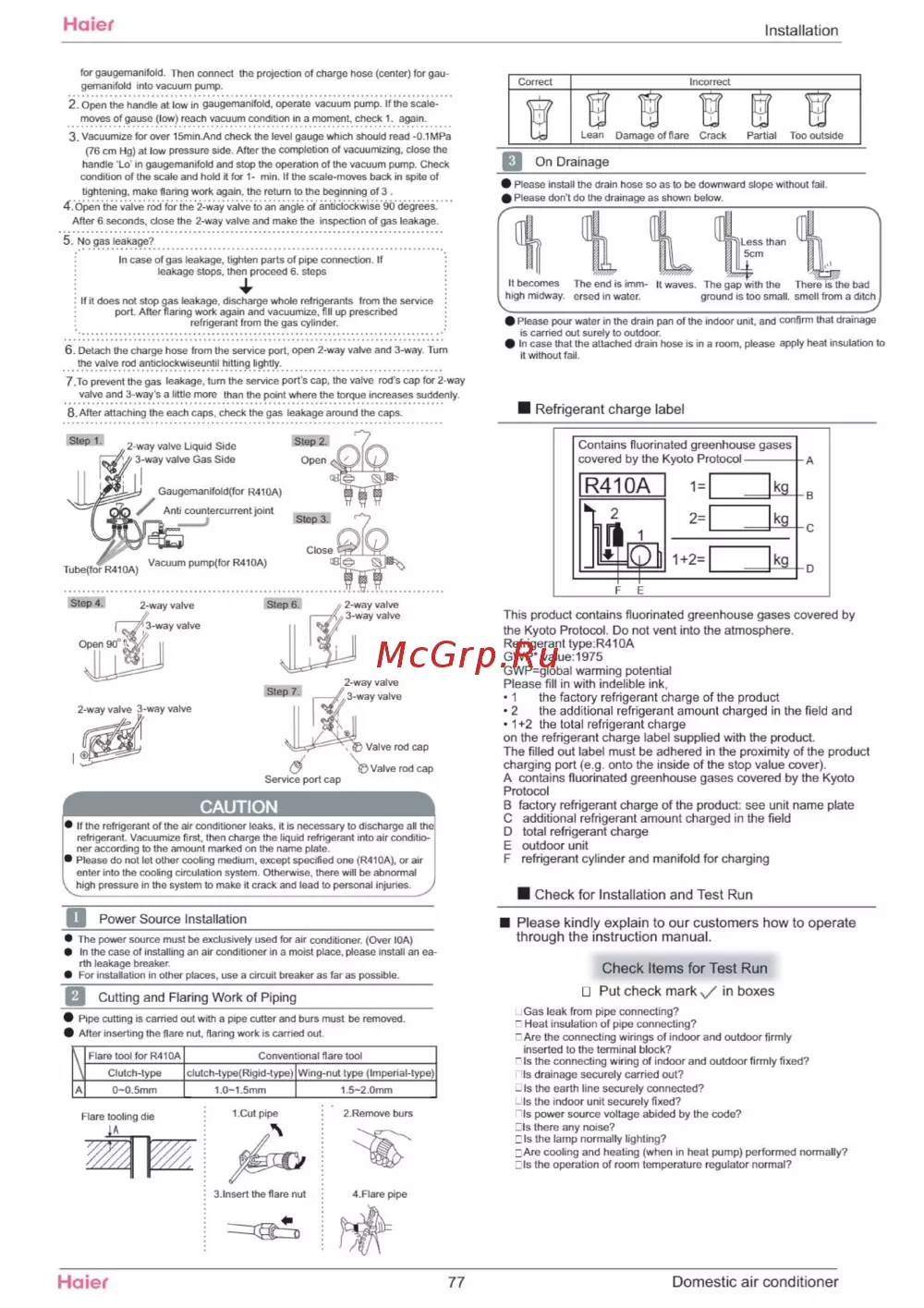

Haier Installation for gaugemanifold Then connect the projection of charge hose center for gau gemanifold into vacuum pump 2 Open the handle at low in gaugemanifold operate vacuum pump If the scale moves of gause low reach vacuum condition in a moment check 1 again 3 Vacuumize for over 15min And check the level gauge which should read 0 1 MPa 76 cm Hg at low pressure side After the completion of vacuumizing close the On Drainage handle Lo in gaugemanifold and stop the operation of the vacuum pump Check condition of the scale and hold it for 1 min If the scale moves back in spite of Please install the drain hose so as to be downward slope without fail tightening make flaring work again the return to the beginning of 3 Please don t do the drainage as shown below 4 Open the valve rod for the 2 way valve to an angle of anticlockwise 90 degrees After 6 seconds close the 2 way valve and make the inspection of gas leakage I 5 No gas leakage In case of gas leakage tighten parts of pipe connection If leakage stops then proceed 6 steps If it does not stop gas leakage discharge whole refrigerants from the service port After flaring work again and vacuumize fill up prescribed refrigerant from the gas cylinder Please pour water in the drain pan of the indoor unit and confirm that drainage is carried out surely to outdoor In case that the attached drain hose is in a room please apply heat insulation 6 Detach the charge hose from the service port open 2 way valve and 3 way Turn it without fail the valve rod anticlockwiseuntil hitting lightly 9 7 To prevent the gas leakage turn the service port s cap the valve rod s cap for 2 way valve and 3 way s a little more than the point where the torque increases suddenly Refrigerant charge label 8 After attaching the each caps check the gas leakage around the caps CAUTION If the refrigerant of the air conditioner leaks it is necessary to discharge all the refrigerant Vacuumize first then charge the liquid refrigerant into air conditio ner according to the amount marked on the name plate Please do not let other cooling medium except specified one R410A or air enter into the cooling circulation system Otherwise there will be abnormal k high pressure in the system to make it crack and lead to personal injuries u Power Source Installation The power source must be exclusively used for air conditioner Over I0A In the case of installing an air conditioner in a moist place please install an ea rth leakage breaker For installation in other places use a circuit breaker as far as possible a Cutting and Flaring Work of Piping Check for Installation and Test Run Please kindly explain to our customers how to operate through the instruction manual Check Items for Test Run U Put check mark in boxes Gas leak from pipe connecting Heat insulation of pipe connecting Are the connecting wirings of indoor and outdoor firmly inserted to the terminal block Is the connecting wiring of indoor and outdoor firmly fixed Is drainage securely carried out Is the earth line securely connected Is the indoor unit securely fixed Is power source voltage abided by the code ZIs there any noise Is the lamp normally lighting Are cooling and heating when in heat pump performed normally Is the operation of room temperature regulator normal Pipe cutting is carried out with a pipe cutter and burs must be removed W After inserting the flare nut flaring work is carried out Flare tool for R410A Conventional flare tool Clutch type clutch type Rigid type Wing nut type Imperial type A 0 0 5mm 1 0 1 5mm 1 5 2 0mm Flare tooling die Haier This product contains fluorinated greenhouse gases covered by the Kyoto Protocol Do not vent into the atmosphere Refrigerant type R410A GWP value 1975 GWP global warming potential Please fill in with indelible ink 1 the factory refrigerant charge of the product 2 the additional refrigerant amount charged in the field and 1 2 the total refrigerant charge on the refrigerant charge label supplied with the product The filled out label must be adhered in the proximity of the product charging port e g onto the inside of the stop value cover A contains fluorinated greenhouse gases covered by the Kyoto Protocol B factory refrigerant charge of the product see unit name plate C additional refrigerant amount charged in the field D total refrigerant charge E outdoor unit F refrigerant cylinder and manifold for charging 77 Domestic air conditioner
