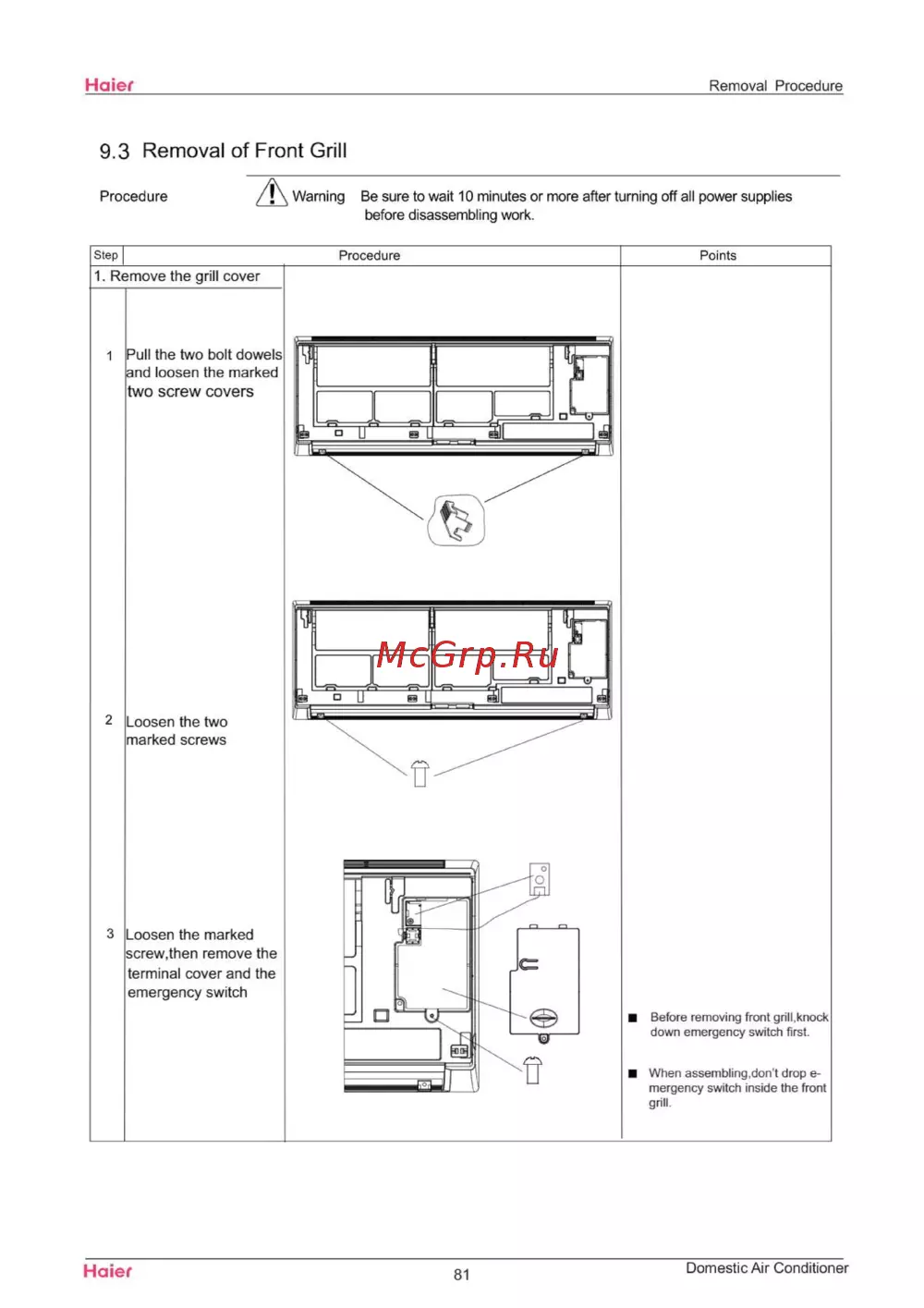

Haier Removal Procedure 9 3 Removal of Front Grill Procedure A Warning Step Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work Procedure Points 1 Remove the grill cover Pull the two bolt dowels and loosen the marked two screw covers Loosen the two marked screws 3 Loosen the marked screw then remove the terminal cover and the emergency switch Before removing front grill knock down emergency switch first When assembling don t drop emergency switch inside the front grill Haier 81 Domestic Air Conditioner
