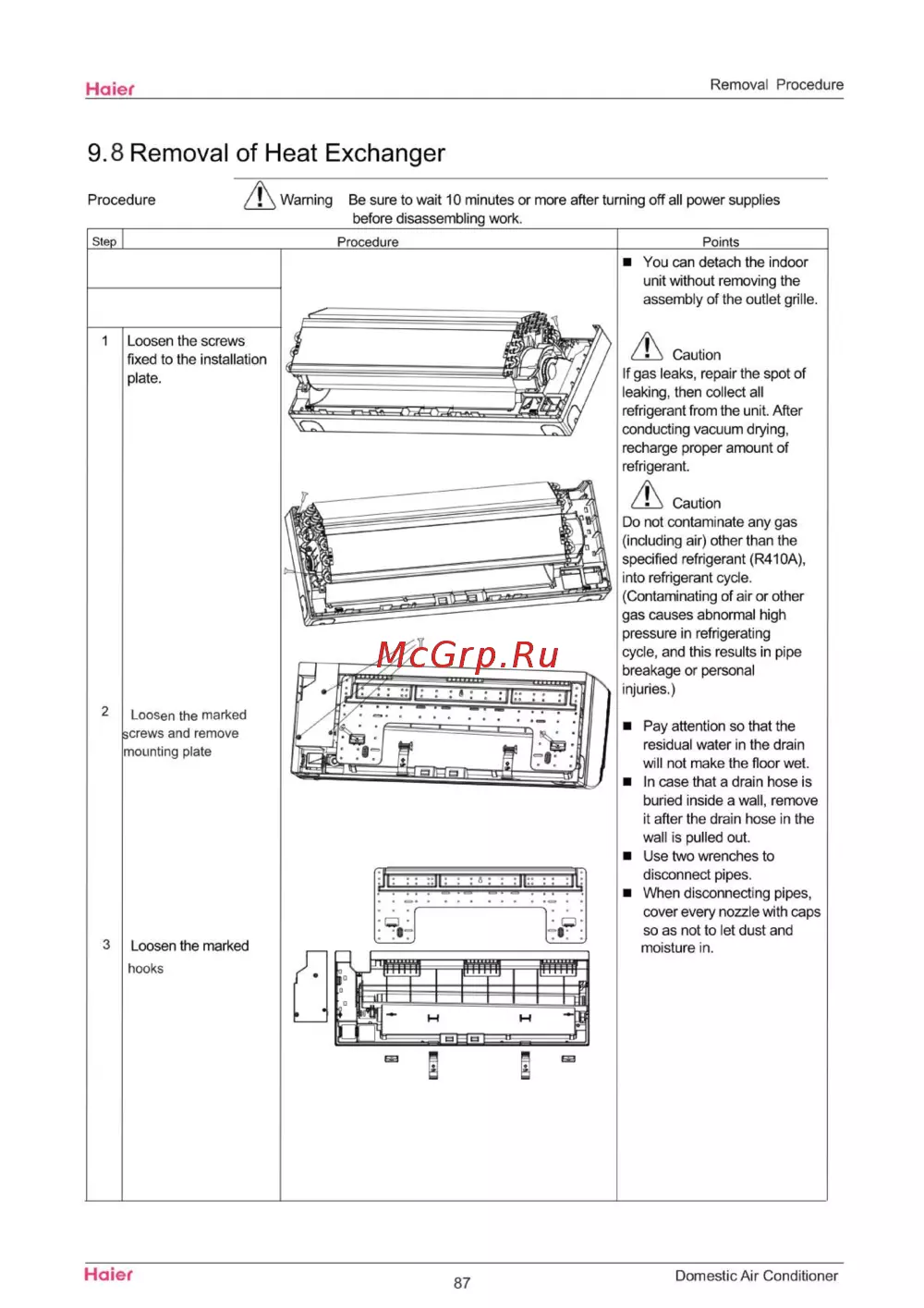

Removal Procedure Haier 9 8 Removal of Heat Exchanger Procedure Step Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work Procedure Points You can detach the indoor unit without removing the assembly of the outlet grille 1 Loosen the screws fixed to the installation plate A Caution If gas leaks repair the spot of leaking then collect all refrigerant from the unit After conducting vacuum drying recharge proper amount of refrigerant t Caution Do not contaminate any gas including air other than the specified refrigerant R410A into refrigerant cycle Contaminating of air or other gas causes abnormal high pressure in refrigerating cycle and this results in pipe breakage or personal injuries Loosen the marked screws and remove mounting plate Pay attention so that the residual water in the drain will not make the floor wet In case that a drain hose is buried inside a wall remove it after the drain hose in the wall is pulled out Use two wrenches to disconnect pipes When disconnecting pipes cover every nozzle with caps so as not to let dust and moisture in 3 Loosen the marked hooks Haier 87 Domestic Air Conditioner
