Description of Parts

Main Unit

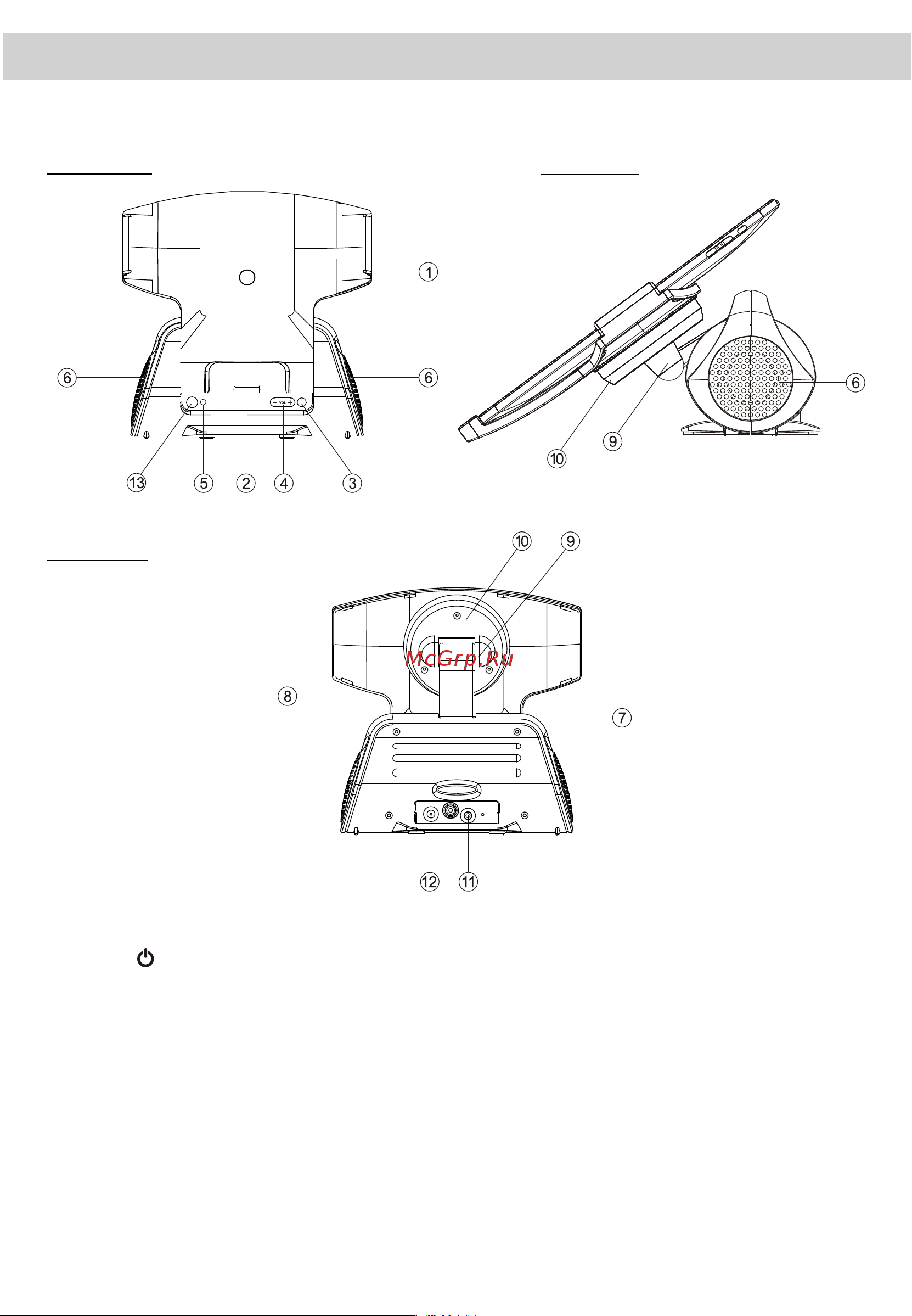

Front View

Side View

Rear View

1.iPad Support Frame

2.iPad / iPhone / iPod docking connector

3.POWER button ---- Turn the unit on/off ; Select iPad or AUX IN (Auxiliary) mode

4.VOLUME + / - button ----- Adjust volume level up or down

5.Power Status indicator

6.Speakers

7.Base Hinge ---- For Support Arm angle adjustment.

8.Support Arm ----- Connect the Support Frame to the main unit.

9.Frame Hinge ----- To adjust the viewing angle of the iPad Support Frame forward or

back.

10.Rotating Head ----- To rotate the Support Frame 90 degrees counterclockwise (front view) for

landscape operation.

11.AUX IN jack ----- Auxiliary audio signal input

12.DC-in jack -----For the connection of external DC power supply

13.Remote Control Infrared sensor
