P-touch Template Command Reference
- 29 -
5. Precautions

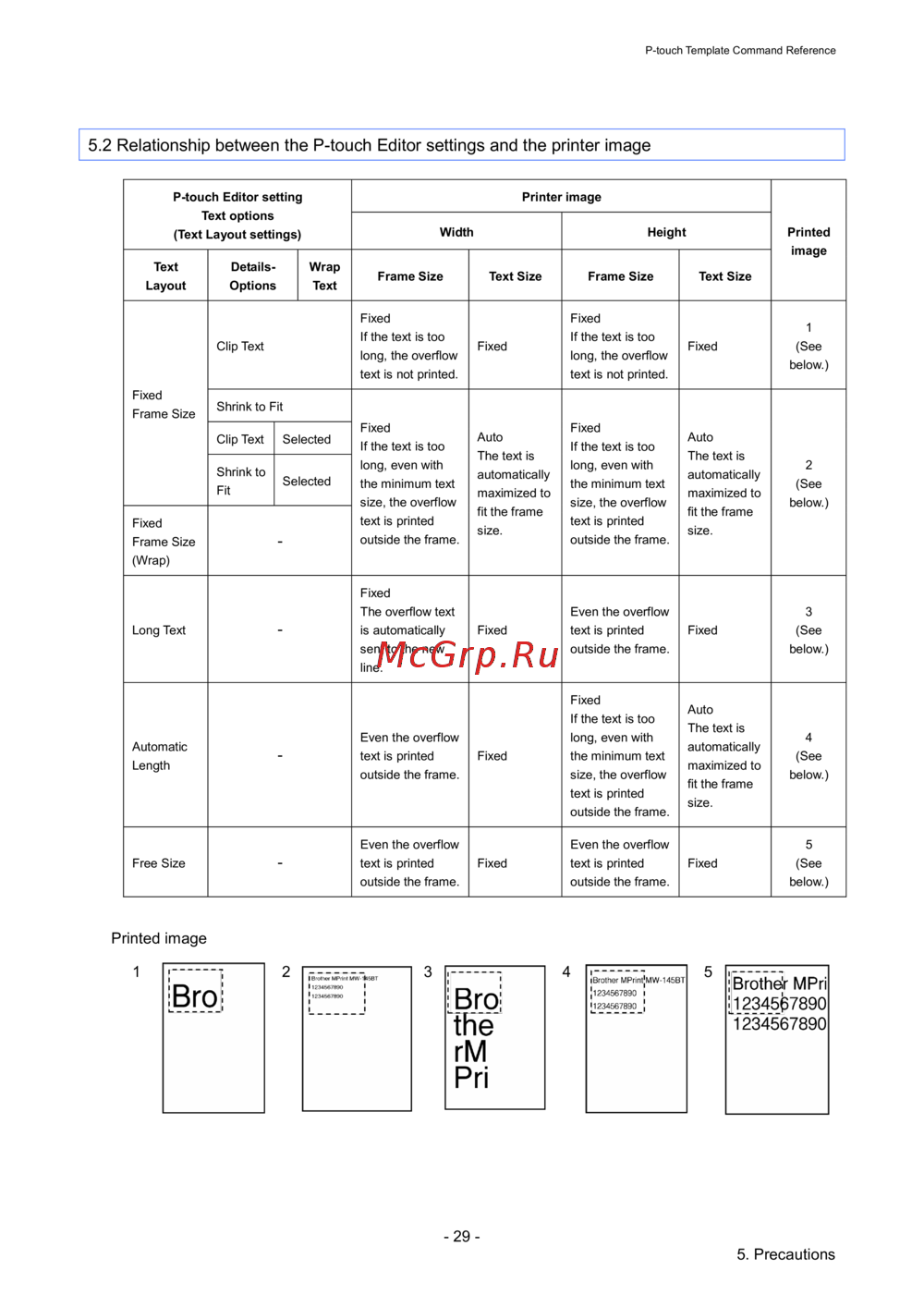

5.2 Relationship between the P-touch Editor settings and the printer image
P-touch Editor setting
Text options
(Text Layout settings)
Printer image
Printed
Width Height
Text
Layout
Details-
Options
Wrap
Text
Frame Size Text Size Frame Size Text Size
Fixed
Frame Size
Clip Text
Fixed
If the text is too
long, the overflow
text is not printed.
Fixed
Fixed
If the text is too
long, the overflow
text is not printed.
Fixed
1
(See
below.)
Shrink to Fit
Fixed
If the text is too
long, even with
the minimum text
size, the overflow
text is printed
outside the frame.
Auto
The text is
automatically
maximized to
fit the frame
size.
Fixed
If the text is too
long, even with
the minimum text
size, the overflow
text is printed
outside the frame.
Auto
The text is
automatically
maximized to
fit the frame
size.
2
(See
below.)
Clip Text
Selected
Shrink to
Fit
Selected
Fixed
Frame Size
(Wrap)
-
Long Text -
Fixed
The overflow text
is automatically
sent to the new
line.
Fixed
Even the overflow
text is printed
outside the frame.
Fixed
3
(See
below.)
Automatic
Length
-
Even the overflow
text is printed
outside the frame.
Fixed
Fixed
If the text is too
long, even with
the minimum text
size, the overflow
text is printed
outside the frame.
Auto
The text is
automatically
maximized to
fit the frame
size.
4
(See
below.)
Free Size -
Even the overflow
text is printed
outside the frame.
Fixed
Even the overflow
text is printed
outside the frame.
Fixed
5
(See
below.)
Printed image
1
2
3
4
5
