P-touch Template Command Reference
- 85 -

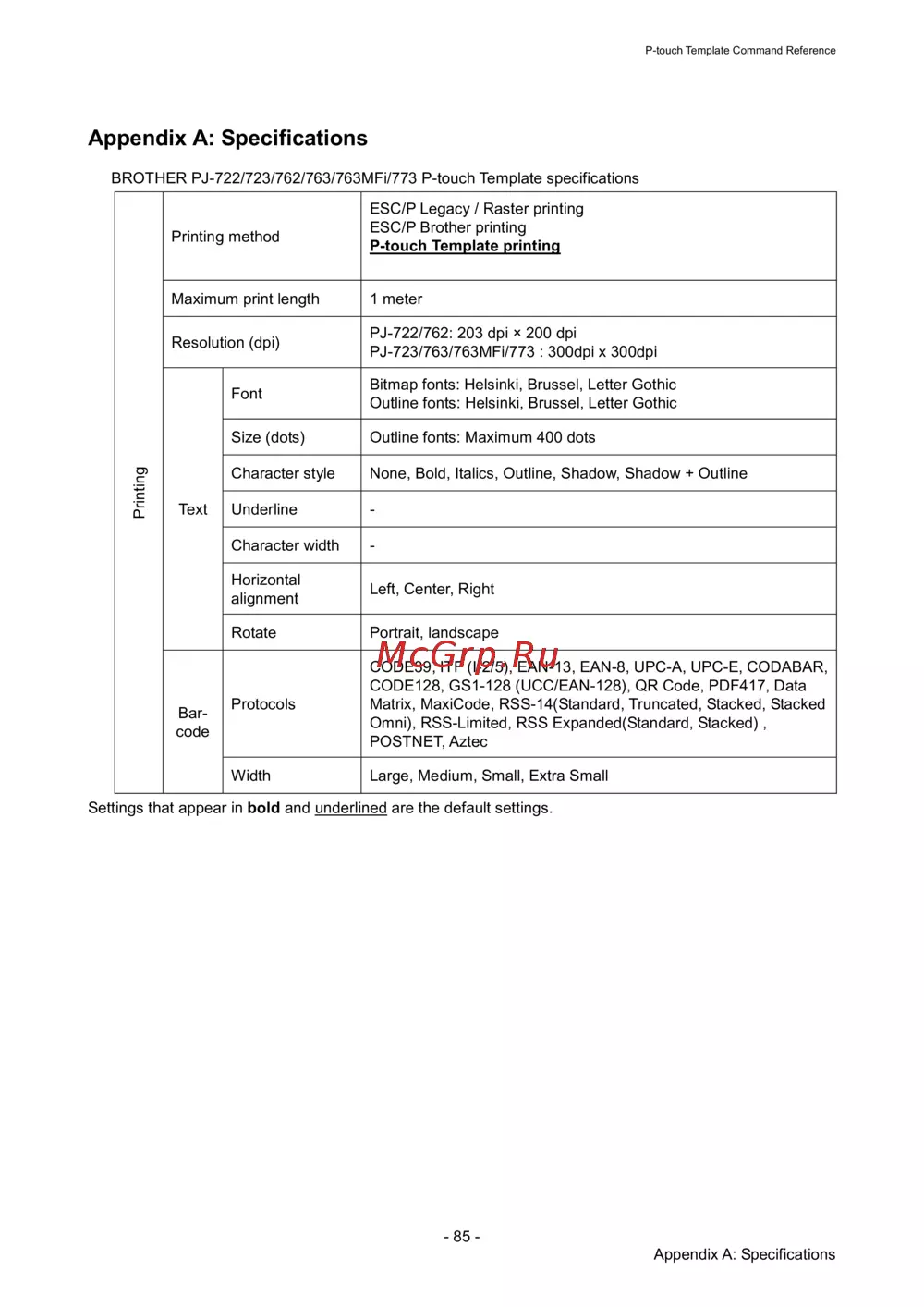

Appendix A: Specifications
Appendix A: Specifications
BROTHER PJ-722/723/762/763/763MFi/773 P-touch Template specifications
Printing
Printing method
ESC/P Legacy / Raster printing
ESC/P Brother printing
P-touch Template printing
Maximum print length
1 meter
Resolution (dpi)
PJ-722/762: 203 dpi × 200 dpi
PJ-723/763/763MFi/773 : 300dpi x 300dpi
Text
Font
Bitmap fonts: Helsinki, Brussel, Letter Gothic
Outline fonts: Helsinki, Brussel, Letter Gothic
Size (dots)
Outline fonts: Maximum 400 dots
Character style
None, Bold, Italics, Outline, Shadow, Shadow + Outline
Underline -
Character width
-
Horizontal
alignment
Left, Center, Right
Rotate
Portrait, landscape
Bar-
code
Protocols
CODE39, ITF (I-2/5), EAN-13, EAN-8, UPC-A, UPC-E, CODABAR,
CODE128, GS1-128 (UCC/EAN-128), QR Code, PDF417, Data
Matrix, MaxiCode, RSS-14(Standard, Truncated, Stacked, Stacked
Omni), RSS-Limited, RSS Expanded(Standard, Stacked) ,
POSTNET, Aztec
Width
Large, Medium, Small, Extra Small
Settings that appear in bold and underlined are the default settings.
