Справочник по языку команд Brother ESC Страница: 14

Brother PJ-723 [14/122] Step 4 select the font type

ESC/P Brother Command Reference

- 8 -

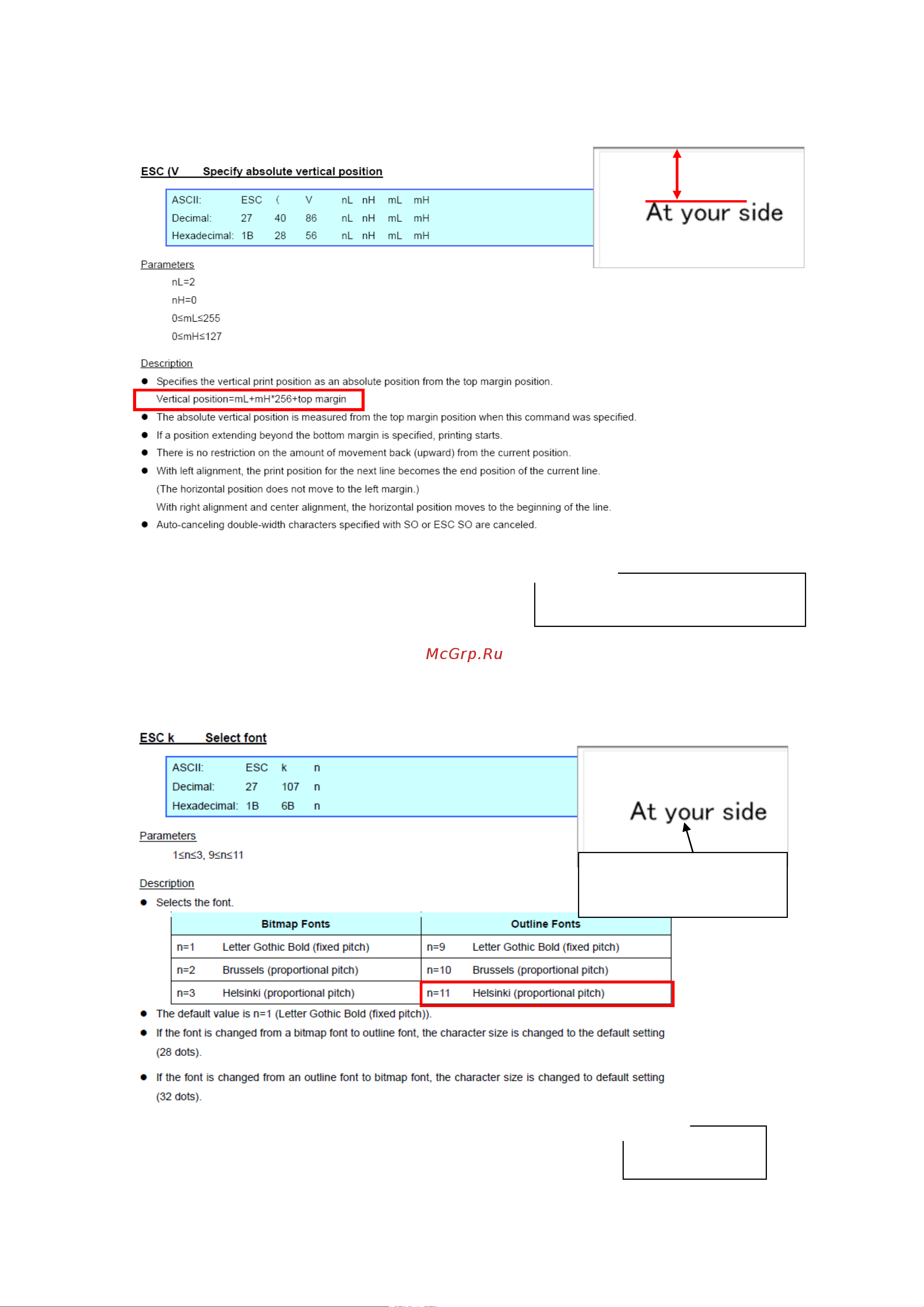

2. Examples of Using ESC/P Brother Commands

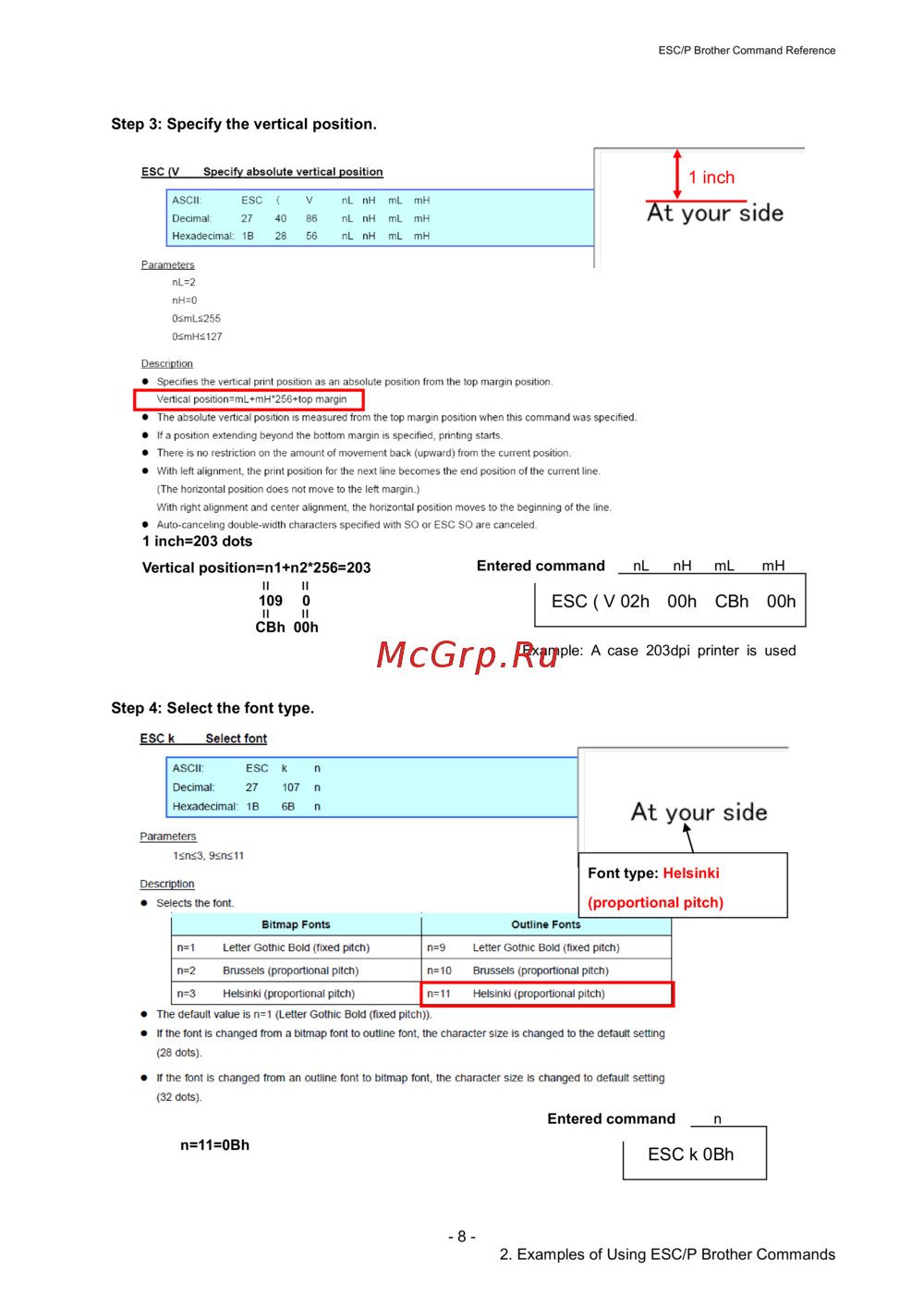

Step 3: Specify the vertical position.

1 inch

1 inch=203 dots

Vertical position=n1+n2*256=203

= =

109

CBh

= =

00h

ESC ( V 02h 00h CBh 00h

Entered

command

Example: A case 203dpi printer is used

Step 4: Select the font type.

Entered command

ESC k 0Bh

n=11=0Bh

Font type: Helsinki

(proportional pitch)
