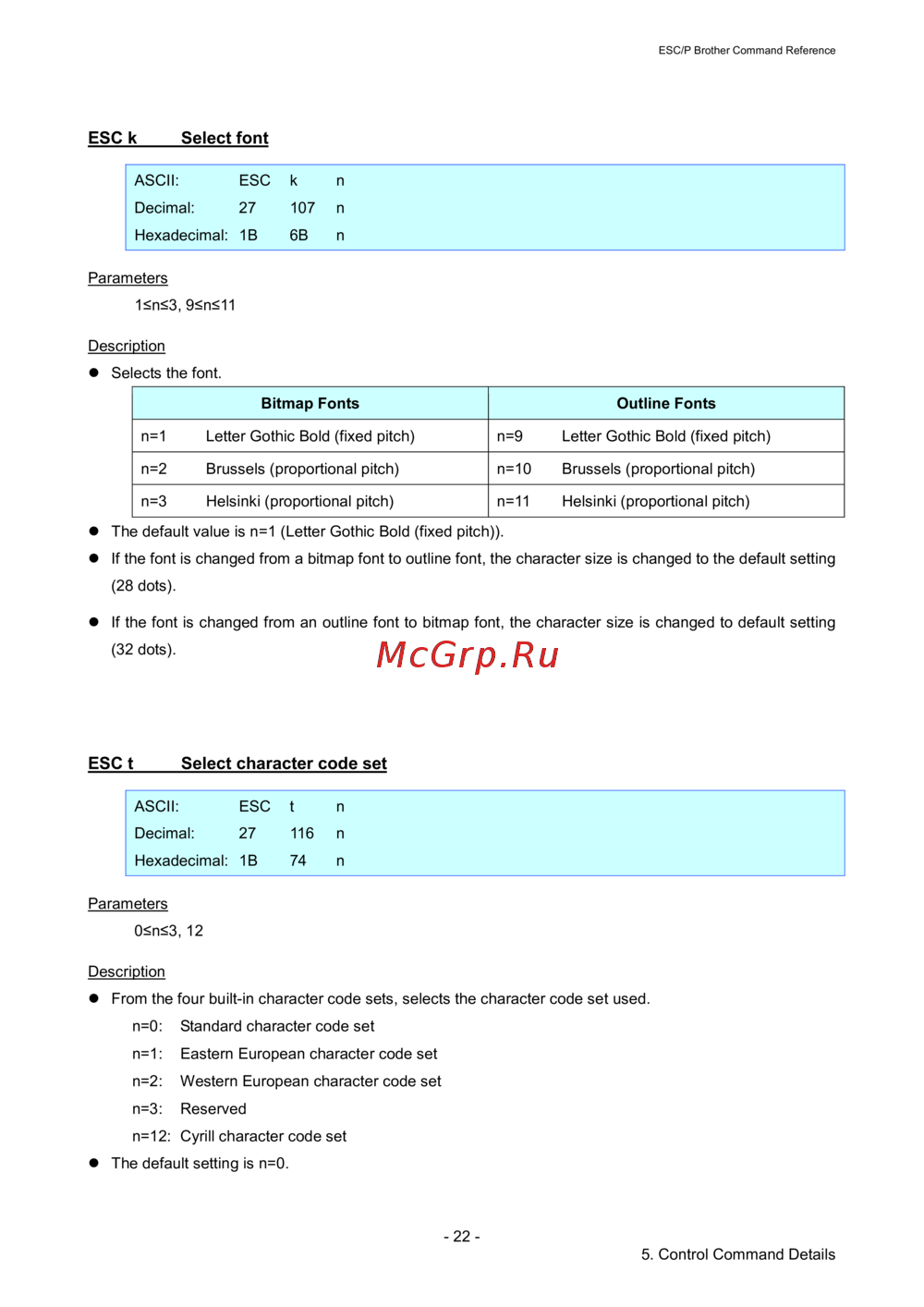

ESC/P Brother Command Reference
- 22 -
5. Control Command Details
ESC k Select font
ASCII: ESC k n
Decimal: 27 107 n
Hexadecimal: 1B 6B n
Parameters
1≤n≤3, 9≤n≤11
Description
Selects the font.
Bitmap Fonts
Outline Fonts
n=1 Letter Gothic Bold (fixed pitch)
n=9 Letter Gothic Bold (fixed pitch)
n=2 Brussels (proportional pitch)
n=10 Brussels (proportional pitch)
n=3 Helsinki (proportional pitch)
n=11 Helsinki (proportional pitch)
The default value is n=1 (Letter Gothic Bold (fixed pitch)).
If the font is changed from a bitmap font to outline font, the character size is changed to the default setting
(28 dots).
If the font is changed from an outline font to bitmap font, the character size is changed to default setting
(32 dots).
ESC t Select character code set
ASCII: ESC t n
Decimal: 27 116 n
Hexadecimal: 1B 74 n
Parameters
0≤n≤3, 12
Description
From the four built-in character code sets, selects the character code set used.
n=0:
Standard character code set
n=1:
Eastern European character code set
n=2:
Western European character code set
n=3:
Reserved
n=12:
Cyrill character code set
The default setting is n=0.
