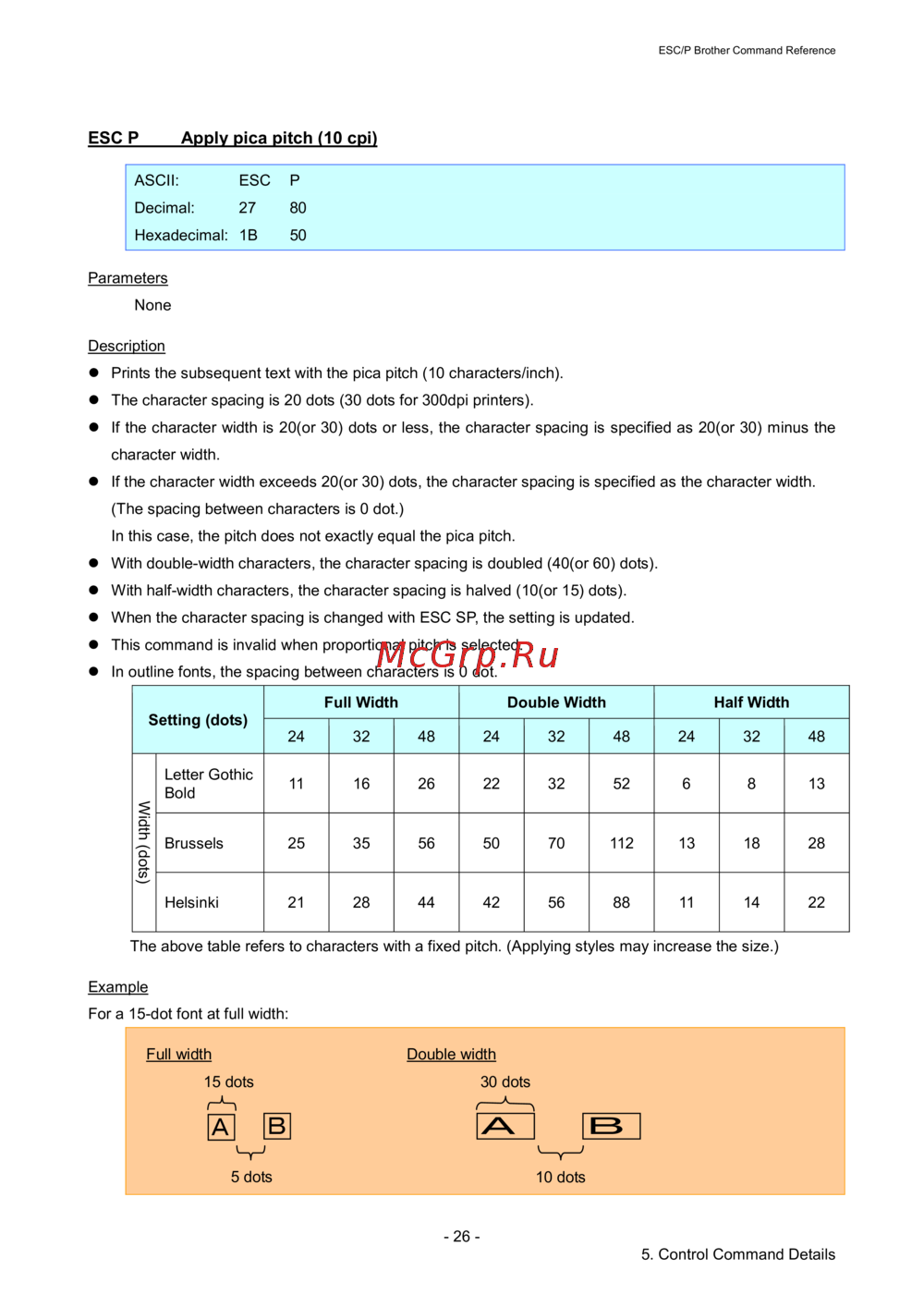

ESC/P Brother Command Reference
- 26 -
5. Control Command Details
ESC P Apply pica pitch (10 cpi)
ASCII: ESC P
Decimal: 27 80
Hexadecimal: 1B 50
Parameters
None
Description
Prints the subsequent text with the pica pitch (10 characters/inch).
The character spacing is 20 dots (30 dots for 300dpi printers).
If the character width is 20(or 30) dots or less, the character spacing is specified as 20(or 30) minus the
character width.
If the character width exceeds 20(or 30) dots, the character spacing is specified as the character width.
(The spacing between characters is 0 dot.)
In this case, the pitch does not exactly equal the pica pitch.
With double-width characters, the character spacing is doubled (40(or 60) dots).
With half-width characters, the character spacing is halved (10(or 15) dots).
When the character spacing is changed with ESC SP, the setting is updated.
This command is invalid when proportional pitch is selected.
In outline fonts, the spacing between characters is 0 dot.
Setting (dots)
Full Width
Double Width
Half Width
24
32
48
24
32
48
24
32
48
Width (dots)
Letter Gothic
Bold
11 16 26 22 32 52 6 8 13
Brussels 25 35 56 50 70 112 13 18 28
Helsinki 21 28 44 42 56 88 11 14 22
The above table refers to characters with a fixed pitch. (Applying styles may increase the size.)
Example
For a 15-dot font at full width:
Ａ
Ｂ
5 dots
15 dots
Ａ
Ｂ
30 dots
10 dots
Full width
Double width
