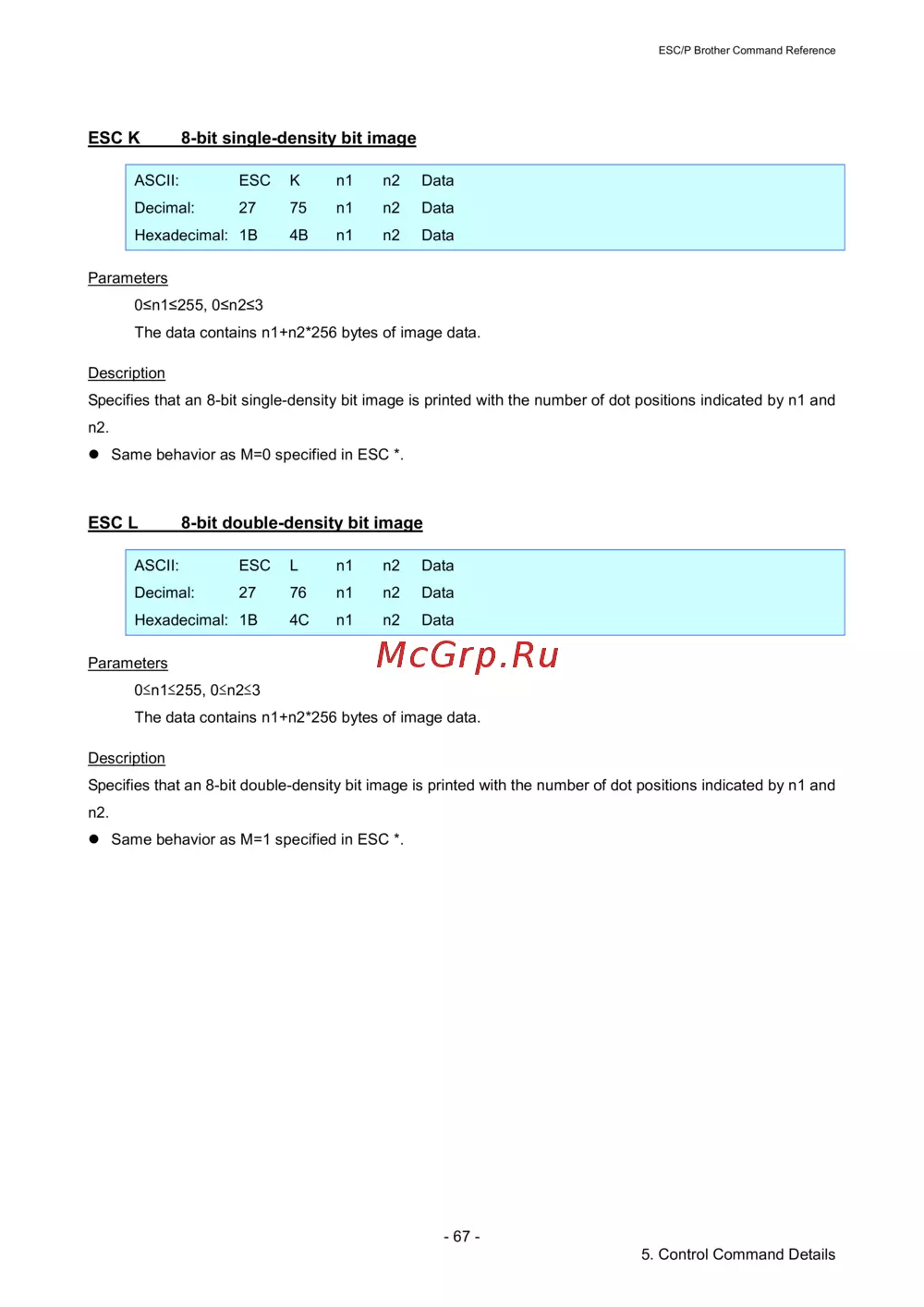

ESC/P Brother Command Reference
- 67 -
5. Control Command Details
ESC K 8-bit single-density bit image
ASCII: ESC K n1 n2 Data
Decimal: 27 75 n1 n2 Data
Hexadecimal: 1B 4B n1 n2 Data
Parameters
0≤n1≤255, 0≤n2≤3
The data contains n1+n2*256 bytes of image data.
Description
Specifies that an 8-bit single-density bit image is printed with the number of dot positions indicated by n1 and
n2.
Same behavior as M=0 specified in ESC *.
ESC L 8-bit double-density bit image
ASCII: ESC L n1 n2 Data
Decimal: 27 76 n1 n2 Data
Hexadecimal: 1B 4C n1 n2 Data
Parameters
0≤n1≤255, 0≤n2≤3
The data contains n1+n2*256 bytes of image data.
Description
Specifies that an 8-bit double-density bit image is printed with the number of dot positions indicated by n1 and
n2.
Same behavior as M=1 specified in ESC *.
