ESC/P Brother Command Reference

- 69 -

5. Control Command Details

5.9 Advanced commands

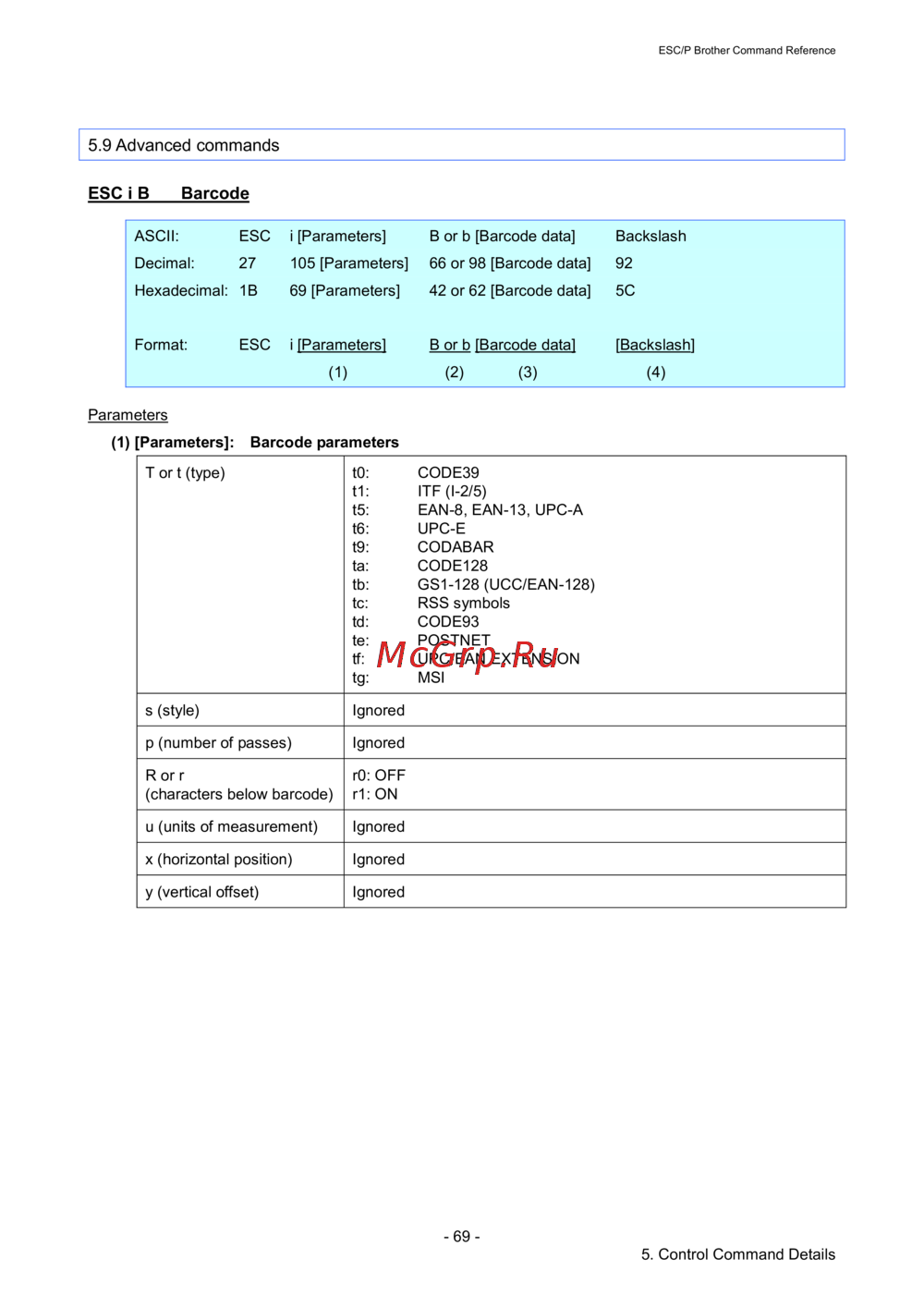

ESC i B Barcode

ASCII: ESC i [Parameters] B or b [Barcode data] Backslash

Decimal: 27 105 [Parameters] 66 or 98 [Barcode data] 92

Hexadecimal: 1B 69 [Parameters] 42 or 62 [Barcode data] 5C

Format: ESC i [Parameters] B or b [Barcode data] [Backslash]

(1) (2) (3) (4)

Parameters

(1) [Parameters]: Barcode parameters

T or t (type)

t0: CODE39

t1: ITF (I-2/5)

t5: EAN-8, EAN-13, UPC-A

t6: UPC-E

t9: CODABAR

ta: CODE128

tb: GS1-128 (UCC/EAN-128)

tc: RSS symbols

td: CODE93

te: POSTNET

tf: UPC/EAN EXTENSION

tg: MSI

s (style)

Ignored

p (number of passes)

Ignored

R or r

(characters below barcode)

r0: OFF

r1: ON

u (units of measurement)

Ignored

x (horizontal position)

Ignored

y (vertical offset)

Ignored
