ESC/P Brother Command Reference
- 83 -
5. Control Command Details

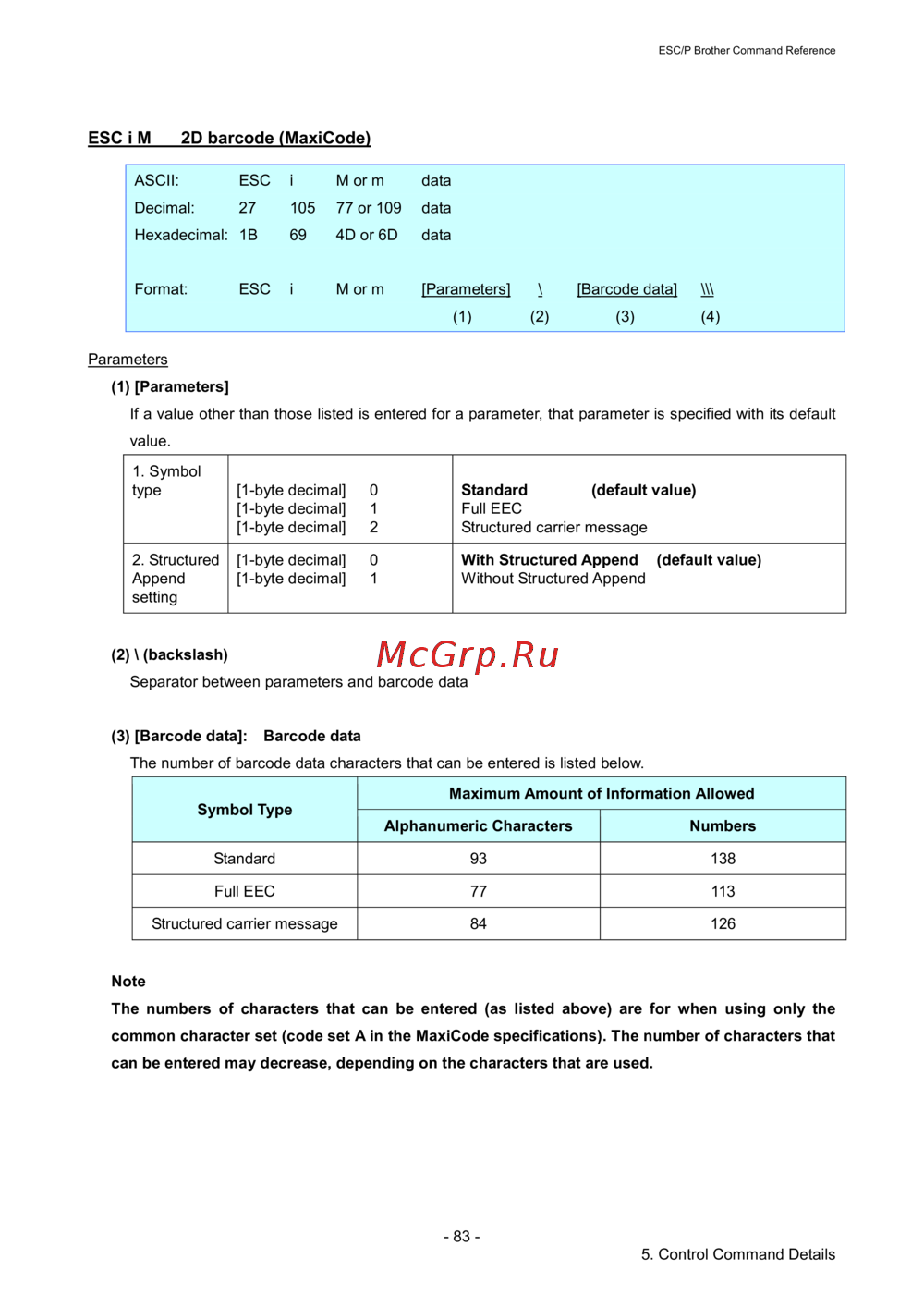

ESC i M 2D barcode (MaxiCode)
ASCII: ESC i M or m data
Decimal: 27 105 77 or 109 data
Hexadecimal: 1B 69 4D or 6D data
Format: ESC i M or m [Parameters] \ [Barcode data] \\\
(1) (2) (3) (4)
Parameters
(1) [Parameters]
If a value other than those listed is entered for a parameter, that parameter is specified with its default
value.
1. Symbol
type
[1-byte decimal] 0
[1-byte decimal] 1
[1-byte decimal] 2
Standard (default value)
Full EEC
Structured carrier message
2. Structured
Append
setting
[1-byte decimal] 0
[1-byte decimal] 1
With Structured Append (default value)
Without Structured Append
(2) \ (backslash)
Separator between parameters and barcode data
(3) [Barcode data]: Barcode data
The number of barcode data characters that can be entered is listed below.
Symbol Type
Maximum Amount of Information Allowed
Alphanumeric Characters
Numbers
Standard
93
138
Full EEC
77
113
Structured carrier message
84
126
Note
The numbers of characters that can be entered (as listed above) are for when using only the
common character set (code set A in the MaxiCode specifications). The number of characters that
can be entered may decrease, depending on the characters that are used.
