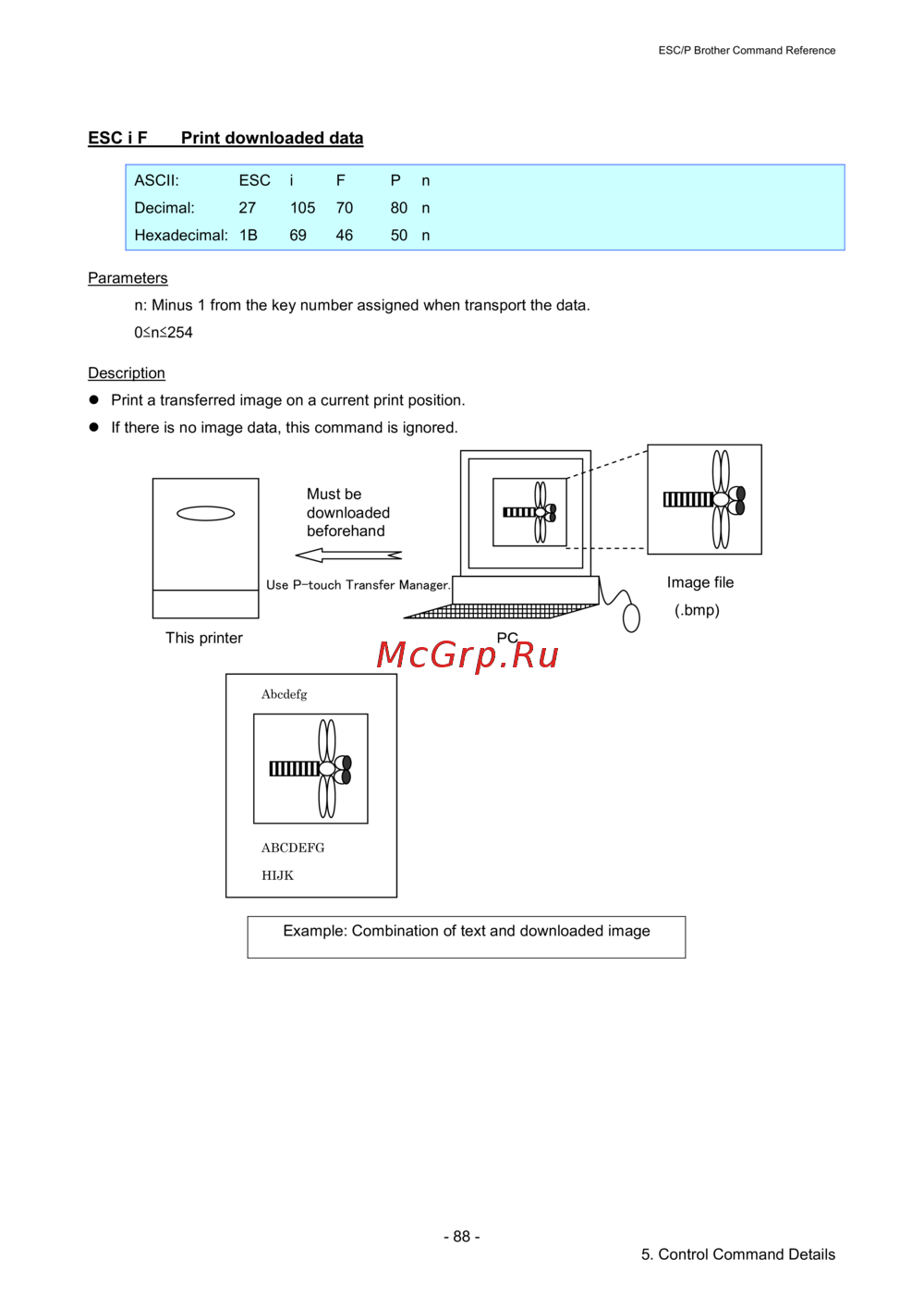

Справочник по языку команд Brother ESC Страница: 94

Brother PJ-723 [94/122] Esc i f print downloaded data

ESC/P Brother Command Reference

- 88 -

5. Control Command Details

ESC i F Print downloaded data

ASCII: ESC i F P n

Decimal: 27 105 70 80 n

Hexadecimal: 1B 69 46 50 n

Parameters

n: Minus 1 from the key number assigned when transport the data.

0≤n≤254

Description

 Print a transferred image on a current print position.

 If there is no image data, this command is ignored.

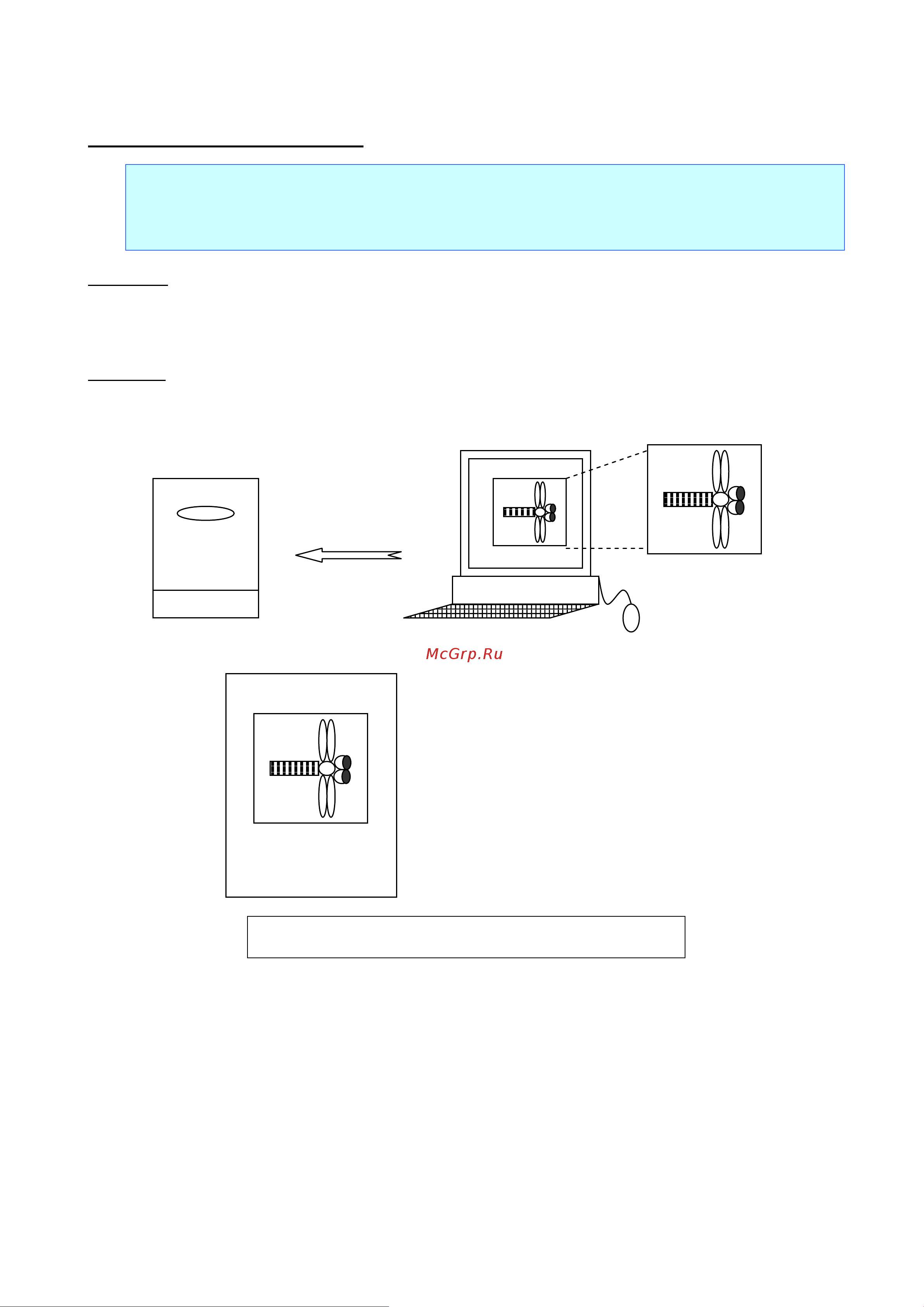

This printer

ＰＣ

Must be

downloaded

beforehand

Image file

(.bmp)

Abcdefg

ABCDEFG

HIJK

Use P-touch Transfer Manager.

Example: Combination of text and downloaded image
