Indesit 7OFIM 20K.A_IX [2/20] Installation

! Before placing your new appliance into operation

please read these operating instructions carefully.

They contain important information for safe use, for

installation and for care of the appliance.

! Please keep these operating instructions for future

reference. Pass them on to possible new owners of

the appliance.

Positioning

! Keep packaging material out of the reach of

children. It can become a choking or suffocation

hazard. (see Precautions and tips).

! The appliance must be installed by a qualified

person in compliance with the instructions provided.

Incorrect installation may cause harm to persons,

animals or may damage property.

Fitting the appliance

Use the appropriate cabinet to ensure that the

appliance functions properly.

• The panels adjacent to the oven must be made of

heat-resistant material.

• Cabinets with a veneer exterior must be assembled

with glues which can withstand temperatures of up

to 100°C.

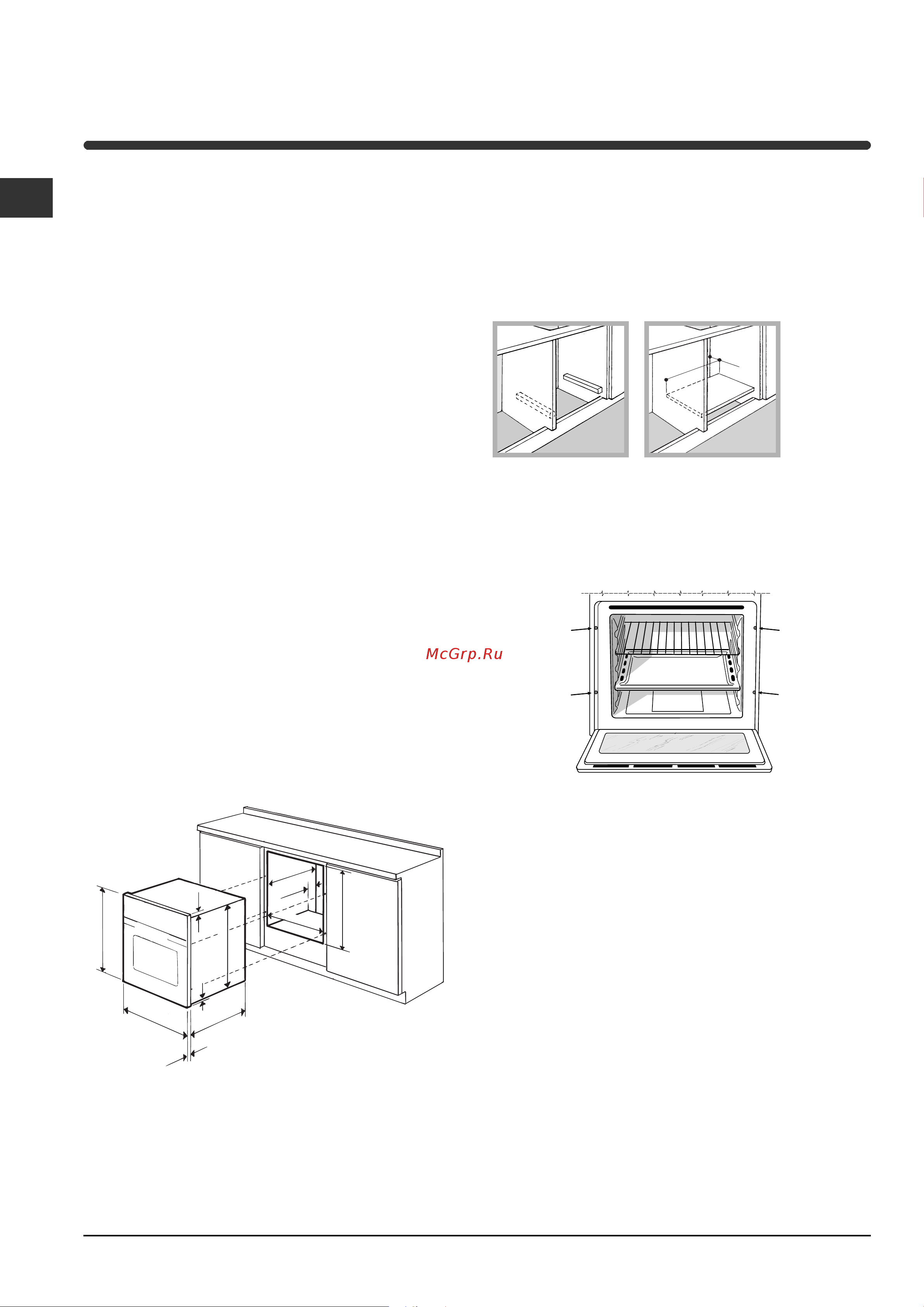

• to install the oven under the counter (see diagram)

and in a kitchen unit, the cabinet must have the

following dimensions:

! The appliance must not come into contact with

electrical parts once it has been installed.

The consumption indications on the data plate have

been calculated for this type of installation.

Ventilation

To ensure good ventilation, the back panel of the

cabinet must be removed. It is advisable to install the

oven so that it rests on two strips of wood, or on a

completely flat surface with an opening of at least 45 x

560 mm (see diagrams).

Centring and fastening

Secure the appliance to the cabinet by opening the

oven door and putting 4 screws into the 4 holes of the

outer frame.

! All parts which ensure the safe operation of the

appliance must not be removable without the aid of a

tool.

Installation

595 mm.

24 mm.

545 mm.

5 mm.

567 mm.

23 mm.

575-585 mm.

45 mm.

560 mm.

547 mm. min.

560 mm.

45 mm.
