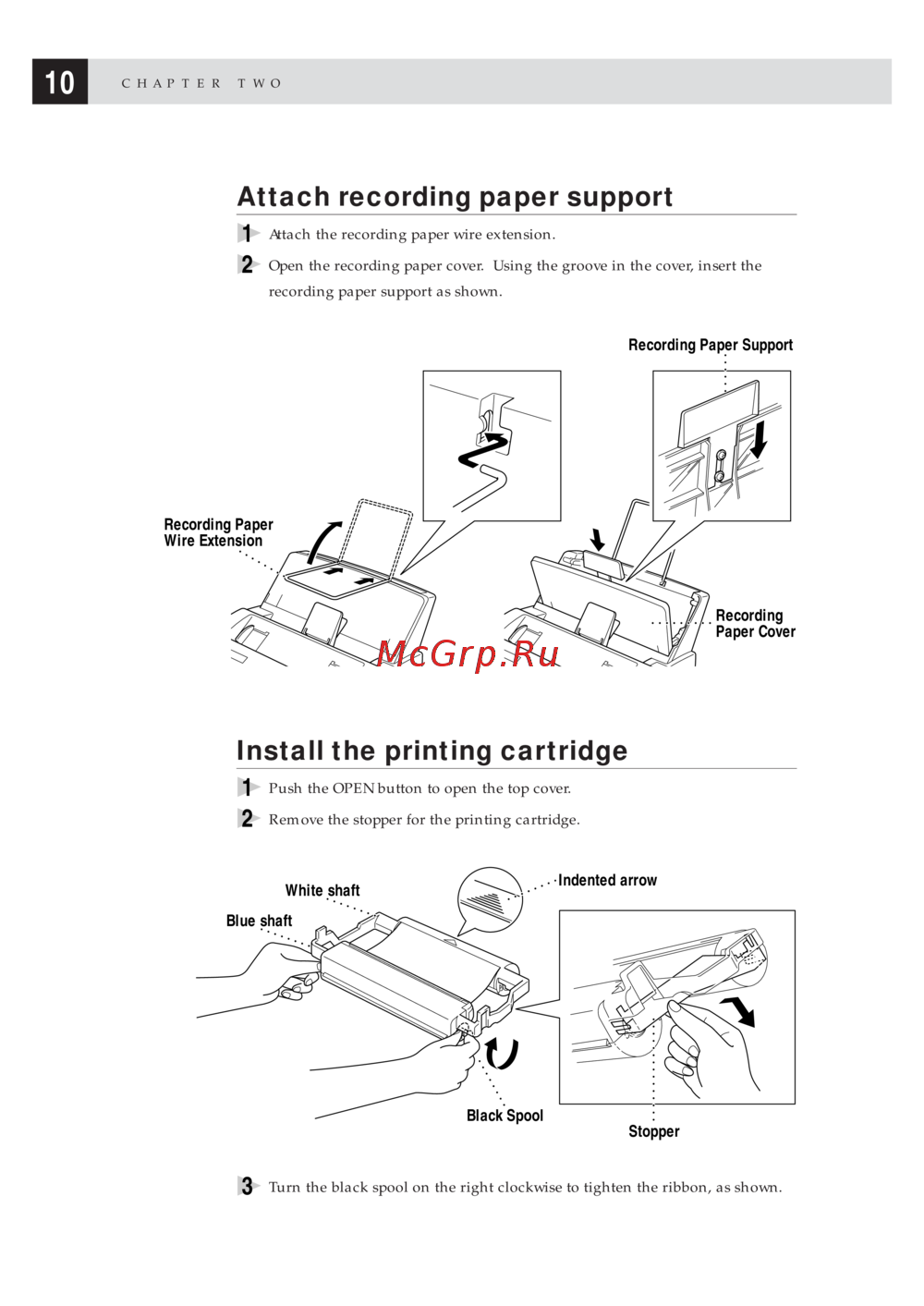

10
CHAPTER TWO
Attach recording paper support
1
Attach the recording paper wire extension.
2
Open the recording paper cover. Using the groove in the cover, insert the
recording paper support as shown.
Recording
Paper Cover
Recording Paper Support
Recording Paper
Wire Extension
Install the printing cartridge
1
Push the OPEN button to open the top cover.
2
Remove the stopper for the printing cartridge.
Stopper
Black Spool
Blue shaft
White shaft
Indented arrow
3
Turn the black spool on the right clockwise to tighten the ribbon, as shown.
