9

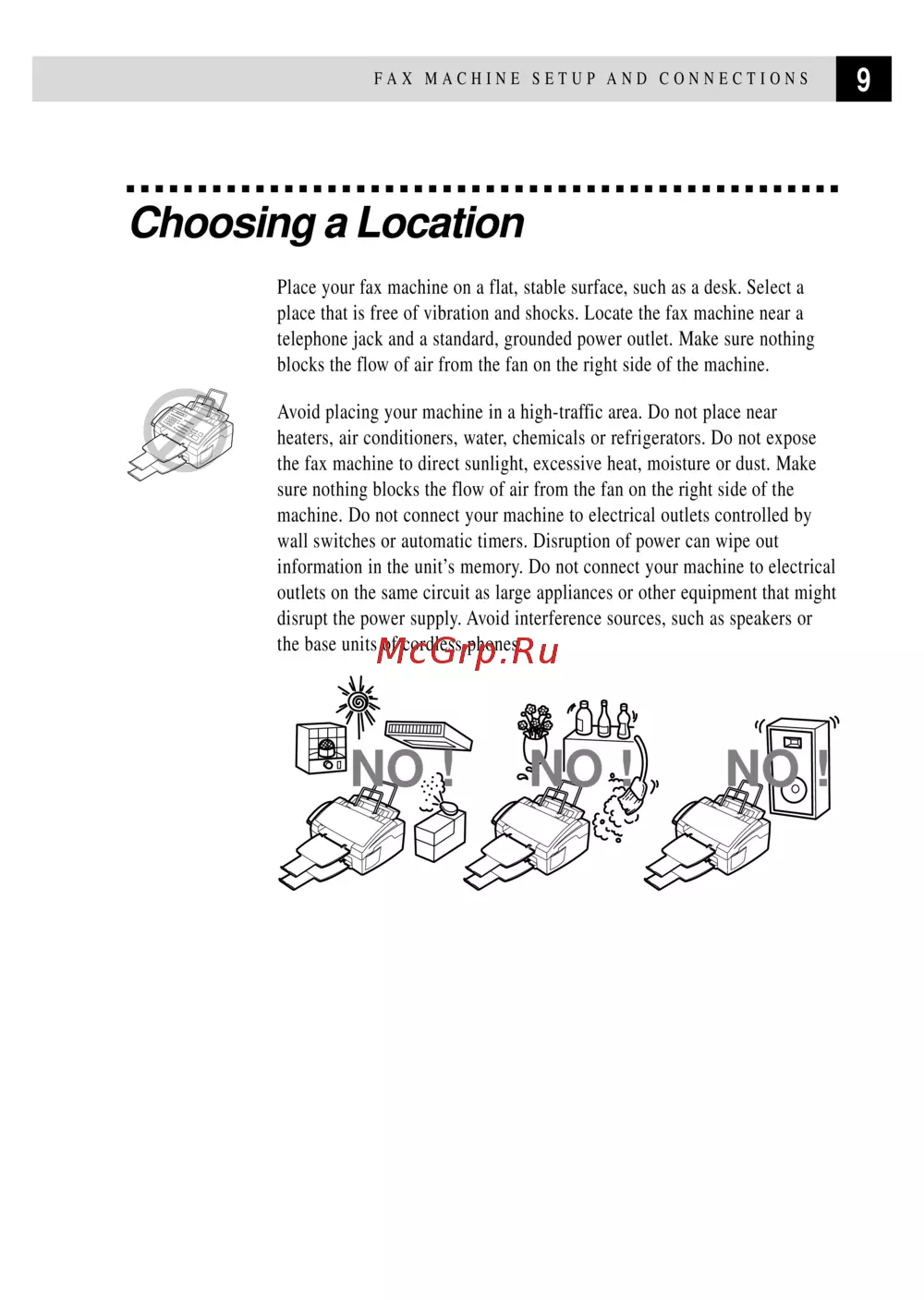

FAX MACHINE SETUP AND CONNECTIONS
Choosing a Location
Place your fax machine on a flat, stable surface, such as a desk. Select a
place that is free of vibration and shocks. Locate the fax machine near a
telephone jack and a standard, grounded power outlet. Make sure nothing
blocks the flow of air from the fan on the right side of the machine.
Avoid placing your machine in a high-traffic area. Do not place near
heaters, air conditioners, water, chemicals or refrigerators. Do not expose
the fax machine to direct sunlight, excessive heat, moisture or dust. Make
sure nothing blocks the flow of air from the fan on the right side of the
machine. Do not connect your machine to electrical outlets controlled by
wall switches or automatic timers. Disruption of power can wipe out
information in the unit’s memory. Do not connect your machine to electrical
outlets on the same circuit as large appliances or other equipment that might
disrupt the power supply. Avoid interference sources, such as speakers or
the base units of cordless phones.
NO !
NO !
NO !
