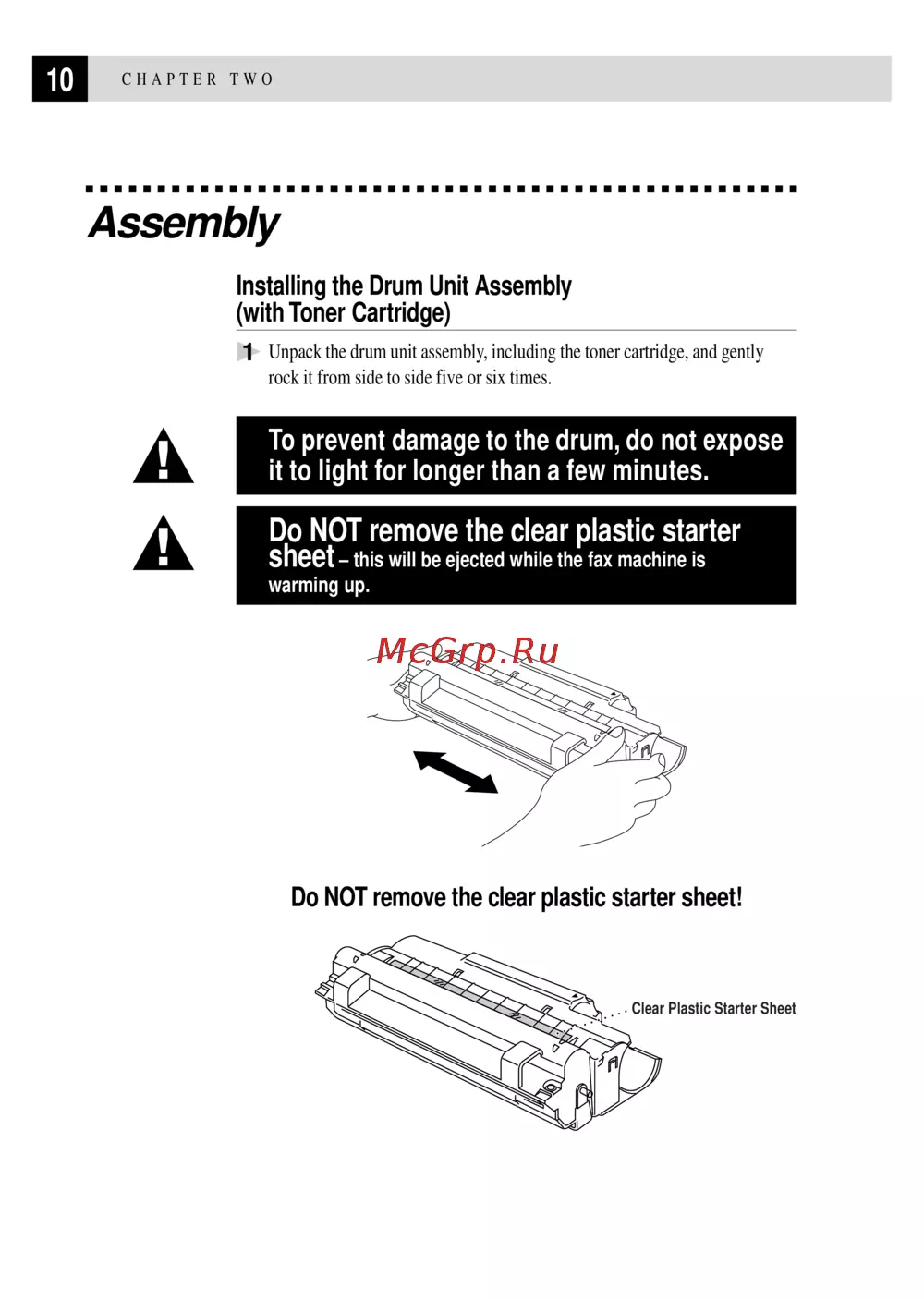

10
CHAPTER TWO
Assembly
Installing the Drum Unit Assembly
(with Toner Cartridge)
1
Unpack the drum unit assembly, including the toner cartridge, and gently
rock it from side to side five or six times.
To prevent damage to the drum, do not expose
it to light for longer than a few minutes.
Do NOT remove the clear plastic starter
sheet
– this will be ejected while the fax machine is
warming up.
Do NOT remove the clear plastic starter sheet!
Clear Plastic Starter Sheet
