PS 112 | 212
15

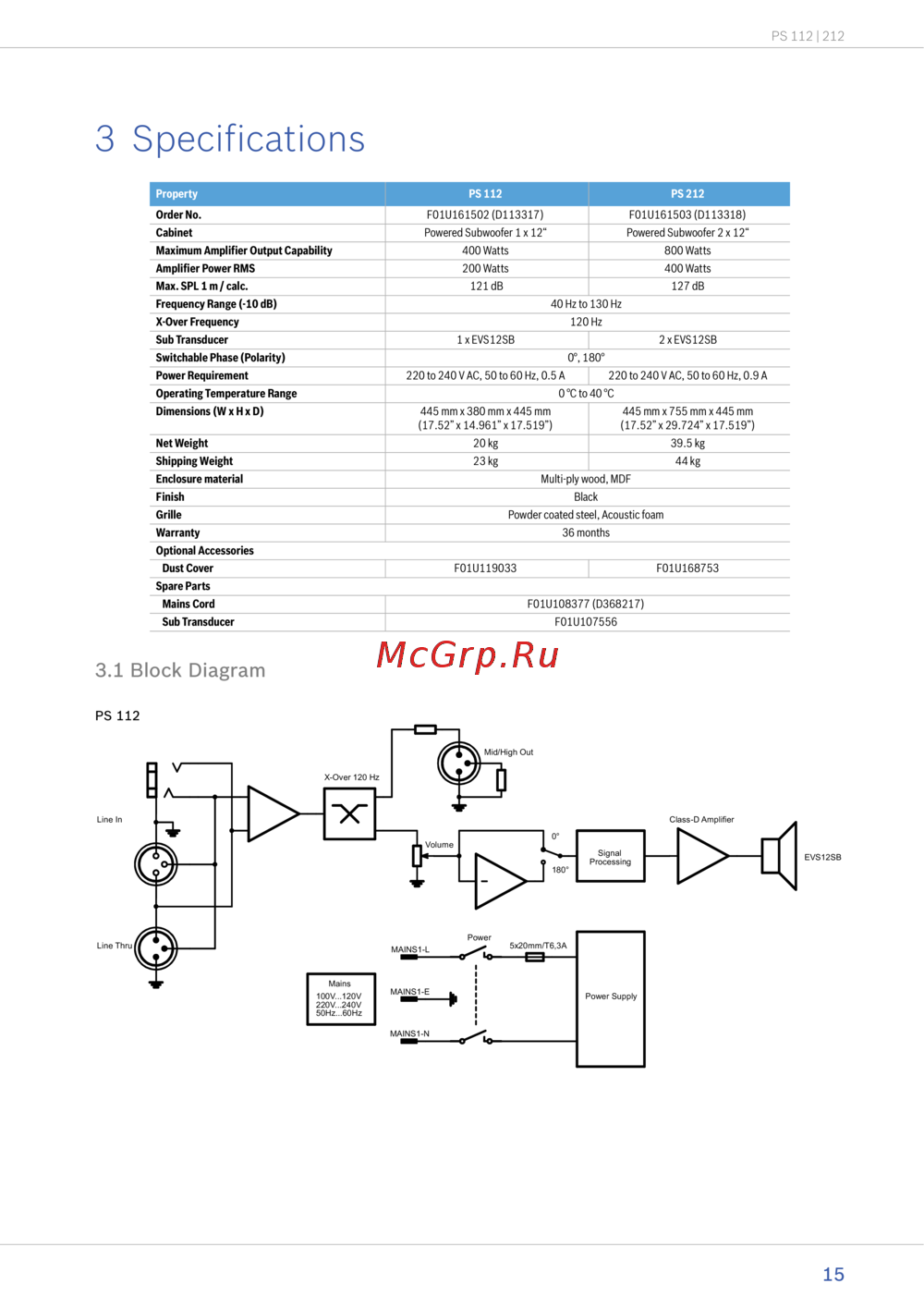

3 Specifications
3.1 Block Diagram
PS 112
Property PS 112 PS 212
Order No. F01U161502 (D113317) F01U161503 (D113318)
Cabinet Powered Subwoofer 1 x 12“ Powered Subwoofer 2 x 12“
Maximum Amplifier Output Capability 400 Watts 800 Watts
Amplifier Power RMS 200 Watts 400 Watts
Max. SPL 1 m / calc. 121 dB 127 dB
Frequency Range (-10 dB) 40 Hz to 130 Hz
X-Over Frequency 120 Hz
Sub Transducer 1 x EVS12SB 2 x EVS12SB
Switchable Phase (Polarity) 0°, 180°
Power Requirement 220 to 240 V AC, 50 to 60 Hz, 0.5 A 220 to 240 V AC, 50 to 60 Hz, 0.9 A
Operating Temperature Range 0 °C to 40 °C
Dimensions (W x H x D) 445 mm x 380 mm x 445 mm
(17.52” x 14.961” x 17.519”)
445 mm x 755 mm x 445 mm
(17.52” x 29.724” x 17.519”)
Net Weight 20 kg 39.5 kg
Shipping Weight 23 kg 44 kg
Enclosure material Multi-ply wood, MDF
Finish Black
Grille Powder coated steel, Acoustic foam
Warranty 36 months
Optional Accessories
Dust Cover F01U119033 F01U168753
Spare Parts
Mains Cord F01U108377 (D368217)
Sub Transducer F01U107556
Volume
0°
180°
Class-D Amplifier
Signal
Processing
Power Supply
5x20mm/T6,3A
Power
Mains
100V...120V
220V...240V
50Hz...60Hz
Line In
Line Thru
Mid/High Out
EVS12SB
X-Over 120 Hz
MAINS1-N
MAINS1-E
MAINS1-L
