Chapter 14: External and MIDI Control
142
Torq 2.0 User Guide
Relative Mode
Relative mode will ignore the playback position of the Control Vinyl or Control CD. Torq will only monitor
the direction and speed of the control source. To enable Relative mode on a Deck, click the Absolute mode but-
ton (ABS). The icon will change to REL indicating that Relative mode is now active (click the button again to
toggle back to Absolute mode).
In Relative mode, placing the needle in different locations on the record will have no effect on the mu-
sic—playback will resume from the point it left off as soon as the needle touches the record again.
Even though the playback position of the Control Vinyl or Control CD is not affecting the playback position
of the song on the Deck, the speed and direction of the control source will still continue to work. You can
change the playback speed using the pitch adjusters on your turntables or CD players and the playback speed
of the Deck will follow. You can even scratch like normal. The added benefit is that, should the needle skip a
groove while you’re scratching, you won’t lose the sound you were using. You can continue to scratch the
same location of the audio file even if the needle keeps skipping.
While there will be no audible change in music playback when switching a Deck from Absolute mode to Rel-
ative mode, there is a chance that the playback position could jump to an unanticipated position when
switching from Relative mode back into Absolute mode. This is due to the fact that, while using the features
of Relative mode, the playback position of the Deck and the actual location of the control source could fall out
of sync (for example, if you loop the song on the Deck, the song will no longer proceed forward but the loca-
tion of the control source will continue to play forward). When you switch back to Absolute mode, Torq will
immediately jump to the position indicated by the control source, even if it’s a position after the song has
ended. Therefore, be extremely careful when toggling back to Absolute mode. Only do so if (1) you know the
location of the song and control source are still in sync or (2) if you’ve “muted” the Deck before switching
over, to prevent any jumps from being heard by your audience.
Absolute Rotation Angle (ARA)
When scratching with a traditional record where the music “resides” on the vinyl itself, you can be certain
that a sound you want to scratch will always be in the same place. In other words, the location of the sound
or “hit point” is absolute. So long as the needle never skips to a position before or after the location, or to a
different physical groove, the hit will always play whenever the rotation of the record causes the needle to
cross that spot.
On the other hand, when using DJ software the location of the hit point can change for various reasons,
which can make it challenging to pinpoint the location of the sound, relative to the position of the vinyl. For
example, in relative mode picking up the needle will stop playback and the song position while the vinyl con-
tinues turning. When the needle is placed back on the vinyl, the song continues playing from the previous lo-
cation, even though the vinyl has turned some number of degrees.
ARA Button
Содержание
- Legal notices p.2
- Documentation feedback p.2
- Chapter 1 introduction to torq 2 p.3
- Welcom p.3
- Installatio p.3
- Chapter 3 torq 2 configuratio p.3
- Using torq 2 with window p.3
- Information shown on the displa p.3
- Chapter 2 software installatio p.3
- Traq morp p.3
- Hide mixe p.3
- Transport control p.3
- Four deck mode vs two deck mod p.3
- Activatio p.3
- Torq 2 feature p.3
- File lis p.3
- The browse p.3
- Effects fx p.3
- System requirement p.3
- Display p.3
- Speed slider speed p.3
- Deck switc p.3
- Crossfade p.3
- Setup assistan p.3
- Control deck mode p.3
- Product registratio p.3
- Contents iii p.3
- Pfl headphone cu p.3
- Contents p.3
- Mixer architectur p.3
- Chapter 7 the mixe p.3
- Master syn p.3
- Marker p.3
- Chapter 6 waveform displa p.3
- Main out sectio p.3
- Chapter 5 the deck p.3
- Loading songs onto the deck p.3
- Chapter 4 accessing your musi p.3
- Creating a snapsho p.4
- Sampler control p.4
- Control p.4
- Resolving playback issue p.4
- Polyphonic snapshot p.4
- Contents iv p.4
- Phase grid manipulation p.4
- Chapter 9 sample p.4
- Momentary vs latching behavio p.4
- Chapter 8 effect p.4
- Midi preference p.4
- Chapter 14 external and midi contro p.4
- Midi contro p.4
- Chapter 13 rewir p.4
- Master temp p.4
- Chapter 12 torq preference p.4
- Masking a snapsho p.4
- Chapter 11 synchronizatio p.4
- Locations preference p.4
- Chapter 10 snapshot p.4
- Vst preference p.4
- Gui preference p.4
- Built in effect p.4
- Vst effect p.4
- External preference p.4
- Behavior preference p.4
- Using snapshot p.4
- External control calibratio p.4
- Automatic tempo and phase detectio p.4
- External contro p.4
- Auto master deck selectio p.4
- Swapping snapshot p.4
- Duplicate snapsho p.4
- Audio routin p.4
- Snapshot lis p.4
- Delete snapsho p.4
- Audio preference p.4
- Signal sourc p.4
- Miscellaneou p.5
- Midi platter control mode and auto syn p.5
- Midi platter control mod p.5
- Deck command p.5
- Contents v p.5
- Chapter 15 midi platter contro p.5
- Browser command p.5
- Appendix c warrant p.5
- Appendix b torq vinyl control syste p.5
- Appendix a key command p.5
- Warranty term p.5
- Technical information and tips on torq s vinyl control syste p.5
- Welcome p.6
- Torq 2 features p.6
- Chapter 1 introduction to torq 2 p.6
- Using torq 2 with windows p.7
- System requirements p.7
- Screensaver and power options p.7
- Screen saver p.7
- Power options p.7
- Cleartype font usage in windows xp p.7
- Product registration p.8
- Conventions used in this guide p.8
- Macintosh os x p.9
- Installation p.9
- Chapter 2 software installation p.9
- Windows 7 vista and windows xp p.9
- To activate torq automatically p.10
- This option lets you register torq over the internet p.10
- There are two methods of activating torq as described below p.10
- Once you have completed the software installation torq must be activated and authorized using the avid ac tivation tool this tool can also be used to activate torq to run as a 30 day trial version p.10
- Choose internet activation and click next p.10
- Automatic activation p.10
- Activation p.10
- When you see the activated screen your copy of torq is activated and ready to use click finish and torq will continue to launch p.11
- Enter your serial number and system id in the respective text boxes your serial number and system iden tification number are located inside the enclosed torq 2 quick setup guide if you purchased torq online you received your serial number and system identification number from avid by e mail you can also view your serial number and system identification number by logging in to your support account p.11
- Click next and torq will connect to the internet and activate automatically p.11
- Manual activation p.12
- Day trial activation p.14
- Deactivating torq p.15
- When the deactivate screen appears click next to complete the deactivation process p.16
- Chapter 3 torq 2 configuration p.17
- Setup assistant p.17
- Manual setup p.17
- Internal mixer mode p.18
- Torq preselects the most common location for your music folder based on your operating system if the folder path displayed on the music library setup screen is correct click next p.20
- If you have itunes installed on your computer torq will preselect the default location of your itunes library based on your operating system if the folder path displayed on the itunes library setup screen is correct click next p.20
- External mixer mode p.21
- Torq preselects the most common location for your music folder based on your operating system if the folder path displayed on the music library setup screen is correct click next p.22
- If you do not see a listing for the midi device you want to use click the refresh device list button a warn ing screen will appear asking you to confirm that you want torq to scan for the missing midi device read the screen very carefully then click yes if you still want to refresh the device list once the process has com pleted and your device appears click next p.22
- Review the information displayed on the summary screen then click next if all the information listed is correct p.23
- If you have itunes installed on your computer torq will preselect the default location of your itunes li brary based on your operating system if the folder path displayed on the itunes library setup screen is cor rect click next p.23
- Click finish on the enjoy screen p.24
- The browser p.25
- Chapter 4 accessing your music p.25
- Snapshots p.26
- Database p.26
- Adding folders to database p.26
- Searching specific database folders p.27
- Adding multiple folders p.27
- Adding folders from your os p.27
- Removing folders from database p.28
- Files hard drives and cd s p.28
- Creating new crates p.28
- Crates p.28
- Renaming a crate p.29
- Removing songs from a crate p.29
- Adding songs to crates p.29
- Reordering songs in a crate p.30
- Duplicating a crate p.30
- Deleting a crate p.30
- Playlists p.31
- Deleting a playlist p.31
- Creating new playlists p.31
- Rename playlist p.31
- Reordering songs in a playlist p.32
- Removing songs from a playlist p.32
- Duplicating a playlist p.32
- Adding songs to a playlist p.32
- Activating a playlist p.32
- Saving a playlist p.33
- Session playlist p.34
- Loading a playlist p.34
- Rename the session playlist p.35
- Deleting session playlists p.35
- Sorting the list p.36
- File list p.36
- Editing fields p.36
- As you can see the above search worked it found songs that contained the word love in any category however this may not be quite what you were looking for you may have actually wanted files with love in the song s name only to search for such titles you ll need to confine the scope of the search to the song cat egory only p.37
- As soon as you start typing torq will begin searching the database for the letters you have typed there is no need to hit the enter key on your keyboard p.37
- You can hold shift and click additional categories if you wish i e you can select song and album simul taneously p.37
- When you stop typing you ll have a list of all files that contain the search term in one of its fields p.37
- Torq will refine its search results and only show songs that contain your search term within the selected field p.37
- To search the list p.37
- To confine a search to a particular category p.37
- The simplest method for searching is to type a keyword or keywords into the search field above the data base browser p.37
- Shift clicking a selected category will de select it p.37
- Searching the list p.37
- Search categories p.37
- Hold down the shift key and click a category name the category name will turn red p.37
- For example if you type the word love into the search field torq could return the following results p.37
- Click the database heading in the browser pane to select it p.37
- Click in the search field and type in your search term s terms can include an artist s name a song title bpm etc p.37
- Click to put a cursor in the ignore field p.38
- Clear button p.38
- Again using the example above entering the term lover into the ignore field will return the following list p.38
- You ll see that as a result i d rather be your lover has been removed from the list p.38
- When you are done with your search and are ready to begin a new one press the clear button this will clear the search and ignore fields as well as deselect any categories that had been previously selected p.38
- Using our example above confining the search to the song category would yield the following results p.38
- Type in the term you would like to filter out of the search p.38
- Torq will display only the songs that contain the information required in the search field while omitting the songs that fit the criteria of the ignore field p.38
- Torq offers another method for refining your searches by means of the ignore field here you ll enter terms that you want torq to omit from the search results the ignore command will only be applied to the currently selected categories explained above p.38
- To omit terms from the search results p.38
- Song preview p.38
- Once you have located and clicked on a song in the file list it can be previewed within the browser by press ing the preview button headphone icon on the left end of browser search bar pressing this button plays the song sending the audio signal through the pfl headphone cue to your headphones p.38
- Now only the songs with love in their titles are shown p.38
- Filter field p.38
- Chapter 5 the decks p.39
- Four deck mode vs two deck mode p.40
- The deck switch feature offers a set of key commands for assigning any deck to either side of your two deck hardware this lets you bring an assigned deck into focus as the target deck to be controlled by your hard ware this capability also extends to situations where you want or need to target and control any of the decks with a single hardware deck or with your computer keyboard and mouse p.41
- Once a deck has been selected torq lets you access and control numerous other functions on a per deck basis using additional key commands listed in appendix a under deck commands on page 153 p.41
- Deck switch p.41
- When the highlight deck assignment option is set to yes default on the gui page of the torq prefer ences the edge of currently targeted decks will be highlighted with a colored rectangle torq decks assigned to the left side of your controller are highlighted in green while decks assigned to the right side are high lighted in purple if a deck is highlighted in red it will be controlled by both sides of your hardware p.41
- The the table below lists key commands for assigning the decks to either side of an m audio xponent dj con trol surface however it is also important to remember that commands also bring the decks into focus when using your mouse and keyboard to control torq if you are using qualified third party hardware refer to the its documentation p.41
- Deck assignment p.42
- Loading songs onto the decks p.43
- Drag and drop to the waveform display p.43
- Drag and drop to a deck p.43
- Using the function keys p.44
- Unloading songs from the decks p.44
- Copying songs to other decks make double p.44
- Time remaining p.45
- Time elapsed p.45
- Song name p.45
- Overview waveform p.45
- Displays p.45
- Artist name p.45
- Advance p.46
- Transport controls p.46
- Play pause p.47
- Setting quickcues p.48
- Quickcue p.48
- Quantize loop and quickcue points button p.48
- Markers p.48
- Playing quickcues p.49
- Once you ve set a couple quickcue points all you have to do is click on the desired quickcue button and the deck will immediately jump to that location and begin playing if you set your quickcue points at key posi tions within the song you can immediately jump to different sections on the fly such as jumping ahead to a chorus or back to the intro p.49
- If you d like to clear all of the quickcues in a song click the clear button p.49
- Clearing quickcues p.49
- Loop out behavior p.50
- Loop in out p.50
- Quickloop p.51
- Loop on off p.51
- Control deck mode p.53
- Cdj mode p.53
- Vinyl mode p.53
- Hybrid mode p.54
- External control p.55
- Control inputs 1 though 4 p.55
- Sync button p.56
- Nudge buttons p.56
- Master sync p.56
- Master button p.56
- Auto master deck p.56
- Synq reference button p.57
- Speed slider speed p.58
- Speed range rng p.58
- Flatten tempo p.59
- Bpm display bpm p.59
- Automatic bpm detection p.59
- Divide tempo p.60
- Tap tempo p.60
- Multiply tempo p.60
- Manual tempo adjustment adj p.60
- Tempo anchors p.61
- Key lock p.61
- Fine tuning p.61
- Bpm entry p.61
- Midi slider knob control p.62
- Effects fx p.63
- Chapter 6 waveform display p.64
- Waveform p.65
- Phase grid p.65
- Information shown on the display p.65
- Hiding the phase grid p.65
- Marker display p.66
- Loop points p.66
- Maximize waveform view p.66
- Tempo anchors p.67
- Tap tempo p.67
- Cue points p.67
- Adding tempo anchors p.68
- Mixer architecture p.70
- Chapter 7 the mixer p.70
- Line input button p.71
- Channels p.71
- Gain mute p.72
- Eq kills p.72
- Pfl headphone button p.73
- Line input buttons p.73
- Channel volume faders p.73
- Source knob p.74
- Pfl headphone cue p.74
- Volume knob p.74
- Split button p.74
- Hide mixer p.75
- Input assign buttons p.76
- Crossfader curve p.76
- Crossfader p.76
- Traq morph p.77
- Direction button p.77
- Crossfader pfl headphone p.77
- Crossfader invert p.77
- Traq morph modes p.78
- Frequency p.78
- Triplet mode p.79
- Traq morph pre listening p.80
- Main out recorder p.81
- Level meter and limiter p.81
- Volume control p.81
- Main out section p.81
- Setting the record level p.82
- Recording p.82
- Filename p.82
- Chapter 8 effects p.83
- Enable button p.84
- Effects slots p.84
- Controls p.84
- Bypass button byp p.84
- Routing button p.85
- Amount knob amt p.85
- Tweak knob p.86
- Tweak button p.86
- Effects chains chain mode p.86
- Clearing all effects p.87
- Saving effect racks p.87
- Loading effect racks p.87
- United view p.88
- Triplet mode p.88
- Enable button p.89
- Built in effects p.89
- Amount knob routing button p.89
- Tap button p.90
- Reverb p.90
- Feedback knob fbk p.90
- Enable button p.90
- Amount knob and routing button p.90
- Flanger p.91
- Enable button p.91
- Delay rate knob and lfo button p.91
- Amount knob and routing button p.91
- Time knob p.91
- Freeze button p.91
- Phaser p.92
- Frequency freq lfo knob and button p.92
- Enable button p.92
- Dual filter p.92
- Amount knob and routing button p.92
- Frequency freq knob p.93
- Enable button p.93
- Distortion p.93
- Band pass bpf button p.93
- Amount knob and routing button p.93
- Mode button p.94
- Enable button p.94
- Drive sample rate srate knob p.94
- Amount knob and routing button p.94
- Strobe p.94
- Rate knob p.94
- Tweak knob p.95
- Reverse button p.95
- Reverse p.95
- Invert button p.95
- Enable button p.95
- Amount knob and routing button p.95
- Speed knob p.96
- Hpf button p.96
- Enable button p.96
- Beat reverse p.96
- Amount knob and routing button p.96
- Align knob p.96
- Brake button p.97
- Amount knob and routing button p.97
- Size knob p.97
- Resonator p.97
- Repeat p.97
- Enable button p.97
- Capture button p.97
- Release knob p.98
- Enable button p.98
- Compressor p.98
- Attack button p.98
- Amount knob and routing button p.98
- Vst effects p.99
- Selecting effects p.99
- Latency p.99
- Vst crash guard p.100
- Assigning controls p.100
- Vst preset management p.101
- Signal source p.102
- Chapter 9 sampler p.102
- Sampler controls p.103
- Record sample button p.103
- Play sample button p.104
- Loop sample button p.104
- Unload p.105
- Sample pitch knob p.105
- Sample pitch p.105
- Sample name window p.105
- Sample gain knob p.105
- Pitch double halve p.105
- Naming scheme for recorded samples p.105
- Save bank p.106
- Rename p.106
- Load bank p.106
- Looping a quickscratch p.107
- Loading samples onto decks quickscratch p.107
- Assign to deck buttons p.107
- Snapshot list p.108
- Creating a snapshot p.108
- Chapter 10 snapshots p.108
- Using snapshots p.109
- Masking a snapshot p.109
- Swapping snapshots p.110
- Momentary vs latching behavior p.110
- Duplicate snapshot p.110
- Delete snapshot p.110
- Polyphonic snapshots p.111
- Phase grid manipulations p.112
- Chapter 11 synchronization p.112
- Automatic tempo and phase detection p.112
- Adjusting with the mouse p.113
- Adjusting with nudge buttons p.113
- Adjusting with advance buttons p.113
- Sync button p.114
- Master tempo metronome p.115
- Master tempo led s p.115
- Auto master deck selection p.115
- Chapter 12 torq preferences p.116
- Audio preferences p.116
- Timestretch algorithm p.117
- Reset sample counter p.117
- Mixer mode p.117
- General p.117
- Autogain target rms p.117
- Hardware p.118
- Audio device p.118
- Sample rate p.118
- Hw buffer size in samples p.118
- Internal mixer mode channel assignments p.120
- Channel assignments p.120
- Auto detect audio midi devices p.120
- External mixer mode channel assignments p.121
- Refresh midi device list p.122
- Platter tolerance p.122
- Midi preferences p.122
- Midi devices p.122
- Internal p.122
- Scratch sensitivity p.123
- Nudge sensitivity p.123
- Midi stop behavior p.123
- Midi clock out in phase offset p.123
- External p.123
- Mbc midi beat clock p.124
- Applications for mbc p.124
- Setting up mbc output p.125
- Setting up mbc input p.125
- Midi led sync p.126
- External meter p.126
- Skip protection p.127
- Options p.127
- External preferences p.127
- Relative speed mode p.128
- Relative mode p.128
- Control type gen1 gen2 gen3 torq vinyl torq cd p.128
- Calibration p.128
- Power threshold p.129
- Lead in p.129
- Error index p.130
- Velocity p.130
- Position p.130
- Vst preferences p.131
- Scanning p.131
- Ignored plug ins p.131
- Directory p.131
- Transport mode p.132
- Mixing p.132
- Cue exclusivity p.132
- Behavior preferences p.132
- Traq morph filter style p.133
- Traq morph cut style p.133
- Eq low frequency p.133
- Eq high frequency p.133
- Effect signal flow p.133
- Synq reference p.134
- Traq morph style p.134
- Traq morph duck style p.134
- Reset speed slider on deck load p.135
- Load on deck while playing p.135
- Quickloop size p.136
- Quickloop behavior p.136
- Quickcues and looping p.136
- Quantize cue and loop points p.137
- Loop out behavior p.137
- Search itunes with database p.138
- Search ipod with database p.138
- Musical genre bpm p.138
- Database p.138
- Analysis bpm low and high limit p.138
- This page lists the locations of the various system and application folders used by torq if these locations are incorrect or if you have moved any of the folder torq lets you reset the file path by clicking the appropriate browse button and navigating to the proper location p.139
- Locations preferences p.139
- Visual scheme p.140
- Language p.140
- Highlight assigned decks p.140
- Gui preferences p.140
- Tooltips p.141
- Full default p.141
- Adjust p.141
- Master tempo p.142
- Chapter 13 rewire p.142
- Audio routing p.142
- Internal mixer mode p.143
- External mixer mode p.143
- Turntable or cd player p.144
- External control p.144
- Enabling vinyl cd control p.144
- Chapter 14 external and midi control p.144
- External control calibration p.145
- Velocity and position p.146
- Velocity p.146
- Position p.146
- Control type p.146
- Absolute mode p.146

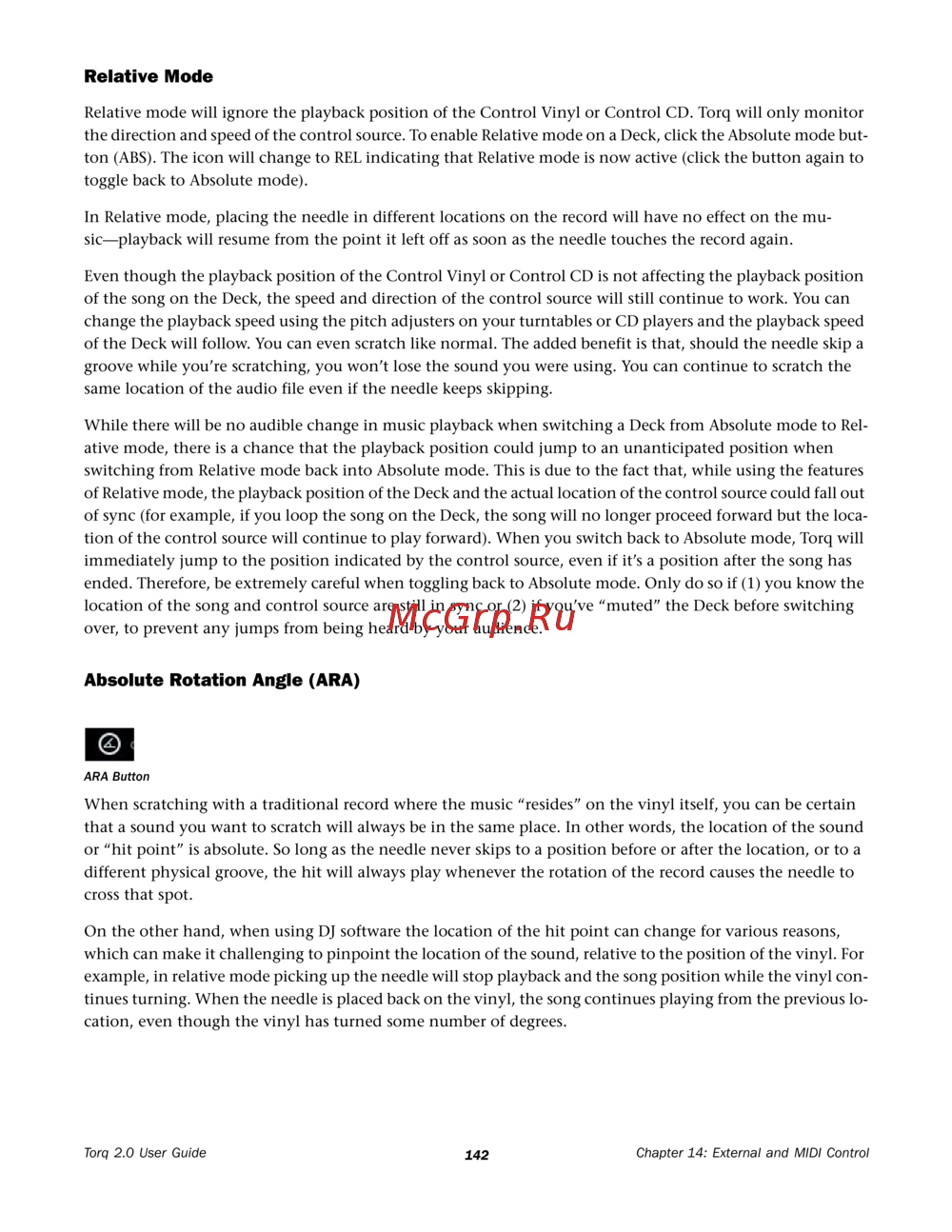

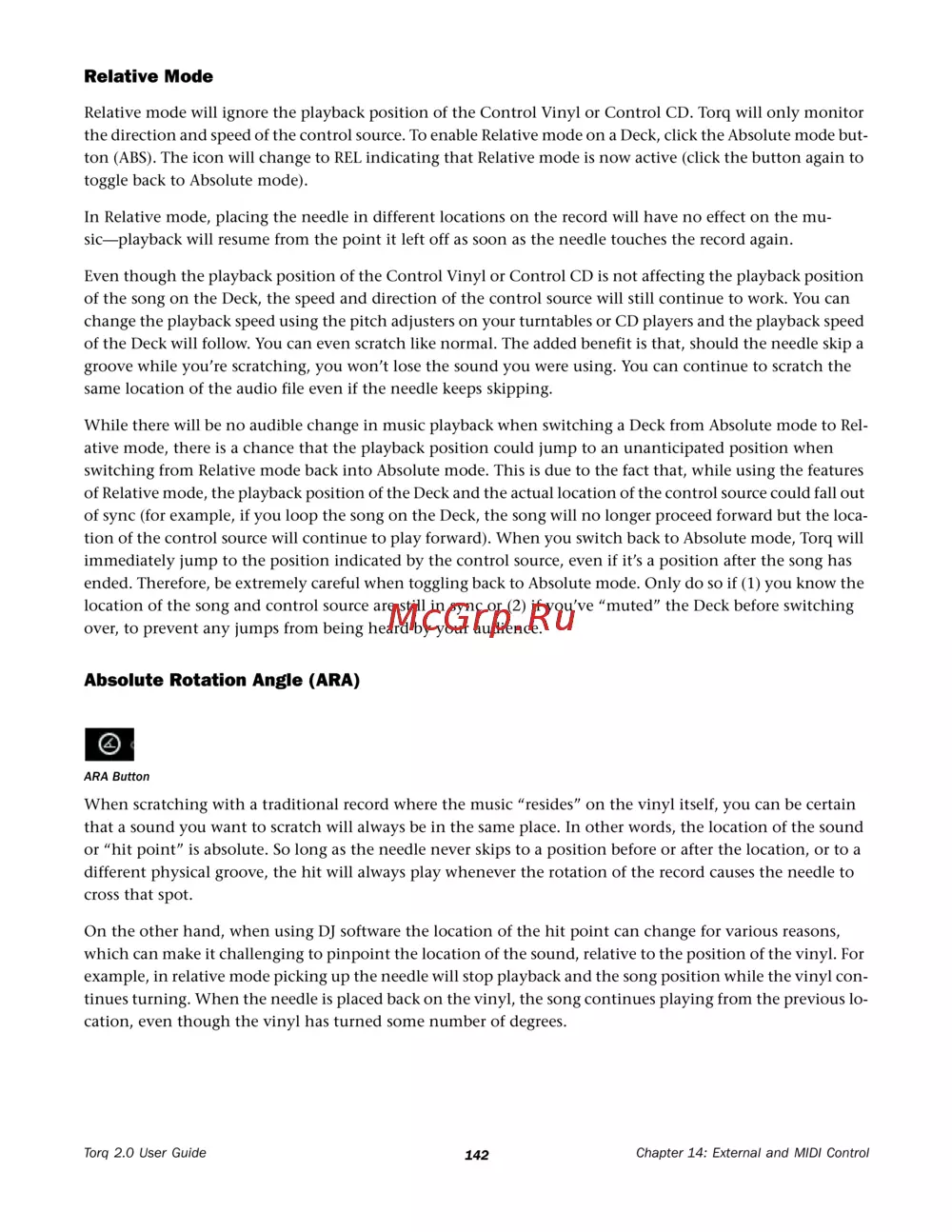

- Relative mode p.147
- Absolute rotation angle ara p.147
- Relative speed mode p.148
- Expanding the range of a hardware speed slider p.148
- Bpm matching p.149
- Runout protection p.150
- Reversed playback direction p.150
- Resolving playback issues p.150
- Erratic playback position p.150
- Error index p.151
- Power threshold controlling erratic velocity values p.151
- If the output level of your stylus cartridge is too low this can also result in high error index readings try re placing your stylus cartridge with one of the recommended models listed on our website at www avid com torqfaq p.152
- Midi learn p.153
- Midi control p.153
- Keyboard learn p.153
- Creating a midi assignment p.153
- Assigning knobs or sliders to buttons p.153
- Assigning buttons to knobs or sliders p.153
- Quitting midi learn p.154
- Clearing a midi assignment p.154
- Changing midi assignment p.154
- Scratch p.155
- Playback methods p.155
- Nudge mode p.155
- Midi platter control mode p.155
- Chapter 15 midi platter control p.155
- Untouched p.155
- Whenever synced deck is in midi platter control mode it can be used for scratching but the auto sync feature overrides nudge mode in order to keep the decks synchronized this synchronization is temporarily disabled whenever you use the platter for scratching p.156
- Midi platter control mode and auto sync p.156
- The following tables list mac and windows key commands for various torq 2 functions as listed below p.157
- Browser commands p.157
- Appendix a key commands p.157
- The the table below lists key commands for assigning the decks to either side of an m audio xponent dj con trol surface however it is also important to remember that commands also bring the decks into focus when using your mouse and keyboard to control torq if you are using qualified third party hardware refer to the its documentation p.158
- Deck selection p.158
- Deck commands p.158
- The following table list key commands for various deck related functions p.159
- Deck functions p.159
- Deck a p.159
- Deck b p.160
- Deck c p.161
- Deck d p.162
- Miscellaneous p.163
- Technical information and tips on torq s vinyl control system p.164
- How it works p.164
- By chad carrier p.164
- Appendix b torq vinyl control system p.164
- An introduction to vinyl tracking p.164
- Wreckin the records p.166
- Dust and dirt p.166
- Cue burn p.166
- Stereo separation p.167
- Poor frequency response p.167
- Ground hum p.167
- Wiring p.168
- Signal levels p.168
- Pitch phenomenon p.168
- Audio isolation p.168
- Always carry extra control vinyl p.169
- Use both sides of the control vinyl p.169
- Our lady pinky p.169
- Keep your hands clean p.169
- Best practices p.169
- Warranty terms p.170
- Avid warrants products to be free from defects in materials and workmanship under normal use and provided that the product is owned by the original registered user visit www m audio com warranty for terms and lim itations applying to your specific product p.170
- Appendix c warranty p.170
- Technical support usa p.171
- Product information p.171
Похожие устройства
-
M-Audio JamlabРуководство по эксплуатации -
M-Audio Drum & Bass RigРуководство пользователя -
M-Audio Drum & Bass RigКраткое руководство -
M-Audio HyperControlHyperControl for Reason -
M-Audio HyperControlHyperControl for Cubase -
M-Audio HyperControlHyperControl for Cubase Axiom Pro -
M-Audio HyperControlHyperControl for Ableton Live -
M-Audio HyperControlHyperControl for Pro Tools -
M-Audio HyperControlHyperControl for Logic Pro -
M-Audio Key RigРуководство пользователя -
M-Audio Key RigИнструкция по эксплуатации -
M-Audio Key RigРуководство по настройке
