ELECTRONIC CONTROLLER WORKING

1.1 Important

Carefully read these instructions before installation and use. Carefully adhere to all

warnings provided concerning installation, wiring and connection to the mains

electrical supply.

1.2 Installation

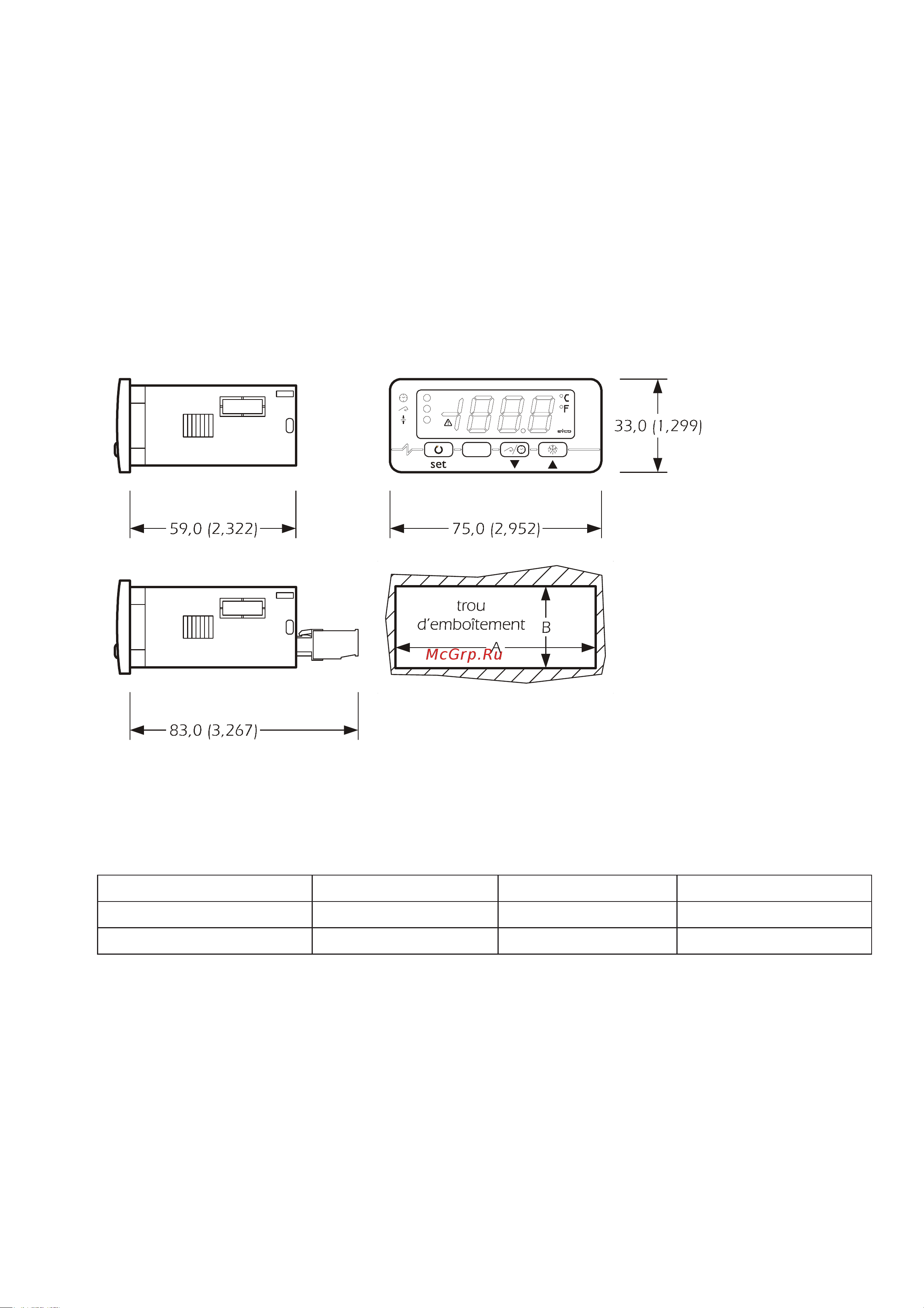

Panel with snap-on brackets provided; measurements in mm; measurements in mm.

The maximum depth is 89.5 mm whatever the type of connection and refers to

models with Faston connections (straight female Faston correctly inserted).

MEASUREMENT MINIMUM STANDARD MAXIMUM

A 71.0 71.0 71.0

B 29.0 29.0 29.8

Warnings when installing:

• 59.0 is the maximum depth with screw terminals

• 83.0 is the maximum depth with pull-out terminals

• panel thickness must not exceed 8.0 mm

• check that all work conditions (working temperature, humidity etc) are

within the limits provided in the technical specifications.

• do not install this system in proximity of heat sources (heating elements,

hot air outlets etc), equipment with powerful magnets (industrial and large sized
