INSTALLATION INSTRUCTIONS

Two persons are required for proper installation. A

qualified installer should be commissioned to make the

connection.

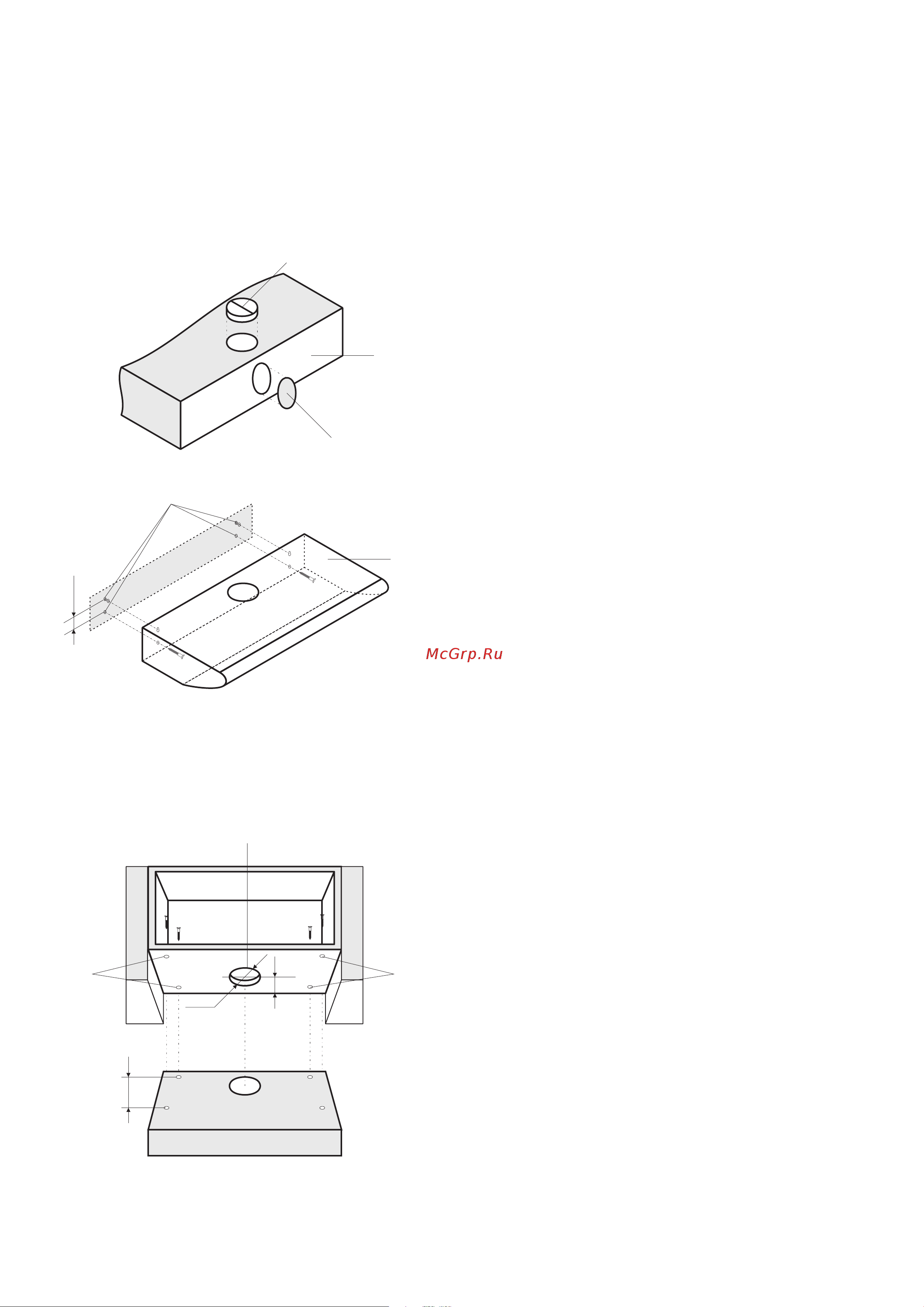

INSTALLATION OF THE COOKER HOOD

• Remove the grease filter before proceeding with

the assembly instructions (see p. 20). This will

make the appliance easier to handle.

• For an operation in air extractor mode set the V-

flap 1 concerning your requirements to the one of

two (top/ rear) exhaust outlets, another outlet

cove with a special plug

2. In odour absorber

mode both outlets should be opened.

• Trace a vertical line on the wall to indicate the

centre of the cooker plate. Place a hood body 3 to

the wall, set it symmetrically in relation to the

central line, the distance between its bottom side

and a

heating plate should be minimum of 650

mm (see p. 12).

Wall mounting

• Level the hood body horizontally. Mark the

installation openings 4 on the wall.

• Drill the holes as indicated on the wall, using drill

of 8 mm diameter. Drive the plugs in and then

hang the hood body on the

wall using 2 top

screws. Tighten the bottom screws.

Mounting under a wall unit

• For the air extractor mode of the cooker hood with

a vertical location of the vent conduit using the top

outlet, make an opening 5 of Ø 133 mm in the

bottom of the wall unit in advance

in accordance

with the drawing.

• Drill in the wall unit the holes 6 in predefined

places with a drill of Ø 6 mm. Fasten the cooker

hood with a 4 screws, operate inside of the wall

unit.

•If the cooker hood will be use in extractor mode it

is necessary

to mount a vent conduit of Ø 125 mm

on the fixed V-flap 1.

Ø 133

256
