ENGLISH

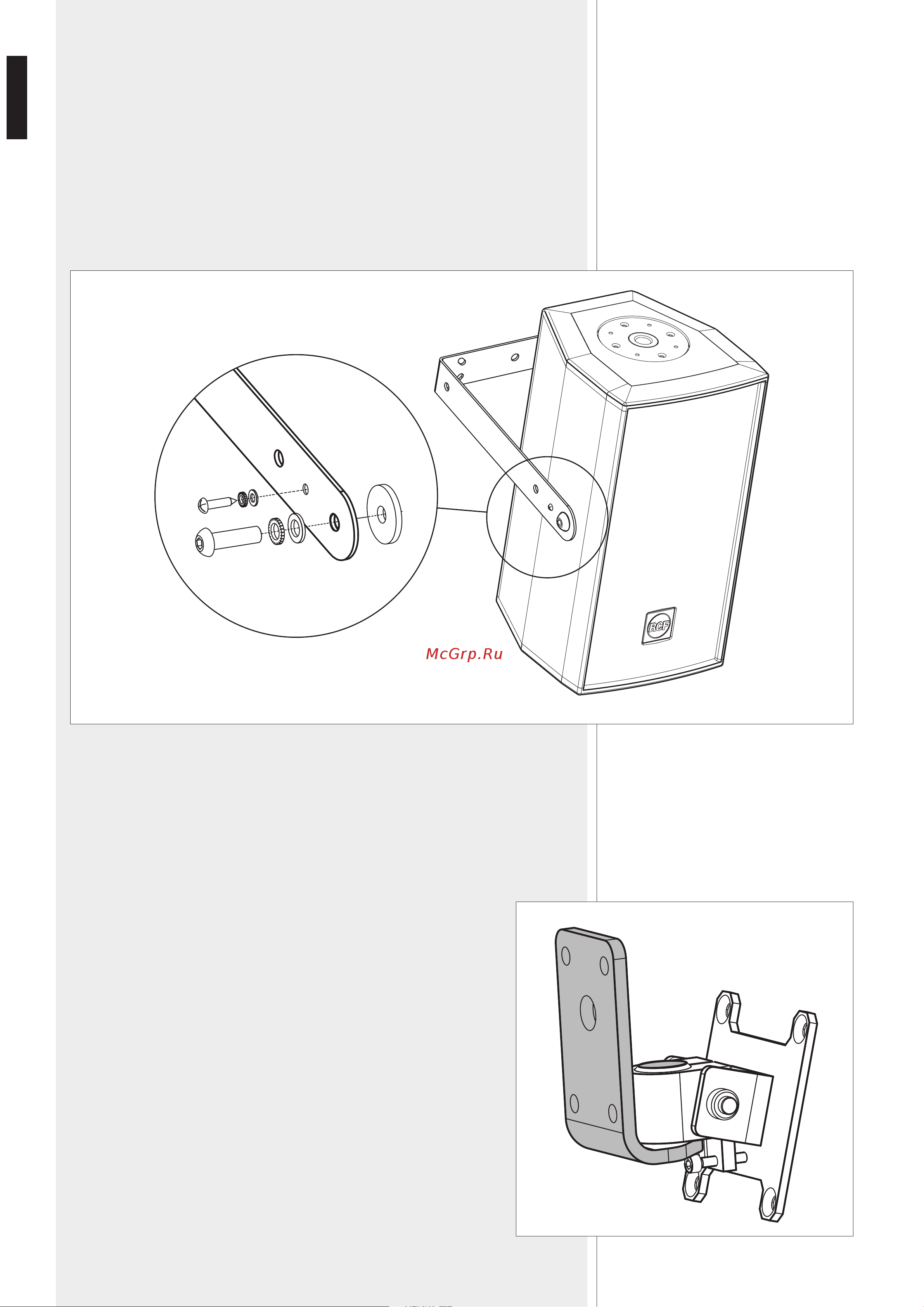

b) VERTICAL MOUNTING WITH U BRACKET

Necessary optional accessory:

- AC NC06 V-BR (for the C 3106-96 and C 3106-126 models)

- AC NC08 V-BR (for the C 3108-96 and C 3108-126 models)

- AC NC10 V-BR (for the C 3110-96 and C 3110-126 models).

Fix the U bracket to the wall / ceiling through at least 4 lateral wall plugs (max. M8) plus

a central one (max. M10).

Mount the U bracket to the loudspeaker by tightening the two M10x35 bolts into the two

lateral holes of the loudspeaker, as shown in the ﬁgure below.

As an alternative, it is possible to install the loudspeaker a bit less prominent, thanks to

the U bracket inner holes.

Before tightening the two M10 bolts, adjust the loudspeaker vertical tilt and then ﬁx it

through two M4.2x22 self-threading screws (passing through the small hole of the U

bracket) directly into the loudspeaker cabinet wood.

Note: do NOT tilt the loudspeaker upwards!

Instead of simple M10 bolts, it is possible to use the included knobs (having M10 bolts).

c) MOUNTING WITH A SWIVEL BRACKET

Necessary optional accessory: AC WM-C

Mount the ﬁxed part of the AC WM-C accessory (shown in grey in the

respective ﬁgure) to the wall through its corners with four M10 wall plugs.

The central hole of the ﬁxed part is useful to let pass the connecting cable

from the wall outlet.

AC WM-C
