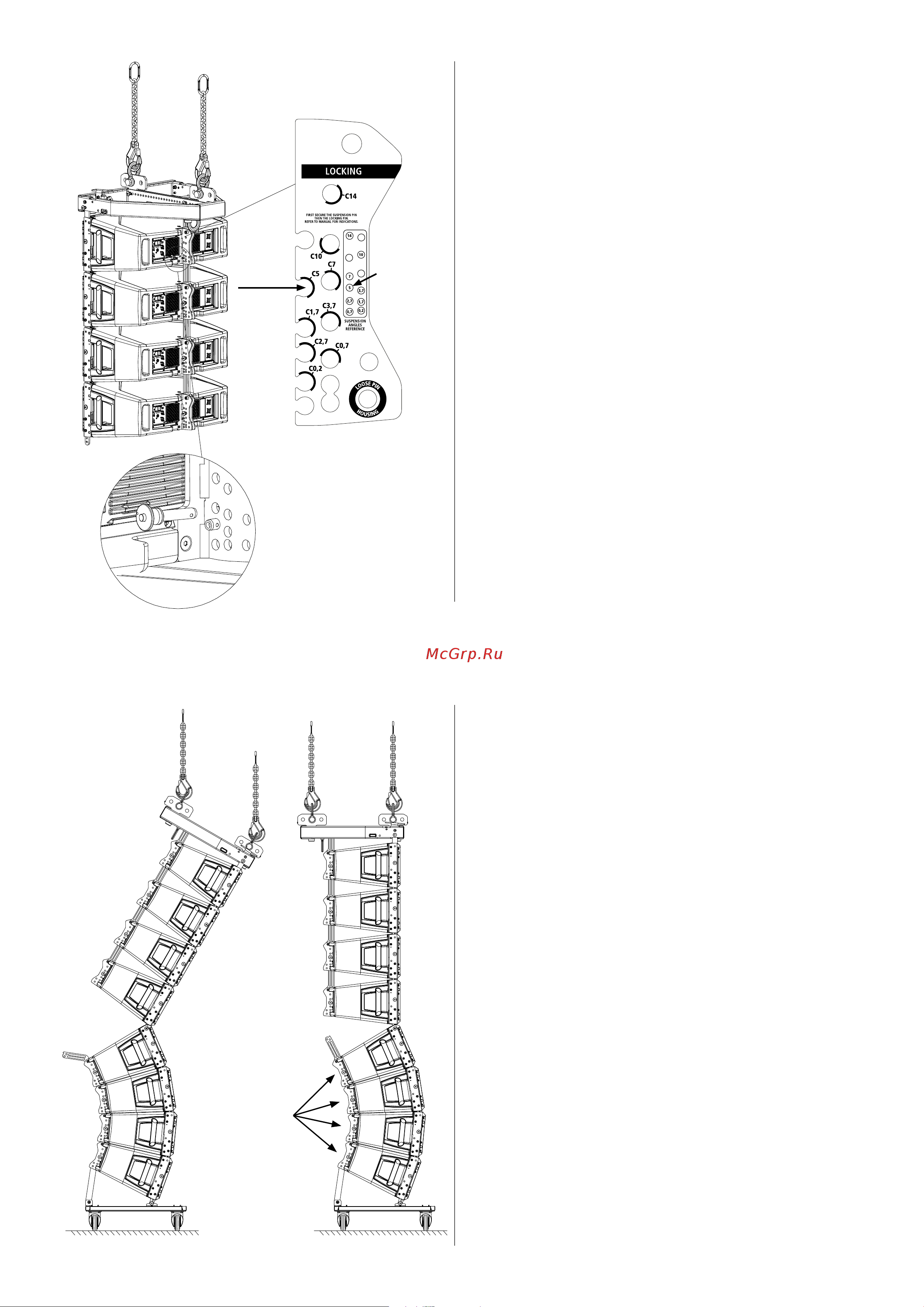

Stop lifting and insert and lock the second Locking

pins (Safety pins) to prevent the system from going

into compression shifting the tilt of the module, and

consequently of the cluster.

Insert the front locking pins in the proper hole. These are

2 additional pins do not load the weight of the system but

serve to maintain the ﬁxed angle between the modules

especially if they go into compression in very curved

systems

Pull out the front and rear pin from the cart and remove it

Remove all locking pins of the second cart cabinets and

preset the splay angles of all cabinets based on RCF Easy

Shape Designer software turning the rear bracket into the

upper module and inserting the pin in the proper position.

Fix the quicklock pin supplied with the speaker in the

proper hole in the front of the last speaker then lower the

height of the system in order to reduce the angle between

the speakers until they join.

SECURE THE

ANGLES WITH

THEIR RELATIVE

LOCKING PIN

SUSPENSION

ANGLE PIN 5°

LOCKING PIN

FOR SUSPENSION

PIN 5°
