The status of each isolated output is shown by a LED indicator also situated on top of the enclosure just
above the voltage figure. Operation of this advanced and unique monitoring feature is described in detail
later on.
Left side
On the left side of the enclosure you’ll find the AC power input connector, which is a C14 type according
to the IEC 60320 standard. On the same side as the AC mains input you’ll find the mains voltage selector
switch and fuse compartment. Mains voltage selector switch should be used for setting the correct mains
voltage 115 or 230V. The 115V setting gives you 110-120V operating range and the 230V setting 220-
240V range.
The fuse is the only part, which may be replaced by the user. In case it’s blown, replace with a 5x20mm,
T 630mA (slow blow/time lag) type. In the fuse compartment you’ll also find one extra replacement fuse.
Right side
On the right side you’ll find the AC mains courtesy outlet connector, which is a C13 type according to the
IEC 60320 standard. The current drawn from this outlet should not exceed 6A.
Bottom
The four detachable rubber feet are situated on the bottom of the enclosure. On this same surface you’ll
find 7 holes with metric M4 threads, which should be used for easy mounting of the power supply to a
pedalboard. Preferably use the included screws and do not use screws, which would go further than 5mm
inside the unit. Have a look at the mounting guide on CIOKS web site.
Getting started
First make sure that the voltage value chosen on the voltage selector switch matches the mains voltage in
your wall socket. Connect the mains power cord to the power supply and mains. Using the right Flex
cable types connect your pedals to the outlets of power supply making sure that the voltage and current is
correct for each pedal.
Advanced LED Monitoring feature
Each isolated outlet has its individual LED status indicator. The indicator is fully lit in normal operation
of a particular outlet. Its light gets dim when you operate just on the edge of the current limit. If you
overload or short circuit an outlet, the respective LED indicator turns off. If you overload outlet 10 the
LED indicator will be blinking and turns off at short circuit.
The LED indicators also show you the voltage set by the settings switch. If you select 12V instead of the
default 9V on one of the outlets 3-7, its respective LED indicator will be lit with higher intensity than the
other indicators.
All indicators take into account the actual level of mains voltage when monitoring a possible overload.
The current limits for each outlet or section of the power supply are specified at nominal level of the
mains voltage. In Europe it’s 230V and 120V in e.g. United States. If the mains voltage is higher than
nominal, you can draw more current from the power supply than stated in the specifications. This would
never be a problem. A more common situation though, is when the mains voltage is lower than nominal.
In such a case maximum current ratings for each outlet or section might be diminished.
The advanced LED monitoring of each isolated outlet will alert you in case of an overload or short
circuit. If such a situation happens you know where to look to solve the problem.
A glance at the LED status indicators and you have proof of 100% clean power to your pedals.
The adjustable outlet 10 and its current meter (mA-meter)
Voltage of outlet 10 can be set with the black knob just above its LED status indicator. While adjusting

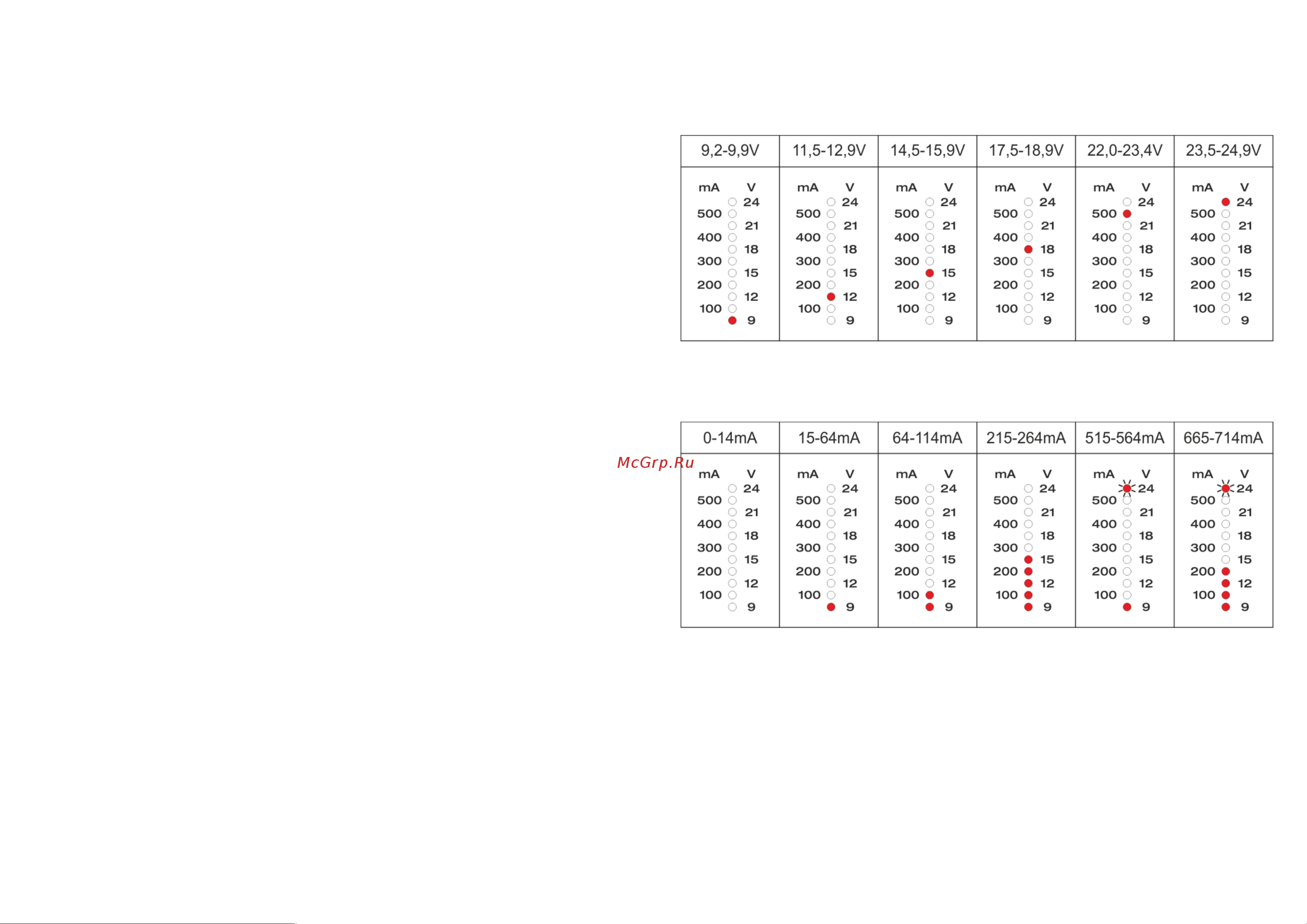

the voltage is displayed on the mA/V scale as a dot in the voltage mode. In the table below you can see
how different voltage settings are displayed in the voltage mode of the scale.
When you stop adjusting the voltage the readout on mA/V scale automatically switches to current mode
and displays the current drawn in from the outlet 10 as a bar in mA. The following table shows how
different current values are displayed on the scale.
The nominal max output power of outlet 10 is 7,2W. Outlet 10 is overloaded not when a certain current
limit is reached but when the output power exceeds approx. 8W. In 9V setting you can draw 800mA, at
12V the max. is 600mA and at 24V the current limit is 300mA. When you overload outlet 10 the big
status LED starts blinking but the output will operate normally in this overload mode. First when you
overload heavily and the output power exceeds approx. 9W outlet 10 will go into the shut-down mode
and will turn on and off periodically until you remove the excessive load.
Included accessories
Flex cables
CIOKS offers a great selection of different Flex cable types for connecting your pedals to the power
supply. The following list shows the included Flex cables with your unit:
• Type 1 – black with 5,5/2,1mm centre negative DC-plug x8
• Type 2 – red with 5,5/2,1mm centre positive DC-plug x1
