ELECTRO-VOICE

X-Line

Rigging Manual

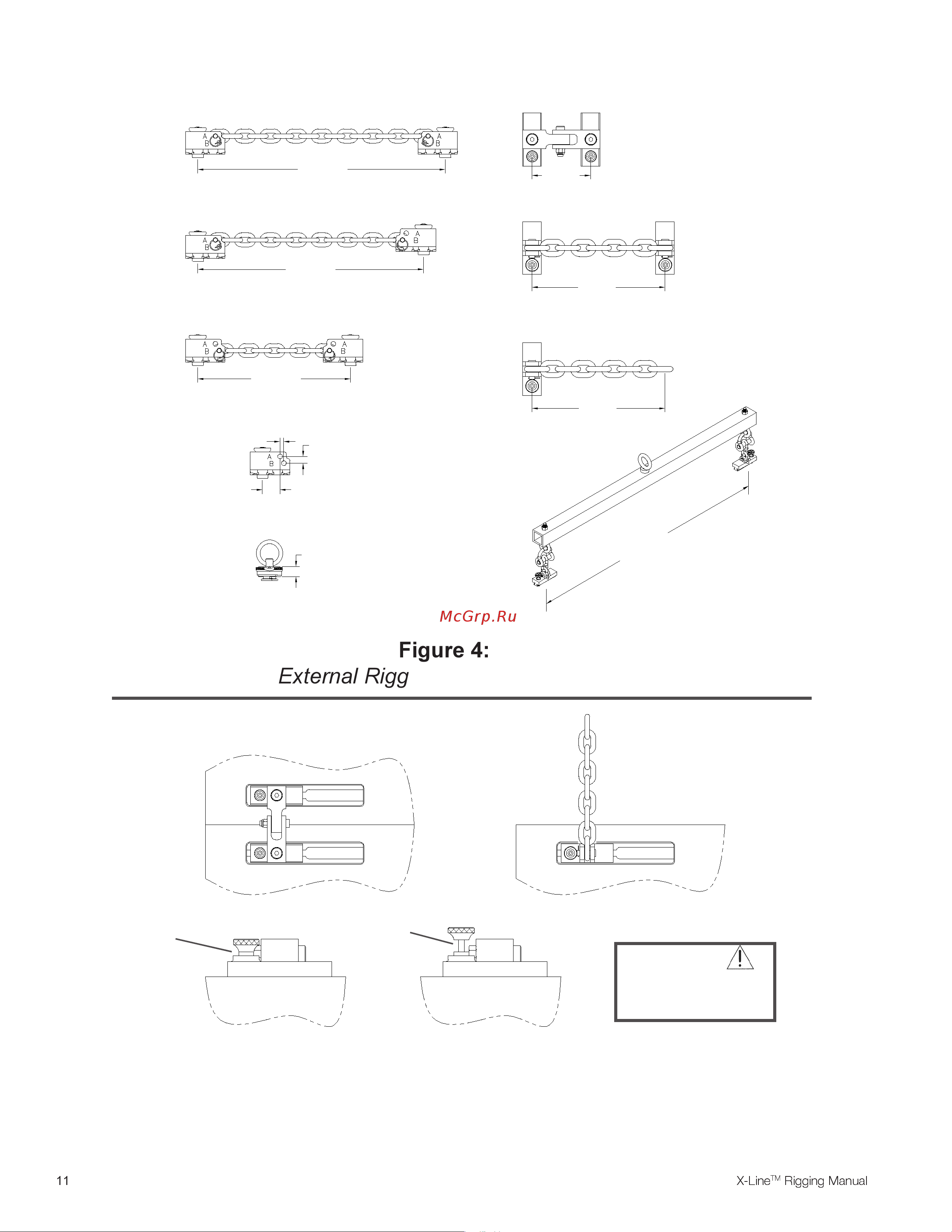

Figure 4:

External Rigging Hardware Details

Figure 5:

Rear Rigging Hardware Installation Details

Xvhl Linking Hinge

Xvhg Grid Hinges,

Xvhp Pickup Hinges,

or Xvbp Pull-Up Bar

CAUTION

Hinge Locking Pins Must

be Fully Engaged In Track

Before Lifting Overhead

16.375in

(416mm)

Xvsl Front Linking Strap 2.5lb (1.1kg)

(A-A Configuration Shown)

14.683in

(373mm)

Xvsd Front Downfill Strap 2.4lb (1.1kg)

(A-B Configuration Shown)

10.105in

(257mm)

Xvsg Front Grid Strap 2.1lb (1.0kg)

(B-B Configuration Shown)

Xvsf Front Fitting 0.9lb (0.4kg)

0.250in (6.4mm)

0.445in (11.3mm)

1.152in (29.3mm)

RS-1B Double-Stud Fitting 0.4lb (0.2kg)

0.875in

(22.2mm)

Xvhl Rear Linking Hinge 3.1lb (1.4kg)

Xvhg Rear Grid Hinge 2.7lb (1.2kg)

Xvhp Pick-Up Hinge 1.7lb (0.8kg)

Xvbp Pull-Up

Bar Assembly

22.9lb (10.4kg)

3.880in

(98.6mm)

8.804in

(224mm)

39.42in

(1001mm)

8.804in

(224mm)

INCORRECT

CORRECT
