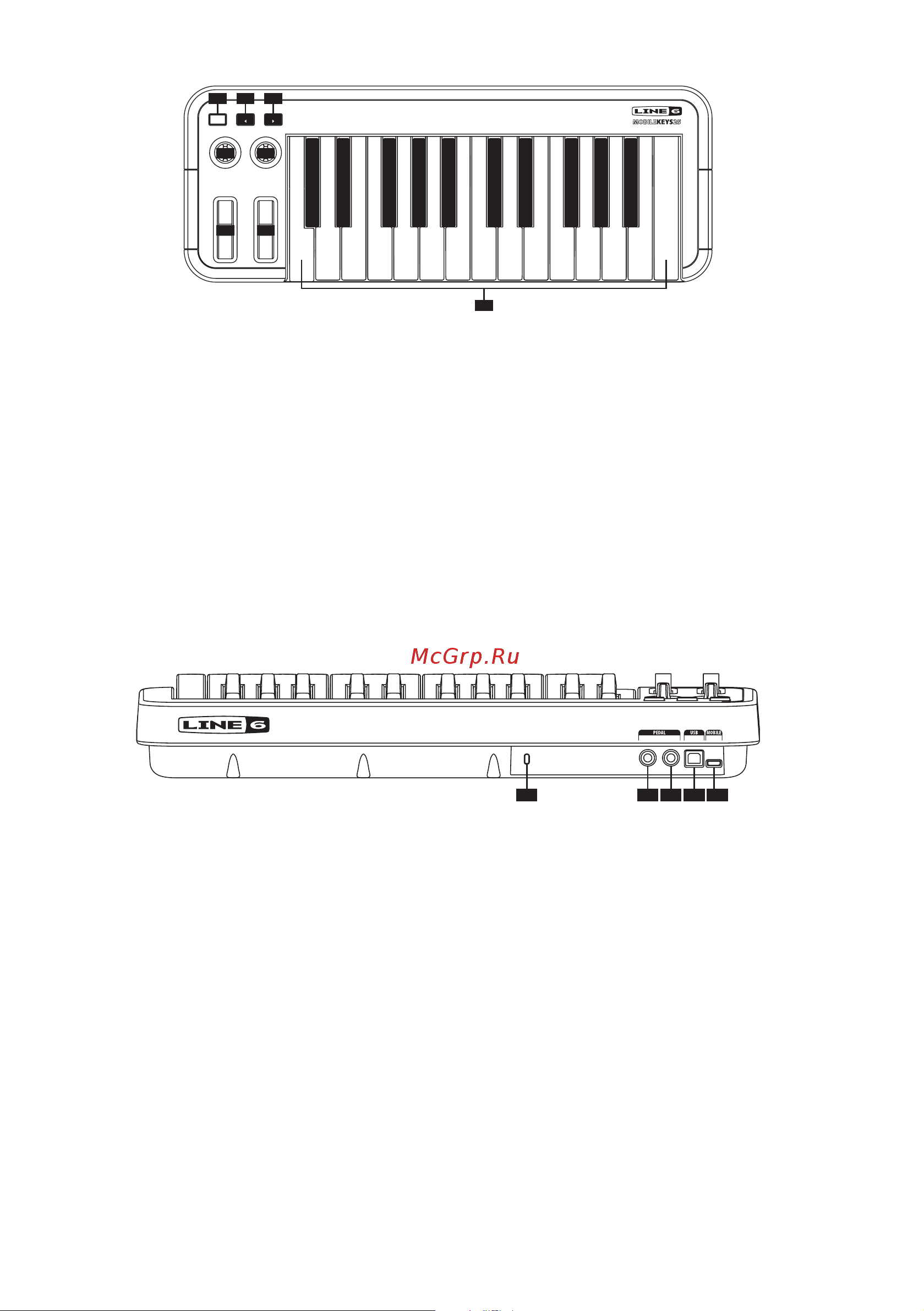

Front Panel

VOLUME PAN

PITCH MOD

-1 +1

SHIFT

OCTAVE OCTAVE

5 6

7 8

32 4

1. Keyboard – 25 or 49 full size velocity sensitive keys

2. SHIFT Button – Accesses SHIFT functions – See Advanced Operation section

3. OCTAVE < Button – By default, transposes keyboard down one octave. With SHIFT pressed,

transposes keyboard -1 semitone

4. OCTAVE > Button – By default, transposes keyboard up one octave. With SHIFT pressed,

transposes keyboard +1 semitone

5. VOLUME Knob – By default, controls volume with MIDI controller 7*

6. PAN Knob –

By default, controls stereo pan position with MIDI controller 10*

7. PITCH Wheel –

By default, bends note pitch with MIDI Pitch Bend message

8. MOD Wheel – By default, controls modulation amount with MIDI controller 1*

rear Panel

9 10 11

EXPRESSIONSUSTAIN iOSMAC/PC

12 13

9. Kensington Lock – To secure a Mobile Keys unit, attach a Kensington Lock here.

10. Sustain Input – Connect a standard sustain footswitch for sustain control with MIDI controller

64* (Auto-sensing jack supports both ‘normally open’ and ‘normally closed’ footswitches)

11. Expression Input – Connect a standard continuous pedal for expression control with MIDI

controller 11*

12. USB –

To use Mobile Keys with a Mac or PC, connect a standard USB A-B cable here.

13. Mobile –To use Mobile Keys with an iPod touch, iPhone, or iPad, connect the supplied cable

here.

*Exact effect of MIDI messages depends on app and instrument design. Default MIDI controller numbers

can be reassigned using SHIFT settings.
