StageScaPe m20d—Large Pa

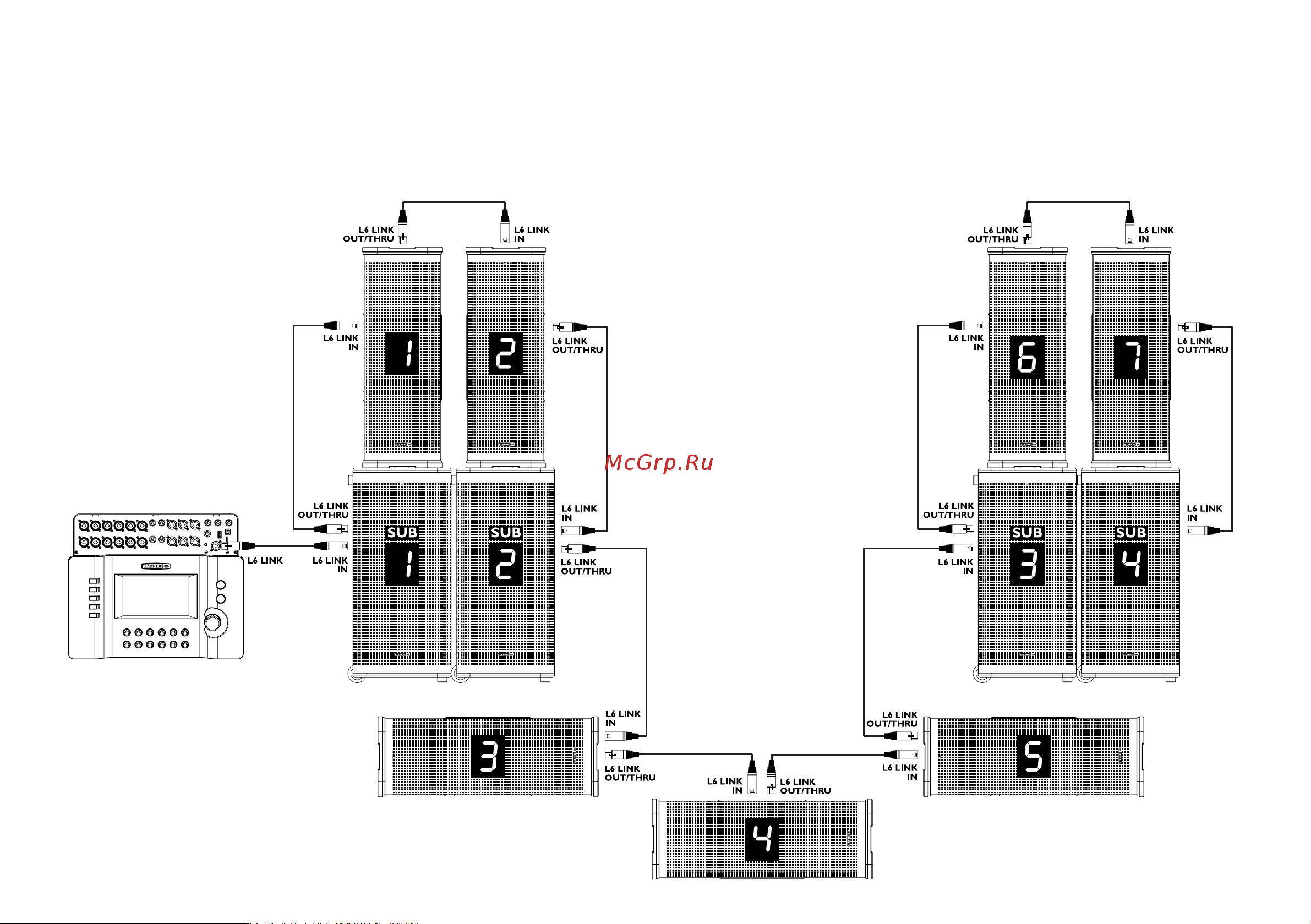

Intheillustrationbelow,fourL3ssubs(labeledSUB1-4)andsevenL3t/L3mspeakers(independentlynumbered1-7)aredaisy-chainedfromanM20d
mixer.Thesubsanduprighttowersautomaticallycongurethemselvestobeapowerfulstereomainssystem.L3t/L3mspeakersontheirside(numbers
3,4,and5)automaticallycongurethemselvesasstagemonitors,andplaymonitorfeedA,B,andCrespectively.
YoucanalsoreassignanyspeakerfromtheM20dtouchscreen.
