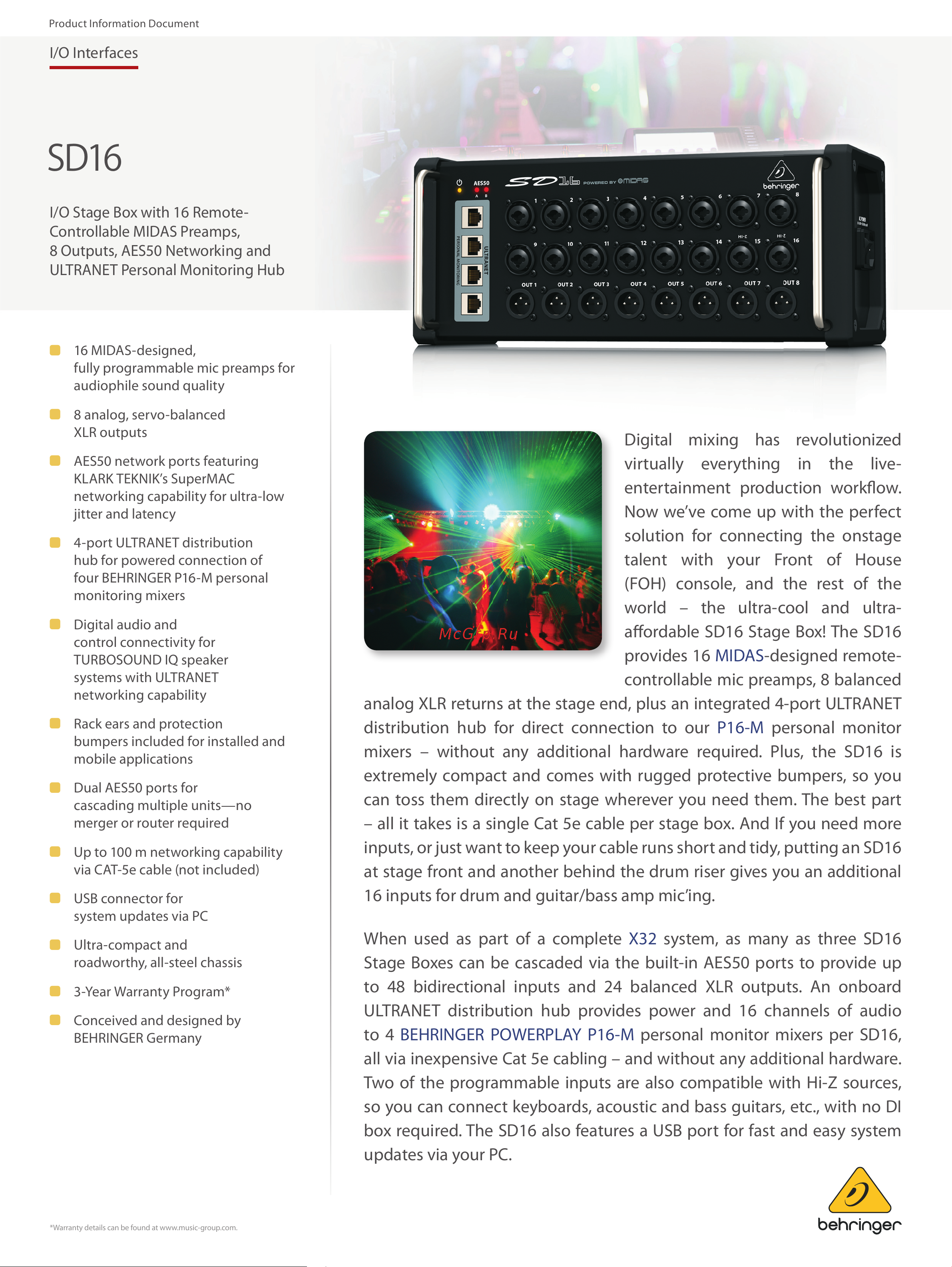

Product Information Document
I/O Interfaces
SD16
I/O Stage Box with 16 Remote-
Controllable MIDAS Preamps,
8 Outputs, AES50 Networking and
ULTRANET Personal Monitoring Hub
*Warranty details can be found at www.music-group.com.
#
16 MIDAS-designed,
fully programmable mic preamps for
audiophile sound quality
#
8 analog, servo-balanced
XLR outputs
#
AES50 network ports featuring
KLARK TEKNIK’s SuperMAC
networking capability for ultra-low
jitter and latency
#
4-port ULTRANET distribution
hub for powered connection of
four BEHRINGER P16-M personal
monitoring mixers
#
Digital audio and
control connectivity for
TURBOSOUND IQ speaker
systems with ULTRANET
networking capability
#
Rack ears and protection
bumpers included for installed and
mobile applications
#
Dual AES50 ports for
cascading multiple units—no
merger or router required
#
Up to 100 m networking capability
via CAT-5e cable (not included)
#
USB connector for
system updates via PC
#
Ultra-compact and
roadworthy, all-steel chassis
#
3-Year Warranty Program*
#
Conceived and designed by
BEHRINGER Germany
Digital mixing has revolutionized
virtually everything in the live-
entertainment production work ow.
Now we’ve come up with the perfect
solution for connecting the onstage
talent with your Front of House
(FOH) console, and the rest of the
world – the ultra-cool and ultra-
a ordable SD16 Stage Box! The SD16
provides 16 MIDAS-designed remote-
controllable mic preamps, 8 balanced
analog XLR returns at the stage end, plus an integrated 4-port ULTRANET
distribution hub for direct connection to our P16-M personal monitor
mixers – without any additional hardware required. Plus, the SD16 is
extremely compact and comes with rugged protective bumpers, so you
can toss them directly on stage wherever you need them. The best part
– all it takes is a single Cat 5e cable per stage box. And If you need more
inputs, or just want to keep your cable runs short and tidy, putting an SD16
at stage front and another behind the drum riser gives you an additional
16 inputs for drum and guitar/bass amp mic’ing.
When used as part of a complete X32 system, as many as three SD16
Stage Boxes can be cascaded via the built-in AES50 ports to provide up
to 48 bidirectional inputs and 24 balanced XLR outputs. An onboard
ULTRANET distribution hub provides power and 16 channels of audio
to 4 BEHRINGER POWERPLAY P16-M personal monitor mixers per SD16,
allvia inexpensive Cat 5e cabling – and without any additional hardware.
Two of the programmable inputs are also compatible with Hi-Z sources,
so you can connect keyboards, acoustic and bass guitars, etc., with no DI
box required. The SD16 also features a USB port for fast and easy system
updates via your PC.
